Step 1. Connect The Adsl Cable - SMC Networks Barricade SMC7401BRA User Manual

Quick Start
Wall Jack

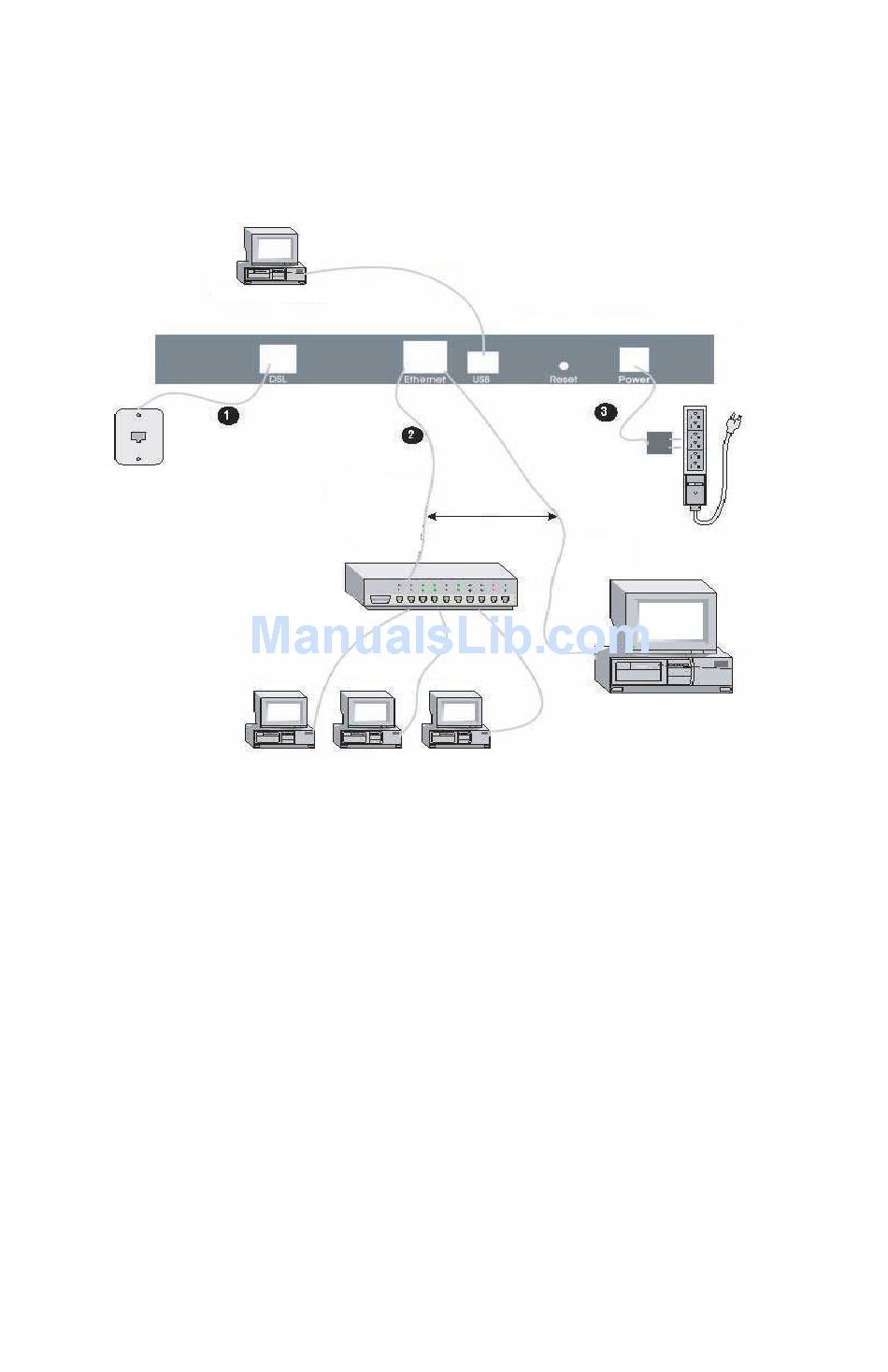

Figure 1. Overview of Hardware Connections

Step 1. Connect the ADSL cable

Connect one end of the provided phone cable (RJ-11) to the port
labeled DSL on the Rear Panel of the device. Connect the other
end to your wall phone jack.
You can attach a telephone line to the device. This is helpful
when the ADSL line uses the only convenient wall phone jack.
If desired, connect the telephone cable to the port labeled Phone.
Warning:
8
(See section on installing USB
driver before connecting cable)
Stand-alone computer
To a hub: use cross-
over cable to uplink
port or straight cable
to standard port
Hub/switch (for local
area network)
Networked Computers
Although you use the same type of cable, the ADSL
and Phone ports are not interchangeable. Do not
route the ADSL connection through the Phone port.
ADSL Barricade
AC adapter
or
To a PC: use a
cross-over cable
Stand-alone computer
