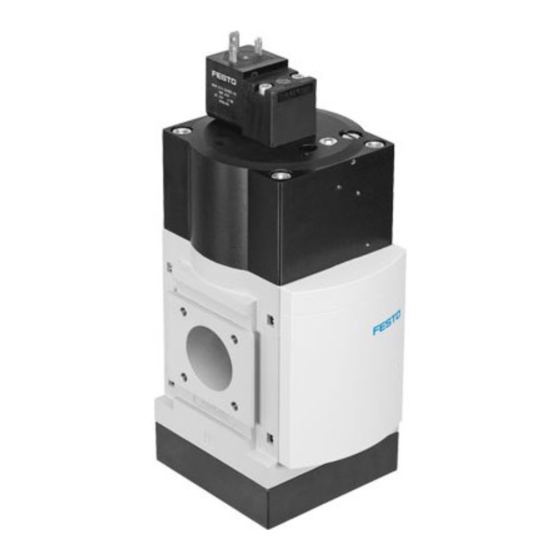

Festo MS9-SV-10V24P Operating Instructions

Soft-start/quick exhaust
valve MS9-SV-...-C
Operating instructions
Original: de

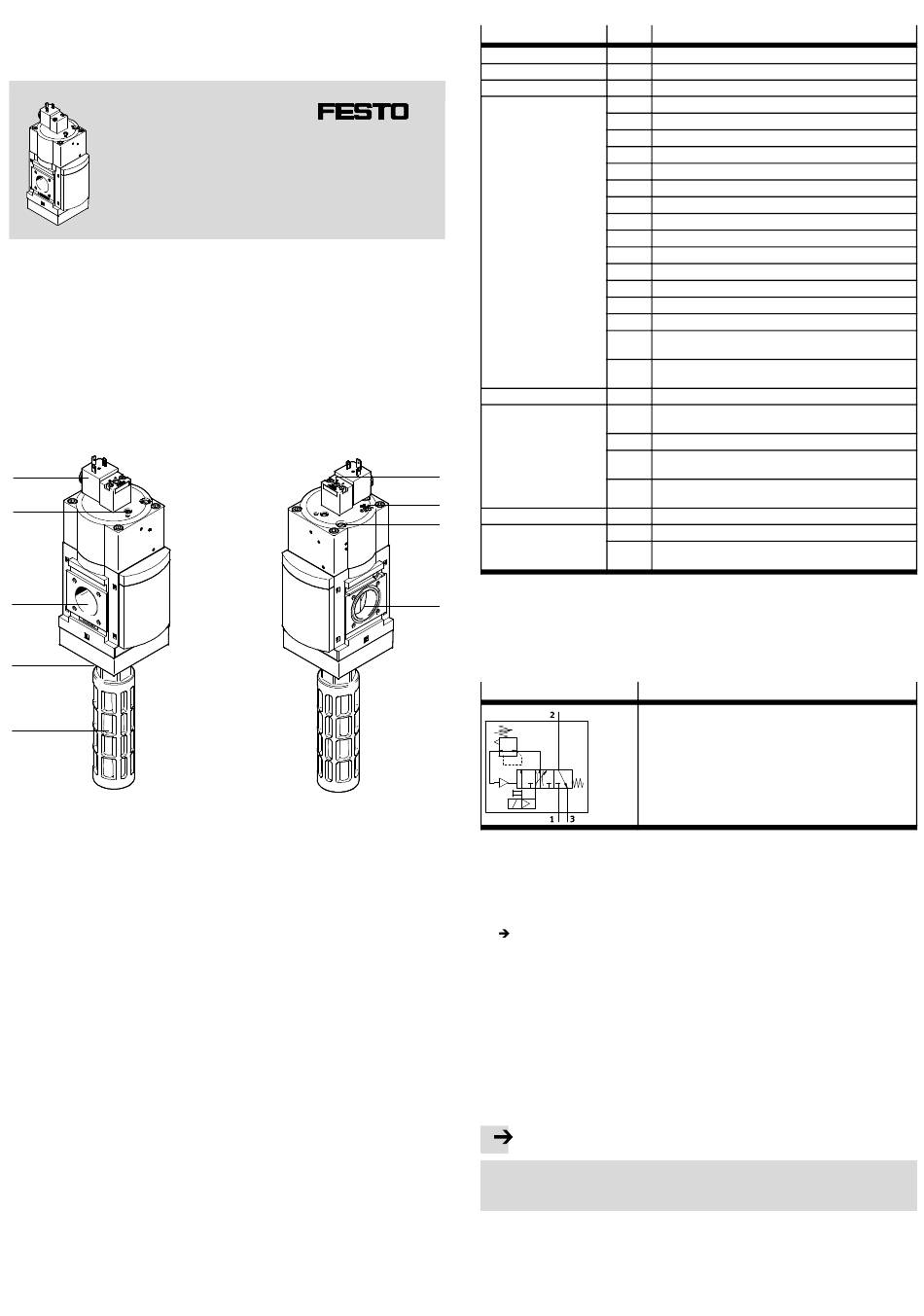

Soft-start/quick exhaust valve MS9-SV-...-C
1 Product description
1.1 Operating elements and connections
1
2
3
4
5
1
Pilot solenoid valve
2
Manual override at the soft-start/
quick exhaust valve
3
Pneumatic port 1 (compressed air
inlet)
4
Pneumatic port 3 (exhaust)
5
Silencer
Fig. 1 Control sections and connections
Festo AG & Co. KG
Postfach
D-73726 Esslingen
+49 711 347 0
www.festo.com
8004379
1205NH
. . . . . . . . . . . . . . . . . . . . . . . . English
6
Manual override at the pilot solen-
oid valve
7
Flow control screw for setting the
filling time
8
Adjusting screw for setting the
pressure switching point
9
Pneumatic port 2 (compressed air
outlet)
1.2 Characteristics
Characteristics
Series
Size
Function
Connection size
Performance level
Supply voltage
6
7
Options
8 Tamper protection
Fig. 2 Overview of variants
9
2 Function and application
The electro-pneumatic soft-start/quick exhaust valve MS9-SV-...-C is intended for
fast pressure reducing as well as pressure reducing in pneumatic piping systems
and terminals in industry.
Symbol
Fig. 3 Circuit symbol of the functions
The product is intended for installation in machines or automated systems and
may be used only in the following ways:
– in industrial applications
– within the limits of the product defined through the technical data
( 13 Technical data)
– in its original status, without unauthorised modifications
– in perfect technical condition
2.1 Foreseeable misuse
Foreseeable misuse includes:
– use outdoors
– use as a press safety valve
– use in the non-industrial area/residential area
– use outside the limits of the product defined in the technical data
– unauthorised modifications
– use in reversible operation (reversal of supply and exhaust air)
– "low demand mode" in accordance with EN 61511 or vacuum operation
Note
In the event of damage caused by unauthorised manipulation or use other than
that intended, the guarantee is invalidated and the manufacturer is not liable for
damages.
Type Specification
MS Standard service unit
9 Grid dimension 90 mm
-SV Soft-start/quick exhaust valve
-3/4 Thread G¾
-1 Thread G1
-AGD Connecting plate G½
-AGE Connecting plate G¾
-AGF Connecting plate G1
-AGG Connecting plate G1¼
-AGH Connecting plate G1½
-N3/4 Thread N¾
-N1 Thread N1
-AQR Connecting plate N½
-AQS Connecting plate N¾
-AQT Connecting plate N1
-AQU Connecting plate N1¼
-AQV Connecting plate N1½
-G Module without connecting thread, without connecting
plate
-NG Module without connecting thread, without connecting
plate (connection 3 in NPT)
-C in accordance with EN ISO 13849-1
-V24 24 V DC (connection arrangement in accordance with
EN 175301)
-10V24P 24 V DC (M12 in accordance with IEC 61076-2-101)
-V110 110 V AC (connection arrangement in accordance with
EN 175301)
-V230 230 V AC (connection arrangement in accordance with
EN 175301)
-S Silencer
-MH Cover – only manual override (MO)
-MK Cover – adjusting screws pressure switching point (PSP)
and main throttle (MT), manual override (MO)
Function
Soft-start/quick exhaust valve, electro-pneumatically
actuated
