To connect to a TripSaver II Controller module to apply your new settings, follow the
steps below.

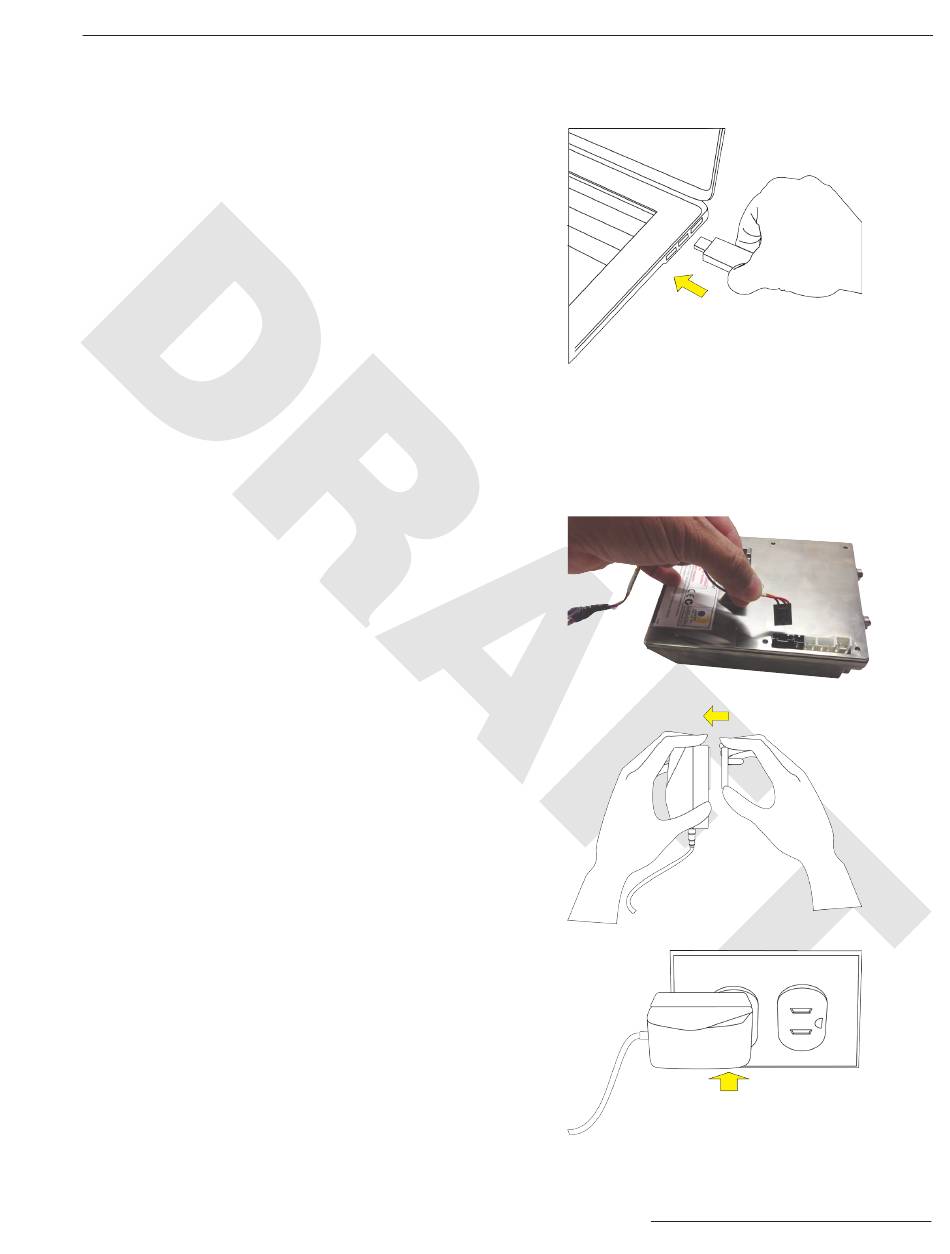

Step 1
Install USB Transceiver
A USB Transceiver must be installed on
your computer to communicate with a
TripSaver II Controller Module. Insert the
USB Transceiver into any USB port on your
computer. The installation process should
be automatic. Note: You do not need the
USB transceiver to be installed to install
the software and to run the software in
Standalone (Offline) mode.
Step 2
Assemble Power Supply and Power Up TripSaver II Controller Module
A TripSaver II Controller Module must be powered by the power module to enable
its communication capability. Complete the following steps before attempting to
communicate with your TripSaver II Controller Module.
(a) Insert the connector from the power
module onto the pins in the TripSaver II
Controller Module as shown in the
(b) Install the proper power outlet plug
adapter onto the AC adapter.
(c) Plug the AC adapter into a wall outlet.

Connect to a TripSaver II Controller Module

S&C Instruction Sheet 461-506 5
