Physical Hub Installation; Communication Hub Adapter Plate Insatllation - Assa Abloy Aperio Installation & Integration

Physical Hub
Installation
Communication
Hub
Adapter Plate
Installation
Communication Hub
plugs
box
Switch Box Assembly
Copyright © 2011, ASSA ABLOY All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY is prohibited.
To install the Communication Hub, follow the following steps:
Note
: Complete all Wiegand and DIP switch configuration prior to installing the
Communication Hub.
1. Remove the plugs from the interior of the mounting plate.
2. Secure the Communication Hub to the box with two screws.
Note
: The square box assembly requires a plaster ring to be secured to the box prior to
securing the mounting plate to the assembly.
3. Place the plugs in the through holes of the mounting plate.
4. Place the Communication Hub on top of the adapter plate.
5. Insert two screws in the through holes of the Communication Hub.
screws
mounting plate
screws
Square Box Assembly
plaster ring
Octagon Box Assembly

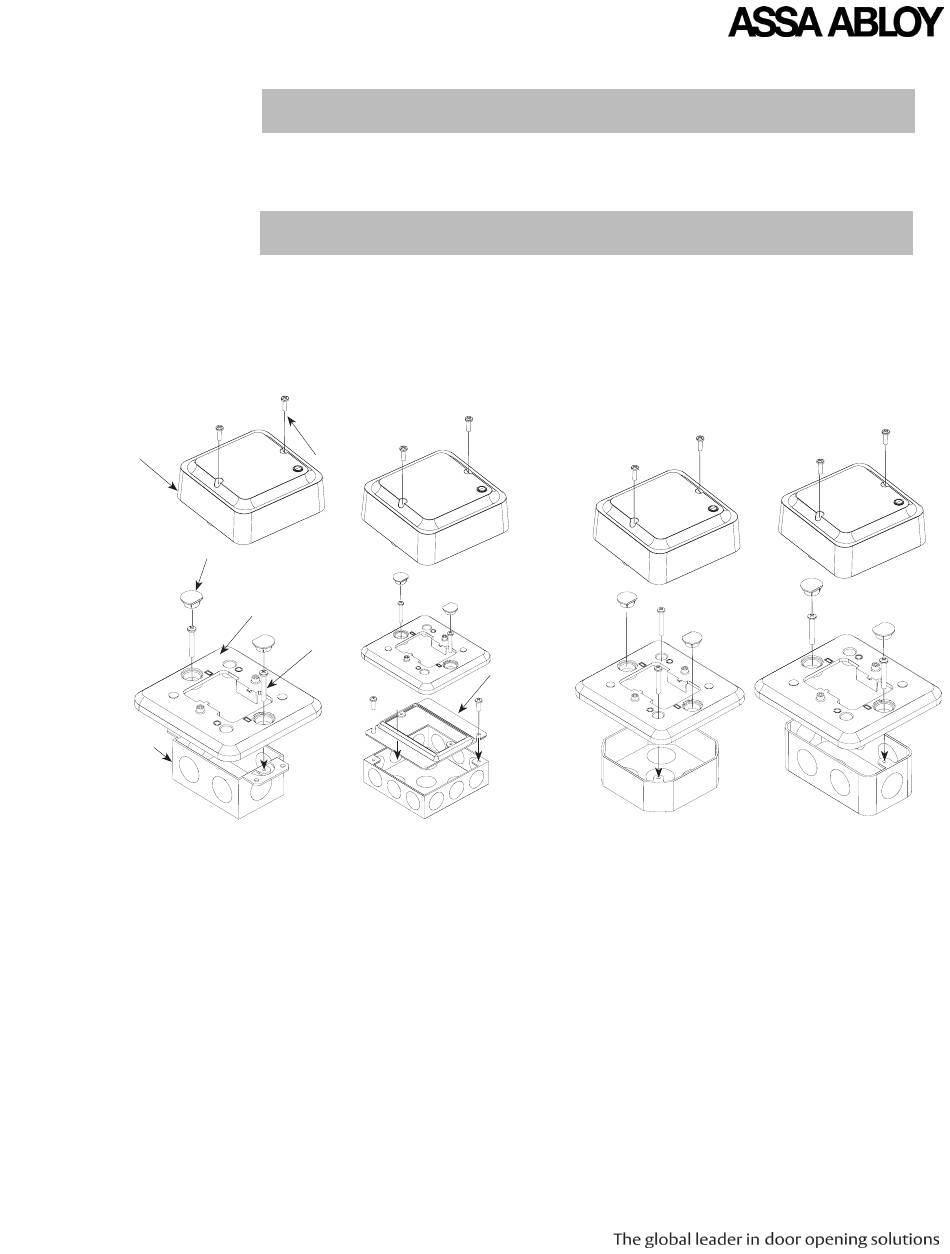

Figure 6. Communication Hub Assembly
WFMN5A • PAGE 11
Handy Box Assembly
