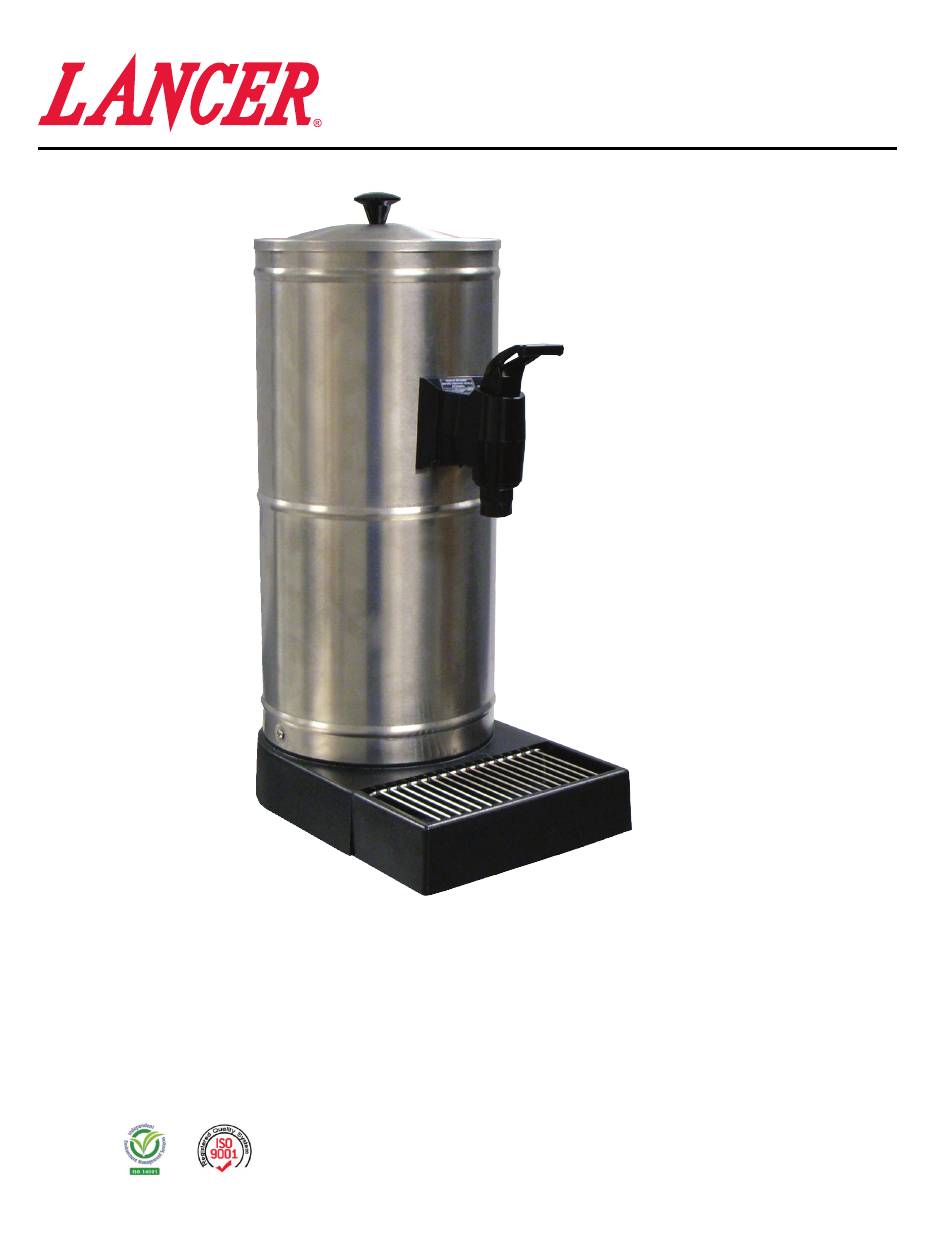

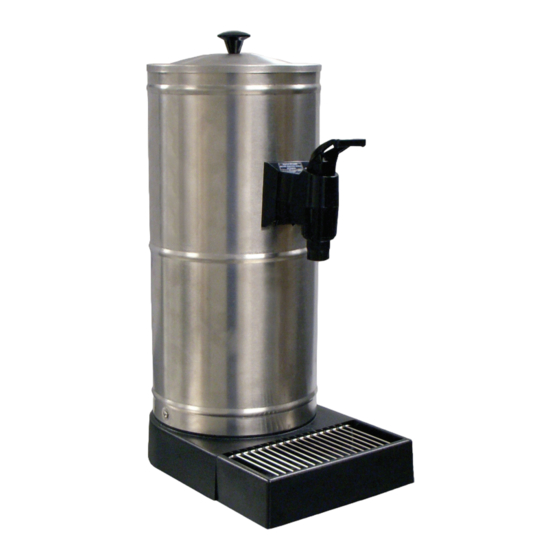

LANCER SERIES TD 1700 TEA DISPENSER
Operation Manual
PN: 28-0199/03
Lancer Corp.
6655 Lancer Blvd.
San Antonio, Texas 78219
800-729-1500
Technical Support/Warranty: 800-729-1550
custserv@lancercorp.com
lancercorp.com
Manual PN: 28-0199/03
MAY 19, 2008
FOR QUALIFIED INSTALLER ONLY
"Lancer" is the registered trademark of Lancer © 2014 by Lancer, all rights reserved.
Advertisement
Table of Contents
Troubleshooting
Related Manuals for lancer TD 1700 series
Summary of Contents for lancer TD 1700 series
- Page 1 PN: 28-0199/03 Lancer Corp. 6655 Lancer Blvd. San Antonio, Texas 78219 800-729-1500 Technical Support/Warranty: 800-729-1550 custserv@lancercorp.com lancercorp.com Manual PN: 28-0199/03 MAY 19, 2008 FOR QUALIFIED INSTALLER ONLY “Lancer” is the registered trademark of Lancer © 2014 by Lancer, all rights reserved.
-
Page 2: Table Of Contents
ONLY SYRUP DISPENSED, NO WATER................12 RATIO CANNOT BE SET....................13 BAD TASTE OR ODOR......................13 7. DISPENSER DISPOSAL......................13 8. ILLUSTRATIONS AND PARTS LISTINGS.................14 LANCER TEA DISPENSER ASSEMBLY................14-15 LANCER TEA DISPENSER - VALVE ASSEMBLY (PN 19-0137)........16 LANCER TEA DISPENSER - EXTENSION ASSEMBLY (PN 54-0132)......17... -
Page 3: Specifications
TD 1700 SPECIFICATIONS 23.875” 10” 4” 14.875” 10” DIMENSIONS WEIGHT PLAIN WATER SUPPLY Width: 10 inches Operating: 12.5 lbs (5.68 kg) Min flowing pressure: 40 PSI Depth: 14 7/8 inches Shipping: 20 lbs (9.1 kg) (0.276 MPA) Height: 23 7/8 inches FITTINGS ELECTRICAL Plain water inlet: 3/8”... -
Page 4: Warnings/Cautions
WARNING/ADVERTENCIA/AVERTISSEMENT The dispenser is for indoor use only. This unit is not a toy. Children should not be supervised not to play with appliance. It should not be used by children or infirm persons without supervision. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 ELECTRICAL WARNING/ADVERTENCIA ELÉCTRICA/ AVERTISSEMENT ÉLECTRIQUE Check the dispenser serial number plate for correct electrical requirements of unit. Do not plug into a wall electrical outlet unless the current shown on the serial number plate agrees with local current available. Follow all local electrical codes when making connections.
- Page 6 WATER NOTICE/AGUA AVISO/ PRÉAVIS DE L’EAU Provide an adequate potable water supply. Water pipe connections and fixtures directly connected to a potable water supply must be sized, installed, and maintained according to federal, state, and local laws. The water sup- ply line must be at least a 3/8 inches (9.525 mm) pipe with a minimum of 40 PSI (0.276 MPA) line pressure, but not exceeding a maximum of 50 PSI (0.345 MPA).
-
Page 7: Installation
1. INSTALLATION OF LANCER TEA DISPENSER UNPACKING A. The Lancer Tea Dispenser is shipped in a corrugated shipping carton. Carefully remove the carton. B. Ensure the following items are included: • Tea Dispenser • Remote Transformer • Installation Kit C. Inspect items for concealed damage. If evident, notify delivering carrier and file a claim. -
Page 8: Installation
H. Secure Tea Dispenser to counter top with the four #10 mounting screws and wingnuts included in the Installation Kit. NOTE: The Lancer Tea Dispenser Template (PN 28-0346) is included in the Installation Kit. Remove lid from dispenser by unscrewing the knob. -
Page 9: Adjustment Procedure
ADJUSTMENT PROCEDURE A. Hold ratio cup under the syrup separator (see Figure 1). Hold small chamber marked “4.50 to 1” under the syrup spout. B. Actuate the valve until approximately five ounces (148 ml) of water fills the main chamber. 1. -
Page 10: Cleaning And Sanitizing Procedure
C. Two pressure tanks are required. Use one tank for the cleaning solution, and one for the sanitizing solution. D. Other: • Clean cloth towels • Bucket • Small brush (PN 22-0017, included with installation kit) • Extra nozzle CLEANING AND SANITIZING PROCEDURE WARNING ROUTINE CLEANING SHOULD BE PERFORMED PRIOR TO CLEANING AND SANITIZING. -
Page 11: Removing Dispenser From Service
Problems found in the operation of the dispenser can be solved by using the procedures listed below, the Troubleshooting guide, or by calling Lancer Customer Service or the Coca-Cola Company at the numbers listed below. Before seeking repair assistance, check the following. -
Page 12: Troubleshooting
6. TROUBLESHOOTING The following chart is designed to aid in correcting Tea Dispenser problems. Indicated corrective actions should be made by qualified dispensing service personnel only. TROUBLE CAUSE REMEDY 6.1 No product dispensed from valve. A. No electricity to dispenser. A. -
Page 13: Ratio Cannot Be Set
TROUBLE CAUSE REMEDY 6.4 Ratio cannot be set. A. Inadequate water supply pressure. A. Turn water flow control (left side) to full open (CW). Measure flow rate. If greater than 2.5 oz/sec (74 ml/sec), adjust water to 2.5 oz/sec, then adjust syrup. If less than 2.5 oz/sec with flow control at maximum setting, adjust syrup to proper ratio with water at maximum setting. -
Page 14: Illustrations And Parts Listings
8. ILLUSTRATIONS AND PARTS LISTINGS LANCER TEA DISPENSER ASSEMBLY... - Page 15 LANCER TEA DISPENSER ASSEMBLY (CONTINUED) Lancer CCUSA Item Part No. Description Part No. 19-0137 Valve Assy 22330 54-0132 Nozzle Extension Assy 22331 05-0881 Drip Tray, Tea Urn 23055 30-5455/01 Wrapper, Tea Urn 30-5478 22334 05-0805 Knob 22335 05-0808 Retainer 22336...
-
Page 16: Lancer Tea Dispenser - Valve Assembly (Pn 19-0137)
LANCER TEA DISPENSER - VALVE ASSEMBLY (PN 19-0137) Lancer CCUSA Lancer CCUSA Item Part No. Description Part No. Item Part No. Description Part No. 05-0266 Valve Stem 12270 04-0270 Screw 18635 05-0267 Washer 12286 R 10 54-0189 Body, Upper Assy... -
Page 17: Lancer Tea Dispenser - Extension Assembly (Pn 54-0132)
LANCER TEA DISPENSER - EXTENSION ASSEMBLY (PN 54-0132) Lancer CCUSA Item Part No. Description Part No. 05-0792 Upper Housing, 22349 Nozzle Ext. 05-0793 Lower Housing, 22350 Nozzle Ext. 05-0233/01 Nozzle 22351 54-0028/01 Diffuser Assy (Used in 17124 production models through... - Page 18 Lancer Corp. 800-729-1500 Technical Support/Warranty: 800-729-1550 custserv@lancercorp.com lancercorp.com...
