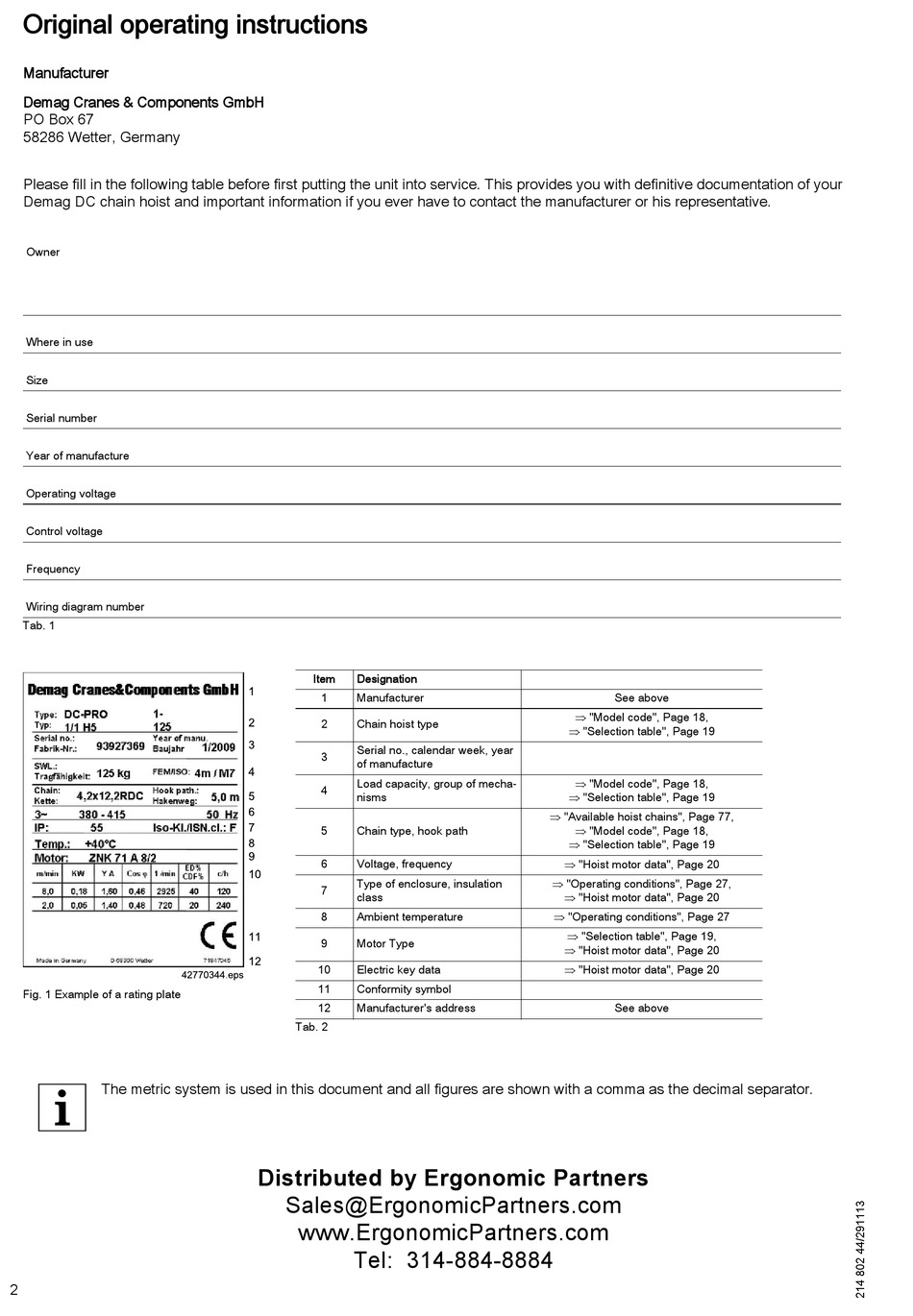

DEMAG DC-Com 1 Operating Instructions Manual page 2

Original operating instructions
Manufacturer
Demag Cranes & Components GmbH
PO Box 67
58286 Wetter, Germany
Please fill in the following table before first putting the unit into service. This provides you with definitive documentation of your
Demag DC chain hoist and important information if you ever have to contact the manufacturer or his representative.
Owner
Where in use
Size
Serial number
Year of manufacture
Operating voltage
Control voltage
Frequency
Wiring diagram number
Tab. 1
Fig. 1 Example of a rating plate
The metric system is used in this document and all figures are shown with a comma as the decimal separator.
2
Item Designation
1 Manufacturer
2 Chain hoist type
Serial no., calendar week, year
3
of manufacture
Load capacity, group of mecha‐
4
nisms
5 Chain type, hook path
6 Voltage, frequency
Type of enclosure, insulation
7
class
8 Ambient temperature
9 Motor Type
10 Electric key data
11 Conformity symbol
12 Manufacturer's address
Tab. 2
Distributed by Ergonomic Partners
Sales@ErgonomicPartners.com
www.ErgonomicPartners.com
Tel: 314-884-8884
See above
 "Model code", Page 18,
 "Selection table", Page 19
 "Model code", Page 18,
 "Selection table", Page 19
 "Available hoist chains", Page 77,
 "Model code", Page 18,
 "Selection table", Page 19
 "Hoist motor data", Page 20
 "Operating conditions", Page 27,
 "Hoist motor data", Page 20
 "Operating conditions", Page 27
 "Selection table", Page 19,
 "Hoist motor data", Page 20
 "Hoist motor data", Page 20
See above
