Disassembling The Pump - Danfoss PAHT Series Service Manual
Paht 20-32, paht g 20-32 disassembling and assembling
Hide thumbs
Also See for PAHT Series:
- Instruction (20 pages) ,
- Operation manual (86 pages) ,
- Service manual (20 pages)
Table of Contents
Advertisement
Service guide
1.
Disassembling the
pump

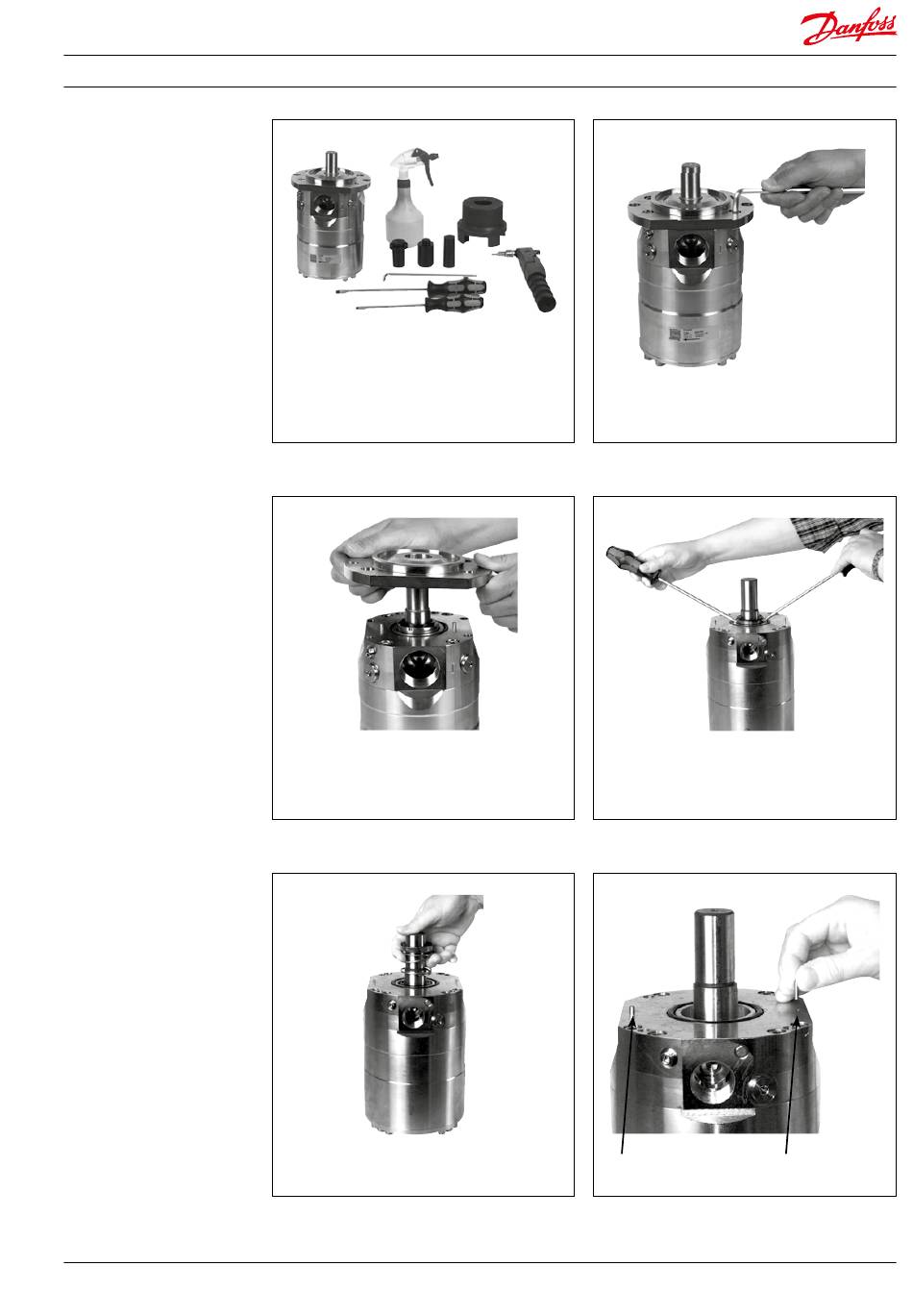

Disassembling and assembling PAHT / PAHT G 20-32
1. Tools required for dismantling the pump.
3. Remove mounting flange.
5. Remove spring.
180R9175 / 521B1108 / DKCFN.PI.012.E3.02 / 01.2016
2. Loosen and remove 6 screws.
4. Remove shaft sealing.
Caution: Avoid scratching the sealing
surface on the shaft.
6. Remove 2 guide pins.
3
