Paht 20-32, paht g 20-32 disassembling and assembling
Hide thumbs
Also See for PAHT Series:
- Instruction (20 pages) ,
- Operation manual (86 pages) ,
- Service manual (20 pages)
Table of Contents
Advertisement
Service guide

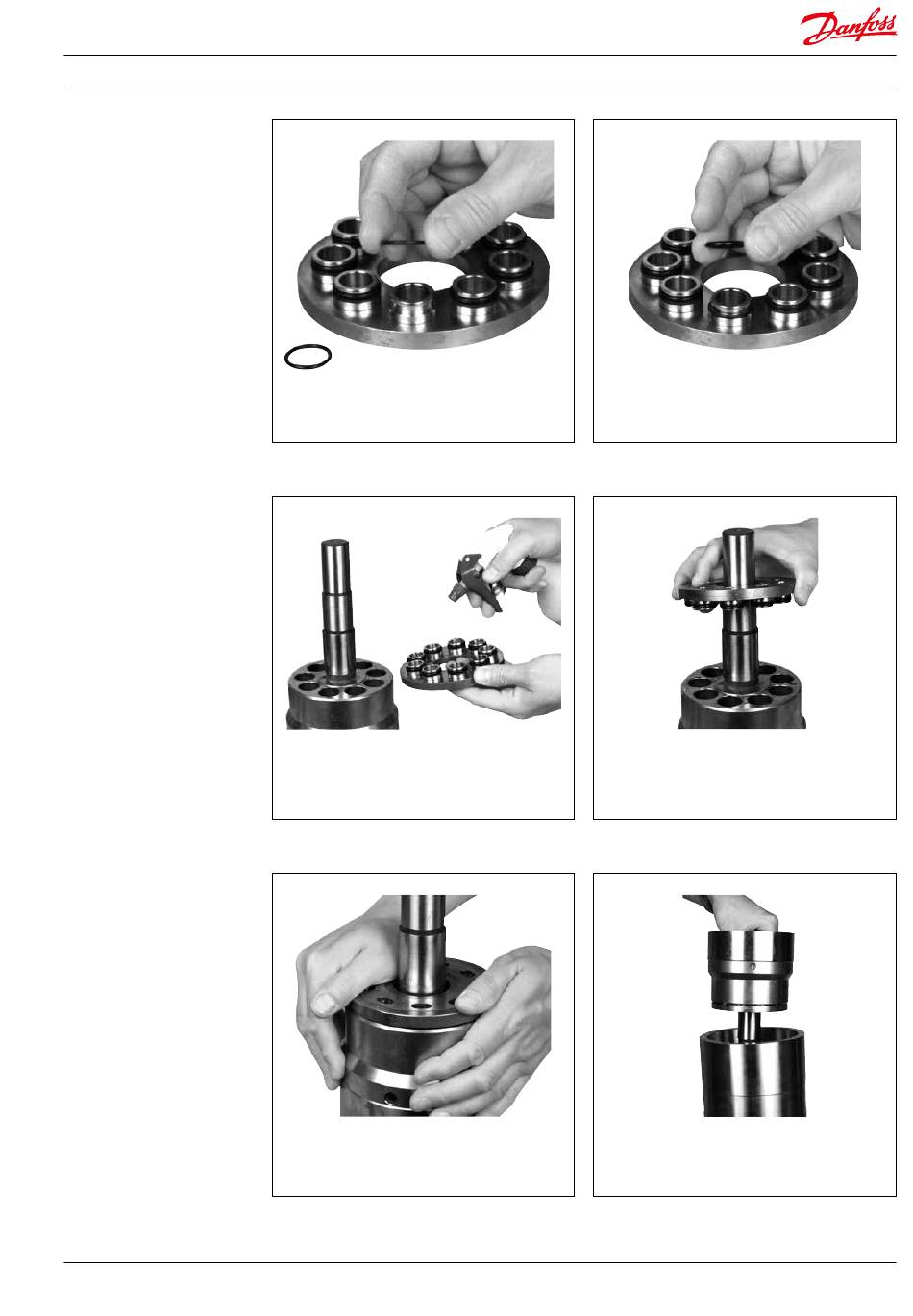

Disassembling and assembling PAHT / PAHT G 20-32
11. Mount backup rings on the thrust plate.
13. Spray with water on cylinder barrel and
thrust plate.
15. Press thrust plate into cylinder barrel.
180R9175 / 521B1108 / DKCFN.PI.012.E3.02 / 01.2016
12. Mount O-rings on the thrust plate.
14. Mount thrust plate on cylinder barrel.
16. Mount cylinder barrel in housing.
