Service guide
6

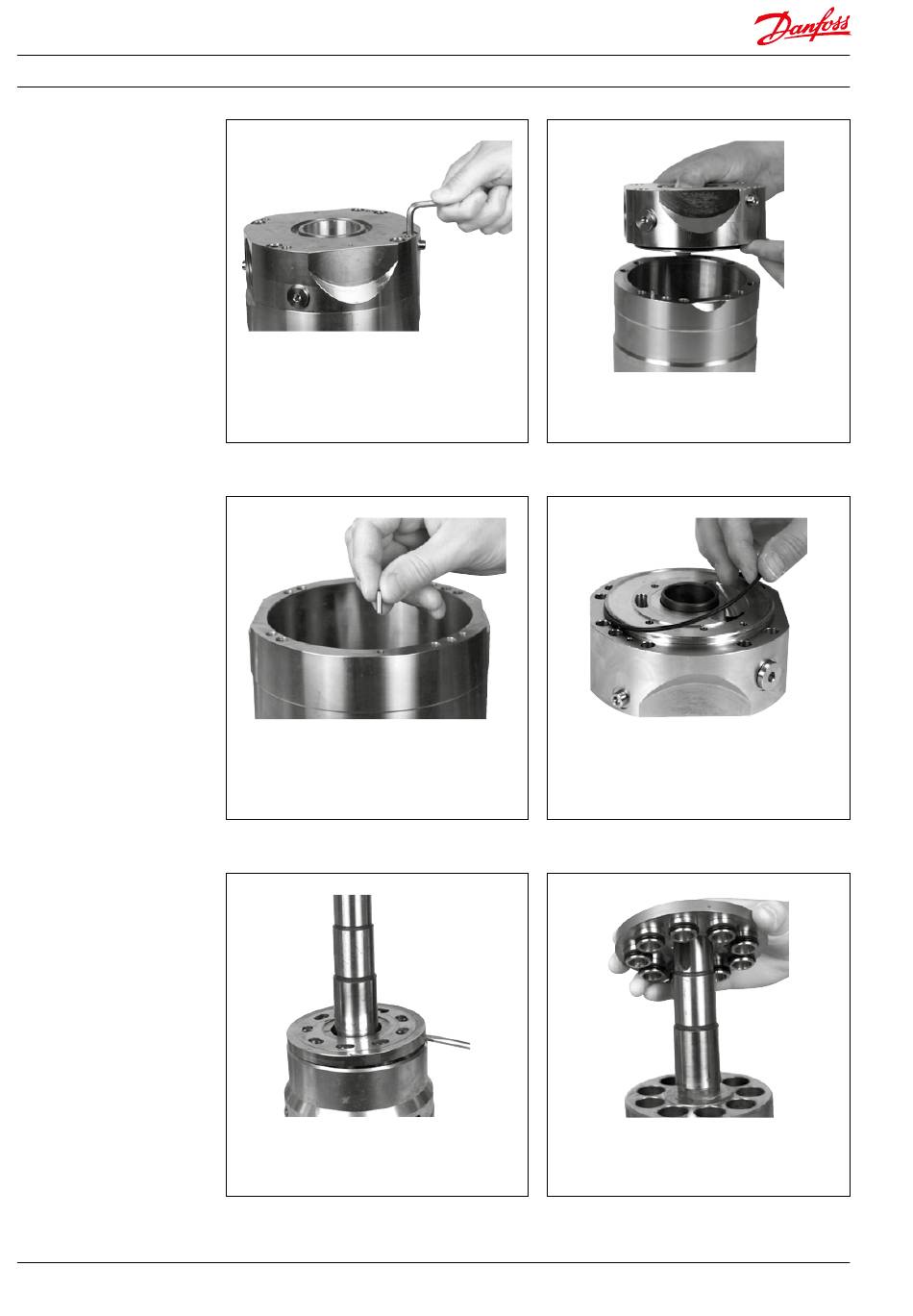

Disassembling and assembling PAHT / PAHT G 20-32
19. Turn pump upside down. Loosen and
remove 4 screws.
21. Remove 1 guide pin.
23. Loosen thrust plate from cylinder barrel.
180R9175 / 521B1108 / DKCFN.PI.012.E3..02 / 01.2016
20. Remove port flange.
22. Remove O-ring from port flange.
24. Remove thrust plate.
