Condumax II Sampling System -
NEC Compatible IOM Manual
DOUBLE BIT
LOCKS (3mm)
SAMPLE GAS OUTLET
(1/4" OD TUBE)
SAMPLE GAS INLET
(1/4" OD TUBE)
BREATHER/DRAIN
LETDOWN GAS VENT/DRAIN
(1/4" OD TUBE)

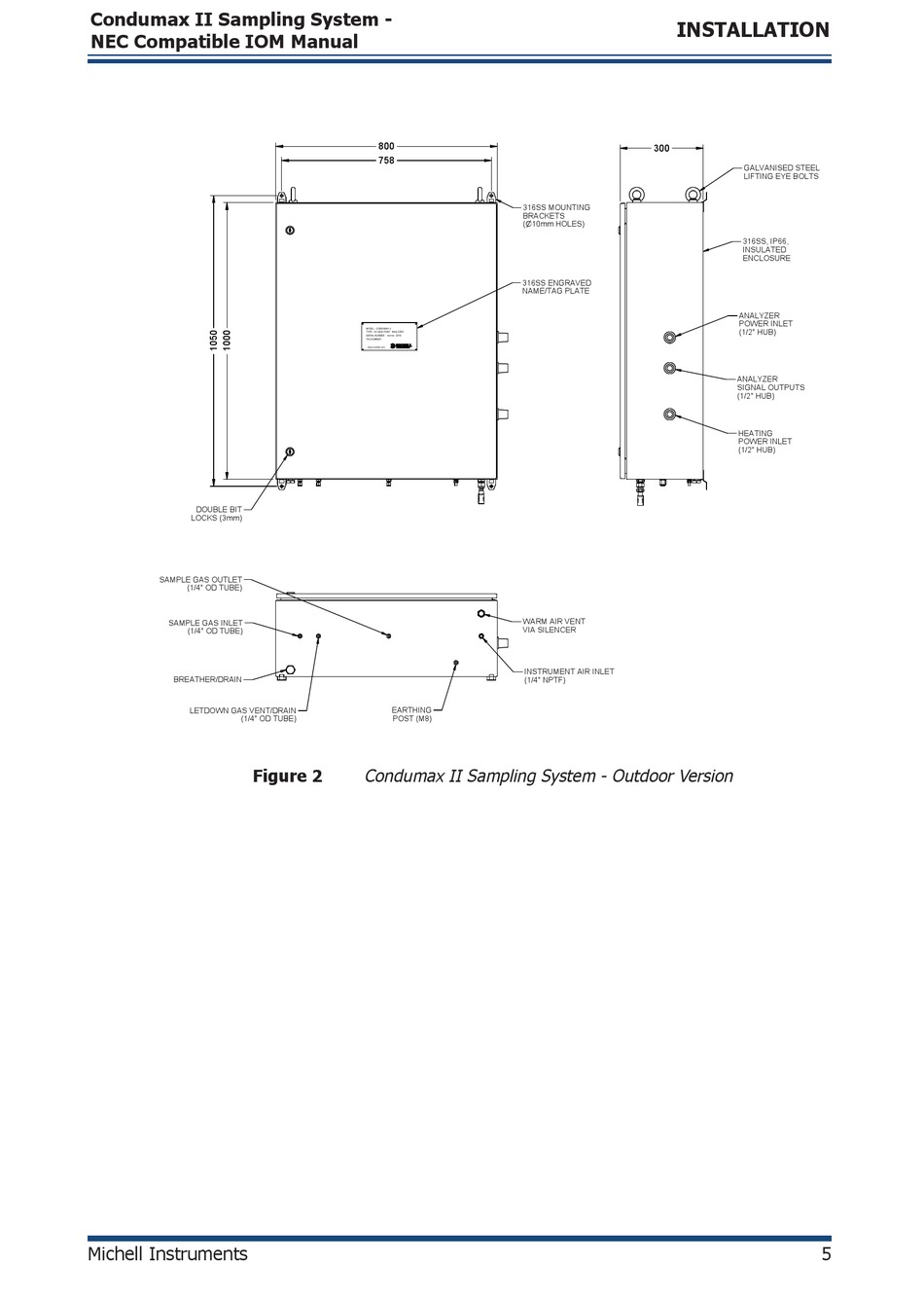

Figure 2
Michell Instruments
800
758
316SS MOUNTING
BRACKETS
(
10mm HOLES)
O
316SS ENGRAVED
NAME/TAG PLATE
MODEL: CONDUMAX II
TYPE: HC DEW POINT ANALYZER
SERIAL NUMBER : nnnnnn /2016
TAG NUMBER :
www.michell.com
WARM AIR VENT
VIA SILENCER
INSTRUMENT AIR INLET
(1/4" NPTF)
EARTHING
POST (M8)
Condumax II Sampling System - Outdoor Version
INSTALLATION
300
GALVANISED STEEL
LIFTING EYE BOLTS
316SS, IP66,
INSULATED
ENCLOSURE
ANALYZER
POWER INLET
(1/2" HUB)
ANALYZER
SIGNAL OUTPUTS
(1/2" HUB)
HEATING
POWER INLET
(1/2" HUB)
5
