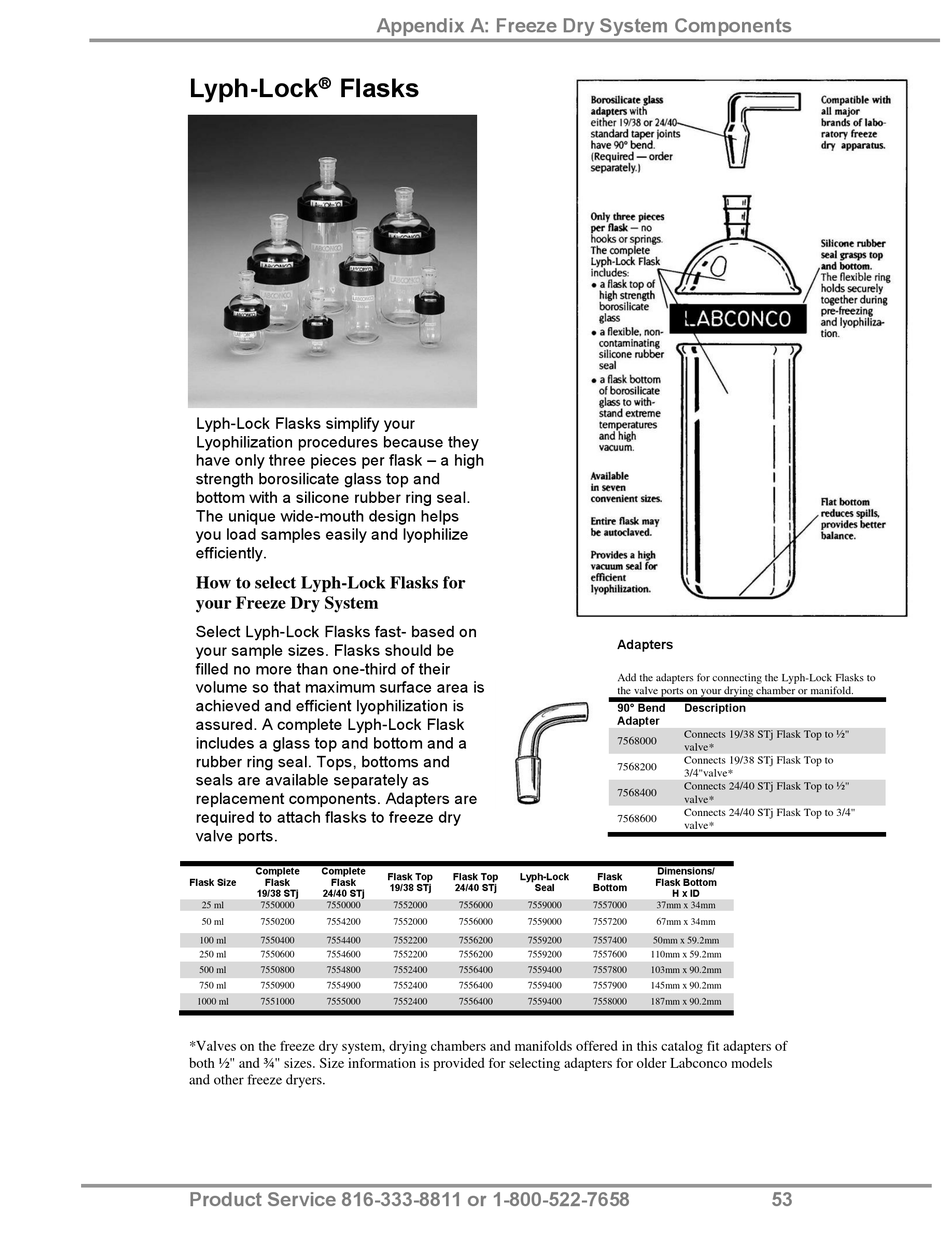

Labconco FreeZone Triad 74000 Series User Manual page 57

Lyph-Lock  Flasks
Lyph-Lock Flasks simplify your
Lyophilization procedures because they
have only three pieces per flask – a high
strength borosilicate glass top and
bottom with a silicone rubber ring seal.
The unique wide-mouth design helps
you load samples easily and lyophilize
efficiently.
How to select Lyph-Lock Flasks for
your Freeze Dry System
Select Lyph-Lock Flasks fast- based on
your sample sizes. Flasks should be
filled no more than one-third of their
volume so that maximum surface area is
achieved and efficient lyophilization is
assured. A complete Lyph-Lock Flask
includes a glass top and bottom and a
rubber ring seal. Tops, bottoms and
seals are available separately as
replacement components. Adapters are
required to attach flasks to freeze dry
valve ports.
Complete Complete
Flask Size Flask Flask
19/38 STj 24/40 STj
25 ml 7550000 7550000
50 ml 7550200 7554200
100 ml 7550400 7554400
250 ml 7550600 7554600
500 ml 7550800 7554800
750 ml 7550900 7554900
1000 ml 7551000 7555000
*Valves on the freeze dry system, drying chambers and manifolds offered in this catalog fit adapters of
both ½" and ¾" sizes. Size information is provided for selecting adapters for older Labconco models
and other freeze dryers.
Product Service 816-333-8811 or 1-800-522-7658
Appendix A: Freeze Dry System Components
Flask Top Flask Top Lyph-Lock
19/38 STj 24/40 STj Seal
7552000 7556000 7559000
7552000 7556000 7559000
7552200 7556200 7559200
7552200 7556200 7559200
7552400 7556400 7559400
7552400 7556400 7559400
7552400 7556400 7559400
Adapters
Add the adapters for connecting the Lyph-Lock Flasks to
the valve ports on your drying chamber or manifold.
90° Bend Description
Adapter
Connects 19/38 STj Flask Top to ½"
7568000
valve*
Connects 19/38 STj Flask Top to
7568200
3/4"valve*
Connects 24/40 STj Flask Top to ½"
7568400
valve*
Connects 24/40 STj Flask Top to 3/4"
7568600
valve*
Dimensions/
Flask
Flask Bottom
Bottom
H x ID
7557000 37mm x 34mm
7557200 67mm x 34mm
7557400 50mm x 59.2mm
7557600 110mm x 59.2mm
7557800 103mm x 90.2mm
7557900 145mm x 90.2mm
7558000 187mm x 90.2mm
