Triad Freeze Dry System Controls

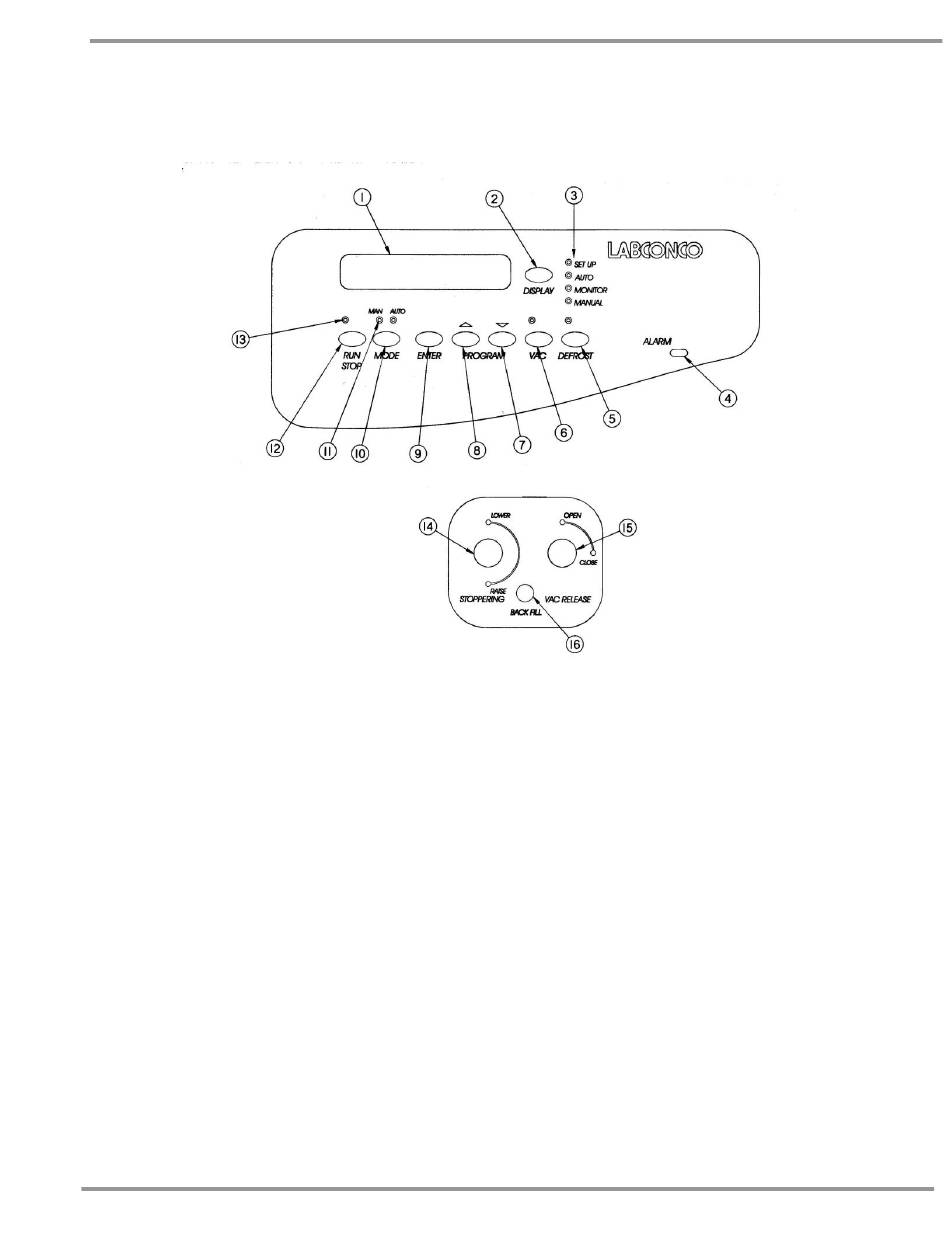

The control panel for the Triad Freeze Dry System is shown with a
description about its function.
1. Display: Displays all necessary programming and operational data. Provides
prompts to aid in programming.
2. Display Button: Changes format of display from "monitor" to "auto" to
"manual" to "set up" screen.
3. Display Indicators: Green INDICATOR shows which display "screen" is
shown.
4. Alarm Indicator: Red INDICATOR shows that a system alarm has occurred.
5. Defrost: Used to manually start or stop the defrost operation.
6. Vacuum: Used to manually start or stop the vacuum pump.
7. Decrease Button: Used in programming to decrease a parameter set point.
8. Increase Button: Used in programming to increase a parameter set point.
9. Enter Button: Used in programming to enter a selected set point into
memory.
10. Mode Selector Button: Selects the mode of operation – either manual or
automatic.
11. Mode Indicator: Green INDICATOR shows whether the control is set to
operate either in the automatic or manual mode.
