Summary of Contents for Kranzle LX 2000

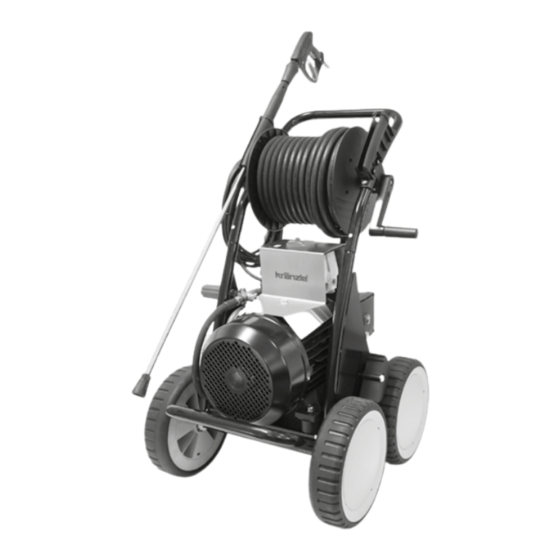

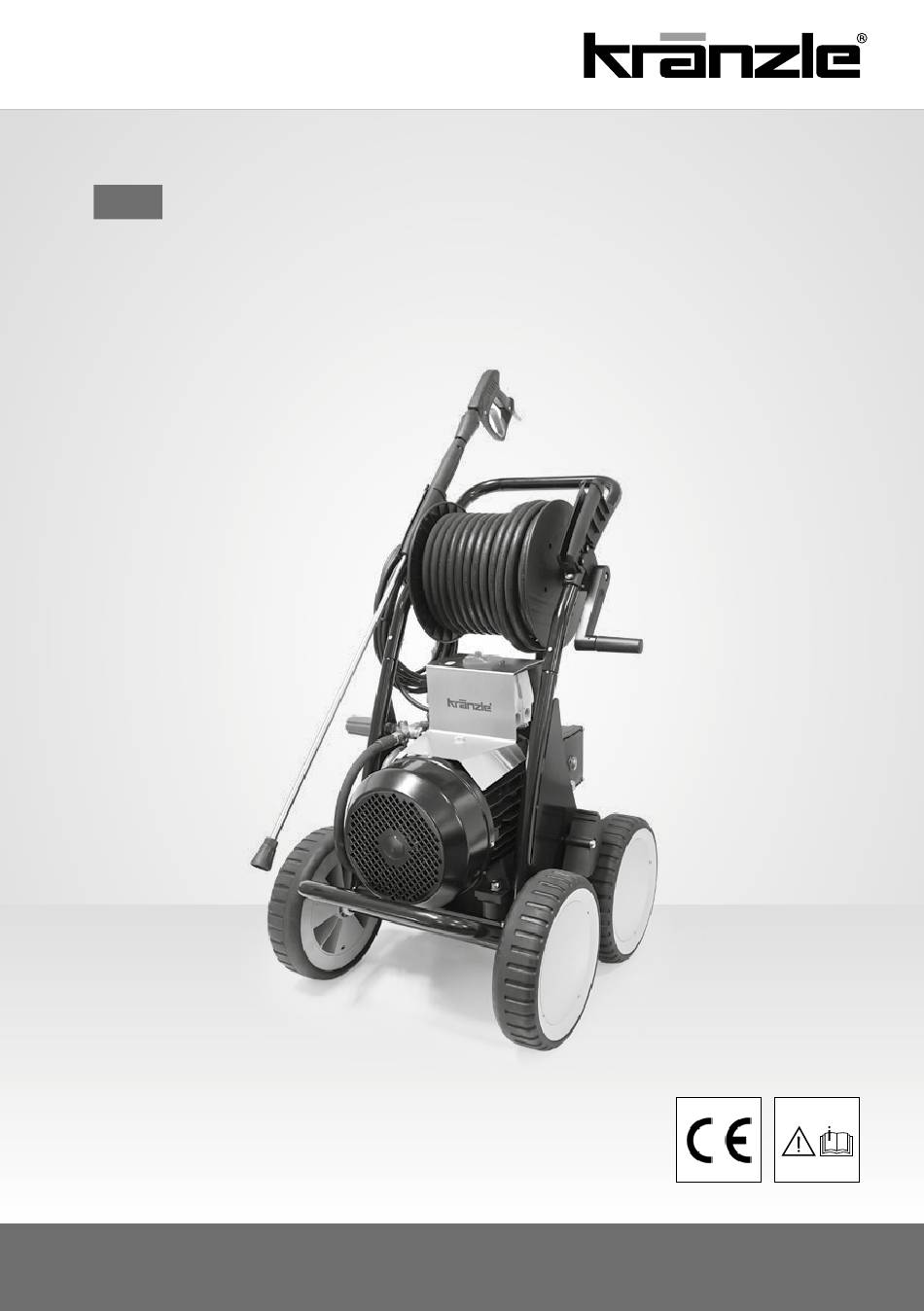

- Page 1 Operating manual High-pressure cleaner LX 2000 LX 2500 www.kraenzle.com...
- Page 2 Operating manual High-pressure cleaner LX 2000 LX 2500 Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Keep instructions in a safe place for later use and pass them on to any future user.
-
Page 3: Table Of Contents
Contents Explanatory symbols Dear customer: Explanatory symbols used in the operating manual Failure to observe this note may entail We would like to congratulate you on the purchase of your new high pressure environmental damage. cleaner and thank you for your confidence in our products! Note on the use of the high pressure cleaner that failure to Your choice has fallen on an absolute quality product! adhere to the instructions may cause excessive wear or total... -
Page 4: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high pressure cleaner should wear the necessary protective clothing, i.e. waterproof clothing, rubber boots, safety goggles, headwear etc. It is prohibited to use the high pressure cleaner in close vicinity to people lacking When using high pressure water for cleaning, suitable protective clothing. - Page 5 Safety notes - This is prohibited! Description of high pressure cleaner Design: Both the LX 2000 and the LX 2500 are portable type high pressure cleaners. Please see construction scheme for more details. Apply the safety catch on the safety trigger...
-
Page 6: Description Of High Pressure Cleaner
The “Guidelines for Liquid Spray Devices” must be complied with. 4. Operating manual Spare parts list Optional: 1000 mm turbokiller with stainless steel lance and plug-in nipple LX 2000: Ord. no.: 12430-12 LX 2500: Ord. no.: 12430-18 Water inlet filter Ord. no.: 133203... -
Page 7: General Rules
General rules Functional details Oil change High pressure hose and spray device The high pressure hose and spray device which are part of the LX-series equipment, The first oil change should be carried out are made of high quality material and engineered to conform with the operating after approximately 50 operating hours, conditions of the high pressure cleaner and are duly labeled. - Page 8 Functional details Functional details Water and cleaning system Pressure control valve/safety valve Water must be supplied to the high pressure pump under pressure or directly sucked The pressure control valve/safety valve protects the high pressure cleaner from in out of a pressureless container. The water is then forced under pressure by the a build up of excess pressure, and is designed not to permit an excess pressure high pressure pump to the lance.
- Page 9 Functional details Functional details Please note: Lack of water Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a high proximity connected to the network at the pressure cleaner is the greater is the danger same time, the available voltage and the that a lack of water occurs.
-
Page 10: Putting Into Operation
Putting into operation Putting into operation Install the water inlet filter (available as Release fixing of hose drum and fully an option) at the water inlet. uncoil it after that. (When using high pressure hose extensions take care that the max. length of 20 m is not exceeded!) For moving the high pressure cleaner Hose drum must be unrolled... - Page 11 Putting into operation Putting into operation If using a water inlet filter check it 12. Connect to circuit (see technical data). for cleanliness prior to each startup. Manually unscrew filter bowl, remove The socket must be protected on the sieve and thoroughly rinse and clean mains side with a 16 A delay fuse with the rest of the parts in clear water.
-
Page 12: Direct Suction
Direct suction Taking out of operation Switch off the high pressure cleaner Direct water extraction Due to the suction capacity of its high pressure pump (up to 2.5 m suction height, 2. Cut off the water supply max. hose length 3 m) this high pressure cleaner can suck in water for cleaning Open the safety trigger gun catch briefly until the pressure is released purposes from separate containers or ponds. -
Page 13: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked. - Page 14 Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun the high pressure cleaner After closing the safety trigger gun the high pressure cleaner keeps switching on and off. keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.
-
Page 15: Kränzle Accessories
Double lance With insulated ISO handle With plug-in nipple Low pressure nozzle D3035 as standard Splash guard LX 2000: L: 280 mm x W: 190 mm Item no.: 12133-D40125 For all washing lances LX 2500: Item no.: 132600 Item no.: 12133-D40175... -
Page 16: Ec Declaration Of Conformity
Kränzle high-pressure cleaner (= product) applies to material faults only such as material and manufacturing defects. Nominal flow: Kränzle LX 2000: 1920 l/h Kränzle LX 2500: 2490 l/h Defects attributable to long and frequent use of the product, typically arising... -
Page 17: Inspection Reports
Inspection reports Inspection reports High pressure cleaners for industrial use have to be checked by an expert every High pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. - Page 18 Notes Notes...
- Page 19 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
