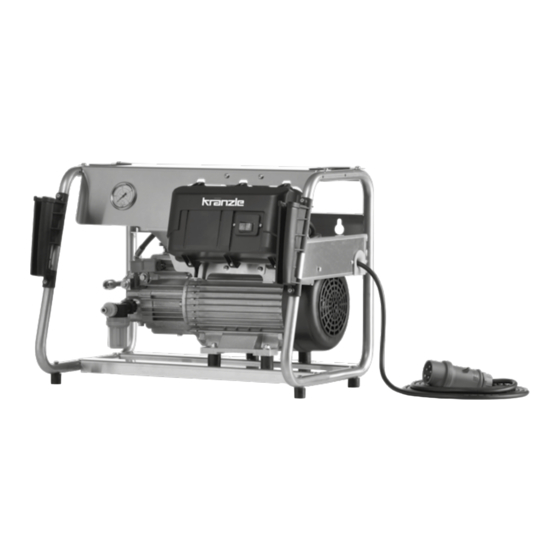

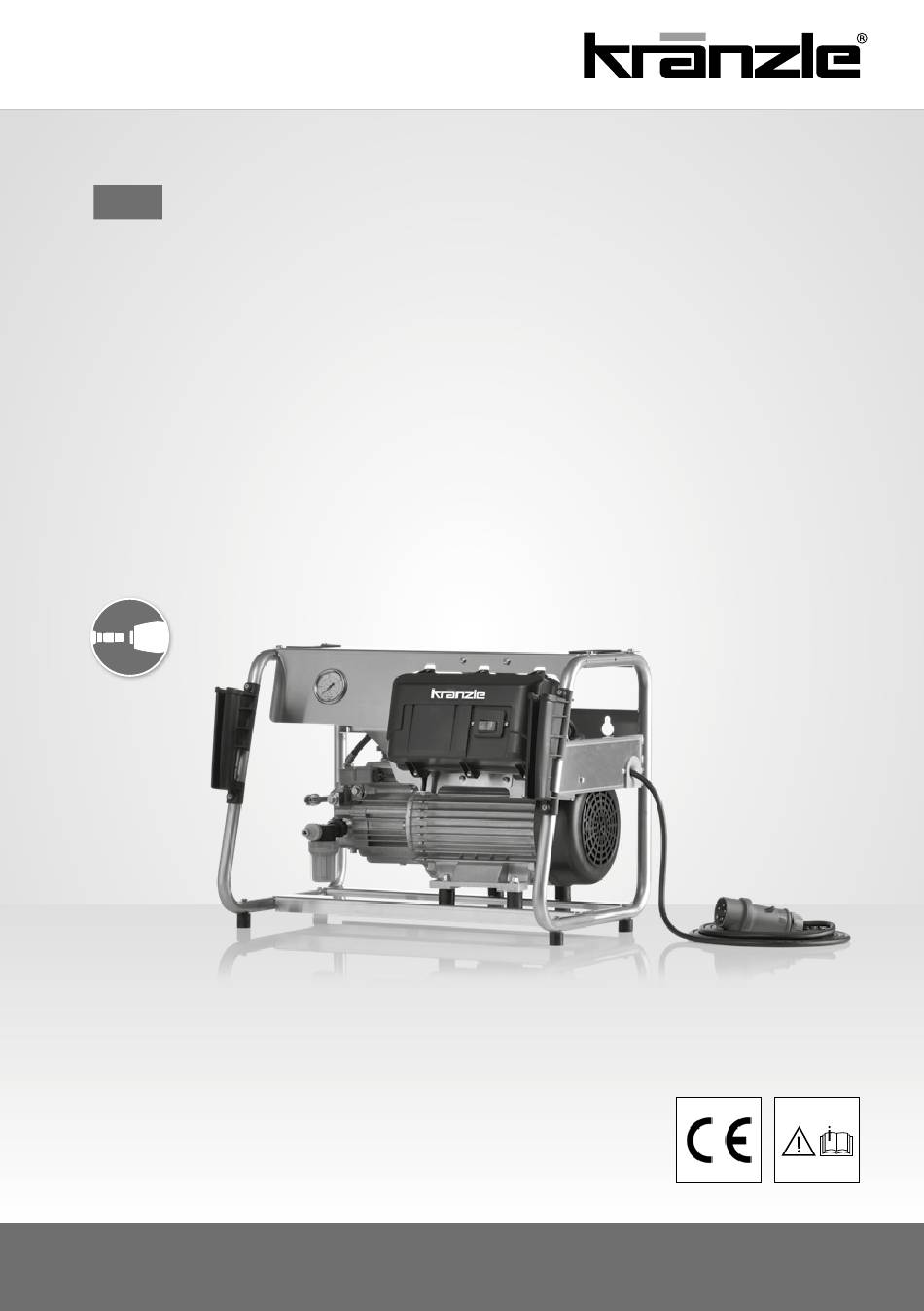

- Page 1 Operating manual High-pressure cleaner WS 700 TS 230V~1/60Hz WS 1200 TS 230V~3/60Hz WS 1200 TS 440V~3/60Hz www.kraenzle.com...
- Page 2 Operating manual High-pressure cleaner WS 700 TS 230V~1/60Hz WS 1200 TS 230V~3/60Hz WS 1200 TS 440V~3/60Hz Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list.
-
Page 3: Table Of Contents
Contents Explanatory symbols Dear customer: Explanatory symbols used in the operating manual Failure to observe this note may entail We would like to congratulate you on the purchase of your new high pressure environmental damage. cleaner and thank you for your confidence in our products! Note on the use of the high pressure cleaner that failure Your choice has fallen on an absolute quality product! to adhere to the instructions may cause excessive wear... -
Page 4: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high-pressure cleaner should wear the necessary protective Replacement of the power supply cables is only permitted by use of an original clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection power supply cable of the manufacturer and must be performed by a qualified headwear etc. - Page 5 Safety notes - This is prohibited! Safety notes - This is prohibited! Never direct the high pressure jet at the high Never direct the high pressure jet at people or pressure cleaner itself! The high pressure cleaner animals! Never direct the high pressure jet at may not be placed within reach of the high yourself or other persons, not even to clean pressure jet spray mist!
-
Page 6: Description Of High Pressure Cleaner
Please see construction scheme for more details. 1. Kränzle high pressure cleaner WS 700 TS / WS 1200 TS 2. Trigger gun with safety catch, short design with quick release coupling ... -
Page 7: General Rules
General rules General rules Intended use Oil change This high pressure cleaner is to be used solely for high pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents The first oil change should be carried out (e.g. -
Page 8: Functional Details
Functional details Functional details Please note: Lack of water Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a high proximity connected to the network at the pressure cleaner is the greater is the danger same time, the available voltage and the that a lack of water occurs. - Page 9 Functional details Functional details Water and cleaning system Pressure control valve/safety valve Water must be supplied to the high pressure pump under pressure or directly The pressure control valve/safety valve protects the high pressure cleaner from sucked in out of a pressureless container. The water is then forced under pressure a build up of excess pressure, and is designed not to permit an excess pressure by the high pressure pump to the lance.
- Page 10 Functional details Putting into operation Safety shutdown The high-pressure cleaner may be carried by two persons. Please note the weight of If the high-pressure cleaner is accidentally not turned off after use or the safety the high-pressure cleaner (refer to technical trigger gun is not used for 20 minutes, the high-pressure cleaner automatically data).
-
Page 11: Putting Into Operation
Putting into operation Putting into operation First pull back the retaining sleeve Neither set up or operate the WS-series in rooms where there is a of the safety trigger gun, then risk of fire or explosion nor put it into puddles. Do not use the high pressure cleaner under water. - Page 12 Putting into operation Putting into operation 13. Connect to circuit (see technical data). 10. If using a water inlet filter check it for cleanliness prior to each startup. Manually unscrew filter bowl, remove sieve and thoroughly rinse and clean with the rest of the parts in clear water.
-
Page 13: Direct Suction
Direct suction Taking out of operation Switch off the high pressure cleaner Direct water extraction Due to the suction capacity of its high pressure pump (up to 2.5 m suction height, 2. Cut off the water supply max. hose length 3 m) this high pressure cleaner can suck in water for cleaning Open the safety trigger gun catch briefly until the pressure is released purposes from separate containers or ponds. -
Page 14: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked. - Page 15 Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun the high pressure cleaner After closing the safety trigger gun the high pressure cleaner keeps switching on and off. keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.
-
Page 16: Kränzle Accessories
Kränzle accessories Kränzle accessories Rotating washing brush Stainless steel pipe 500 mm Brush head ∅ 180 mm Foam injector Nozzle size 3.2 mm 1 litre, with container With anti-twist protection Dosage in 5 levels With plug-in nipple With plug-in nipple Ord. -
Page 17: Eu Declaration Of Conformity
WS 1200 TS (440V~3/60Hz) applies to material faults only such as material and manufacturing defects. Nominal flow: WS 700 TS (230V~1/60Hz): 3.3 Gpm Defects attributable to long and frequent use of the product, typically arising WS 1200 TS (230V~3/60Hz): 5.0 Gpm due to the age of the high-pressure cleaner and intensity of its use are defined WS 1200 TS (440V~3/60Hz): 5.0 Gpm... -
Page 18: Inspection Reports
Inspection reports Inspection reports High pressure cleaners for industrial use have to be checked by an expert every High pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. - Page 19 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
