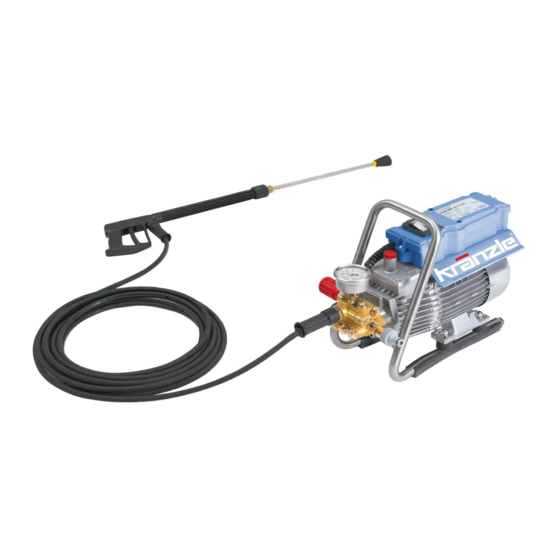

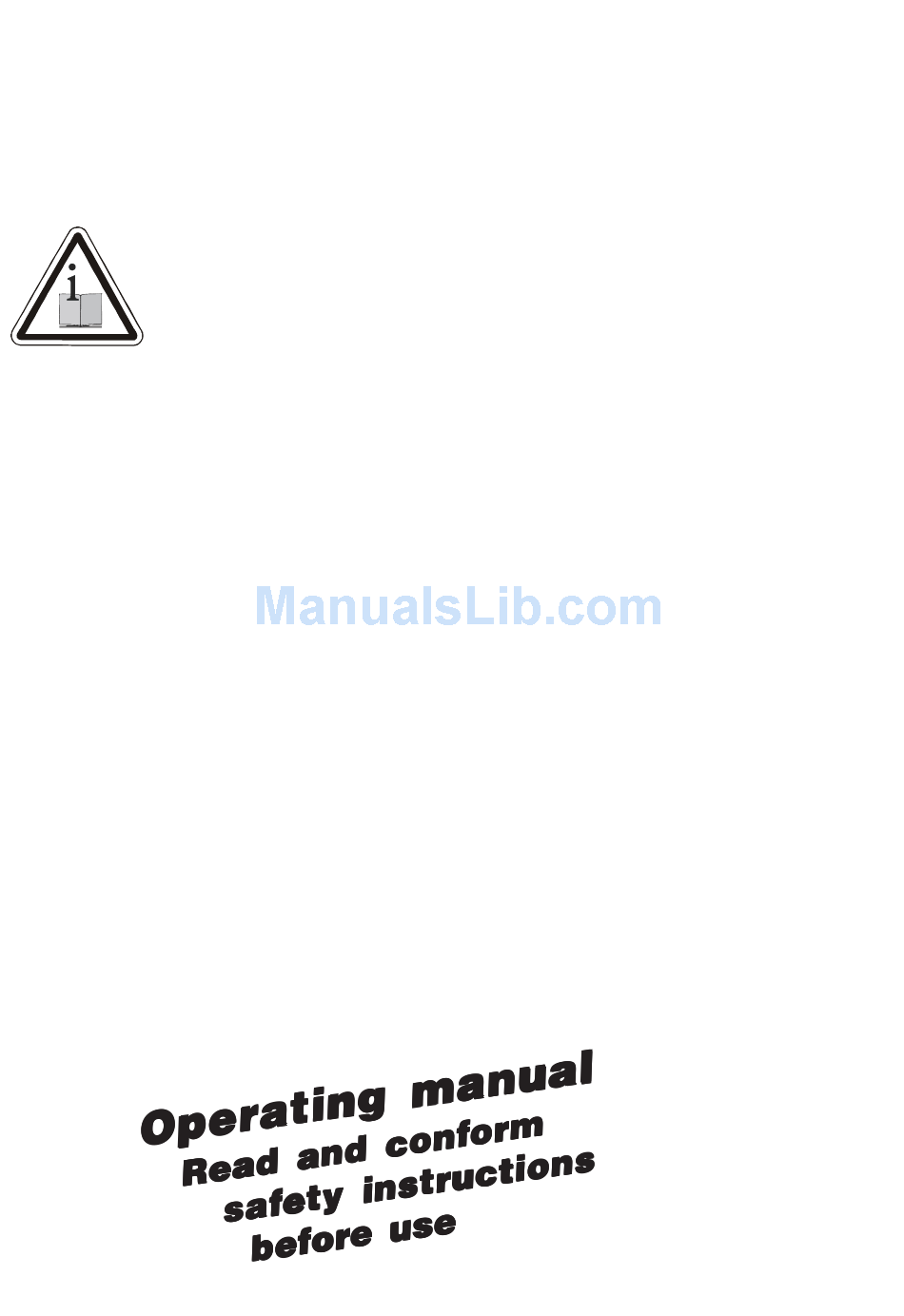

- Page 1 High Pressure Cleaners 7/120 7/120 HD 7/120 7/120 7/120 10/120 10/120 HD 10/120 10/120 10/120...
-
Page 2: Dear Customer
- removing of - flagstones - containers old paint - terraces - machines etc. Technical Kränzle Kränzle data HD 7/120 HD 10/120 Operating pressure, 10 - 120 bar 10 - 120 bar steplessly adjustable Nozzle size 20 03 20 045 Perm. overpressure... -
Page 3: Connection Principle
Description Water 230 V Connection principle The KRÄNZLE HD7/120 + HD10/120 - high pressure cleaners are mobile ma- chines. The design can be seen from the diagram. Components 5 Unloader valve - safety valve 1 Water inlet connection with filter 6 High pressure hose 2 Suction hose with filter (special 7 Spray gun... - Page 4 Description Water- and cleaning/detergent system Water can be connected at mains pressure to the high pressure pump or it can be sucked directly from a storage tank. The water is then forced under pressure by the high pressure pump to the lance. The high pressure jet is formed by the nozzle at the end of the lance.
- Page 5 Description Motor protection switch The motor is protected from overload by a motor protection switch, which automatically cuts out the motor in the event of overload. However should the switch trip frequently, the cause of the malfunction should be located and rectified (see page 6).
-
Page 6: Electrical Connection
The mains plug must be fitted to a standard grounded socket with a 30mA residual current operated device. The socket must be protected with a 16A delay action fuse on the mains side. KRÄNZLE HD 7/120 230 Volt / 50 Hz KRÄNZLE HD 10/120... -
Page 7: Water Connection
Description Water connection: Please check that the high pressure cleaner has available the quantity of water specified on page 2 (techn. specifications) (Litres per minute). Test: Allow the water to run through the supply hose into a bucket for 1 minute. The received quantity of water must be at least the quantity given on page 2 !!! Lack of water causes fast wear on seals (no warranty) -
Page 8: High Pressure Hose And Spray Device
Description Brief operating instructions When operating your high pressure cleaner pay attention that it is in a horizontal position. 1. Connect the high pressure hose with the spray gun. 2. Connect to suitable water supply. 3. Flush the air from the pump (open and close the spray gun several times) 4. -
Page 9: Safety Notes
Safety notes As to the recoil - see notice on page 2! Apply the safety catch on the spray gun after each use, in order to prevent uninten- tional spraying! Always aim the underbody lance. Note when using an angled underbody lance, like for example lance no. -
Page 10: This Is What You've Purchased
This is what you’ve purchased: 1. Spray lance with high pressure nozzle 2. Spray gun with insulated pistol grip and screw connection 3. KRÄNZLE - High pressure cleaners HD7/120 / HD 10/120 4. Operating instructions 5. Water inlet components is already installed... -
Page 11: Preparation For Use
Preparation for use 1. Check oil level Oil has to be visible in the oil-level sight glass 2. Connect the high pressure lance to the spray gun. 3. Unroll hose without kinks and connect with handgun and pump. Max. extension 20 m-HP hose or 2 x 10 m with hose connections. - Page 12 Preparation for use 4. The machine can be connected to a pressurised water line with 60°C hot water (see page 2). Ensure that the water supply is clean when sucking from external sources. The hose cross section must be at least 1/2" = 12.7 mm (free passage).
-
Page 13: Adjusting The Pressure
Preparation for use Adjusting the pressure This is accomplished by turning the handwheel. The default setting is maximum pressure. To shut down the pump: 1. Switch off the machine. 2. Cut off the water supply. 3. Open the spray gun briefly until the pressure is released. - Page 14 This is prohibited ! Never allow children to use the high pressure cleaner ! Never direct the water jet at the machine itself ! Never direct the water jet at a power socket !
- Page 15 This is prohibited ! Never direct the water jet at people or animals ! Do not damage the power cable or repair it incorrectly ! (Replace defective or damaged cables immediately ! Never work with a defective appliance !) Never pull the high pressure hose if it has formed kinks or “nooses”!
- Page 16 Order No. 41.075 Sandblaster Order No. 41.068 1 Flat brush Order No. 41.073 Dirtkiller 03 (HD 7/120) Order No. 41.073 8 Dirtkiller 045 (HD 10/120) Order No. 41.072 5 Environmental, refuse disposal and water pro- tection regulations must be observed when...
- Page 17 ... for further combination possibilities Car cleaning, glass, caravan, boat etc. rotary washing brush with 40 cm exten- sion and ST 30 nipple M 22 x 1.5 Cleaning pipes, channels and drains: pipe cleaning hose with KN nozzle and ST 30 nipple M 22 x 1.<<<<<5 <...
-
Page 18: Small Repairs
Small repairs - Nozzle dirty or sticky! Pressure gauge does not show full pressure. The high-pressure Water comes out in spurts. hose vibrates. If you do not use the high-pressure cleaner for some time the valves can stick the gauge When a valve is blocked, or the high shows little... -
Page 19: Do-It-Yourself
- Do it yourself ! The nozzle is blocked! No water but the gauge shows full pressure ! but if you You should now have a Rinse the hose through only get a few powerful stream of first. water, drops from the lance Using the flat spray lance you remove the lance and clean... -
Page 20: Small Repairs - Do It Yourself
Small repairs - Do it yourself ! Stopping leaks from hose or gun After closing the gun the manometer shows full pressure ! The pressure regulator switches on and off continuously! If the Pull out the First manometer power plug! disconnect shows full the hose! -
Page 21: Gun With Lance
13.275 Düsenschutz M12x1 26.002 1 Rohr 400 mm; bds. M12x1 15.002 ST 30 Nippel M 22 x 1,5 / R1/4" m. ISK 13.363 Flachstrahldüse 028 (bei HD 7/120) M20028 54.1 Flachstrahldüse 042 (bei HD 10/120) M20042 Rep.-Kit 12.158 Pos: 3, 4, 5, 8, 9, 12, 15, 16; 21 Griff komplett 12.164... -
Page 22: Complete Assembly
Complete assembly... - Page 23 12.160 Lanze mit Flachstrahldüse 028 (HD 7/120) 12.392 5-M20028 Lanze mit Flachstrahldüse 042 (HD 10/120) 12.392 5-M20042 Schmutzkiller 03 kpl. mit Lanze (HD 7/120) 41.073 8 10.1 Schmutzkiller 045 kpl. mit Lanze (HD 10/120) 41.072 5 O-Ring 9,3 x 2,4 13.273...
- Page 24 Motor...
- Page 25 KRÄNZLE HD 7/120 / HD 10/120 Spare parts list KRÄNZLE HD 7/120 / HD 10/120 Motor Description Qty. Ord.-No Ölgehäuse mit Dichtung und Deckel 44.501 Stator (HD 7/120) 23.001 2 Stator (HD 10/120) 23.002 4 Motorwelle mit Rotor (HD 7/120) 43.104...
- Page 26 Transmission...
- Page 27 KRÄNZLE HD 7/120 / HD 10/120...
-
Page 28: Valve Housing
Valve housing... - Page 29 KRÄNZLE HD 7/120 / HD 10/120...
- Page 30 41.527 ST 30-Nippel M 22 x 1,5 / M 12 x 1 ISK 13.363 Front cap for Dirtkiller 41.528 1 Rear cap for Dirtkiller 03 (HD 7/120) 41.542 1 12.1 Rear cap for Dirtkiller 045 (HD 10/120) 41.540 2 Rep.-kit Dirtkiller 03 41.096 1...
- Page 31 Wiring diagram / Warranty Wiring diagram for KRÄNZLE HD 7/120 / HD 10/120 braun = brown C : 40 µF blau = blue schw = black = red = yellow Terminal strip = green = white Weber-Unimat WT 22 - 551...
-
Page 32: General Rules
General rules Inspections The machine must be inspected according to the “Guidelines for Liquid Spray Devices” at least once every 12 months by a qualified person, to ensure that contin- ued safe operation is guarateed. The results of the inspection are to be recorded in writing. -
Page 33: Ec Declaration Of Conformity
Art. 13, High-pressure water jet machines Appendix 3, part B, chapter 27 Sound power level measured: HD 7/120: 81 dB (A); HD 10/120: 89 dB (A) guaranteed: HD 7/120: 84 dB (A); HD 10/120: 91 dB (A) EN 60 335-2-79:2004... - Page 34 Notes...
- Page 35 Notes...
- Page 36 Reprint only allowed with the authorization of As date of 06.07.2005...
