How to Install

2 How to Install

2.1 The Modbus TCP Option

Ethernet Port 1
Ethernet Port 1
MCA122
MS LED MS
MODBUS TCP
NS1
NS LEDs
NS2
SW. ver. TM. ver.

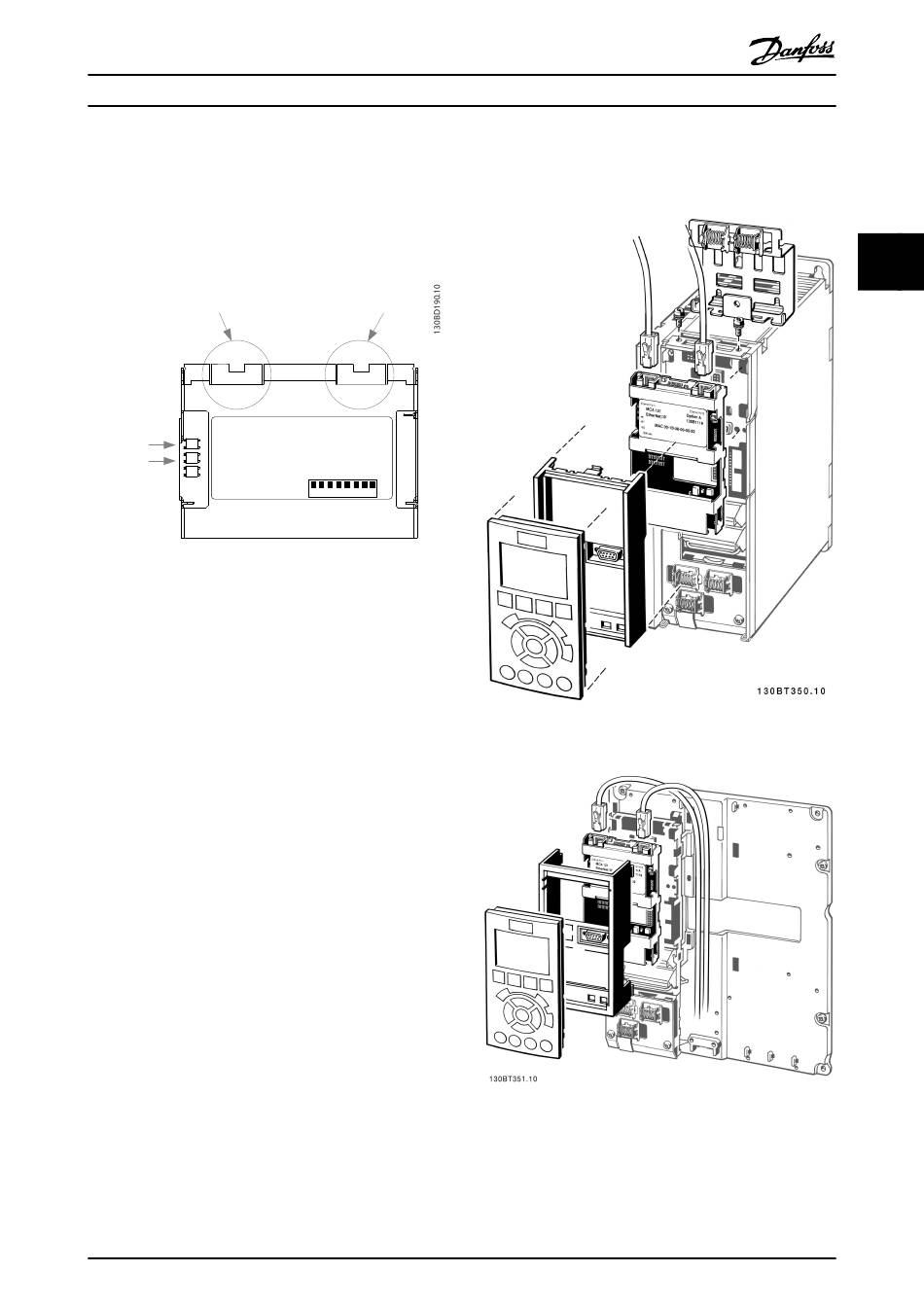

Illustration 2.1 Overview of the Option
2.1.1 How to Install Option in Frequency
Converter
Items required for installing a fieldbus option in the
frequency converter
•
The fieldbus option
•
Fieldbus option adapter frame for the FC 102/FC
202/FC 300. This frame is deeper than the
standard frame, to allow space for the fieldbus
option beneath
•
Strain relief (only for A1 and A2 enclosures)
MCA 122 Modbus TCP
Ethernet Port 2
Ethernet Port2
Option A
130B1196
MAC 00-1B-08-00-00-00
Address
ON
8 7 6 5 4 3 2 1 OFF
®
MG90P202 - VLT is a protected Danfoss trademark
Illustration 2.2 Option Installed in Frequency Converter
Illustration 2.3 Strain Relief for Enclosure Types A1 and A2
