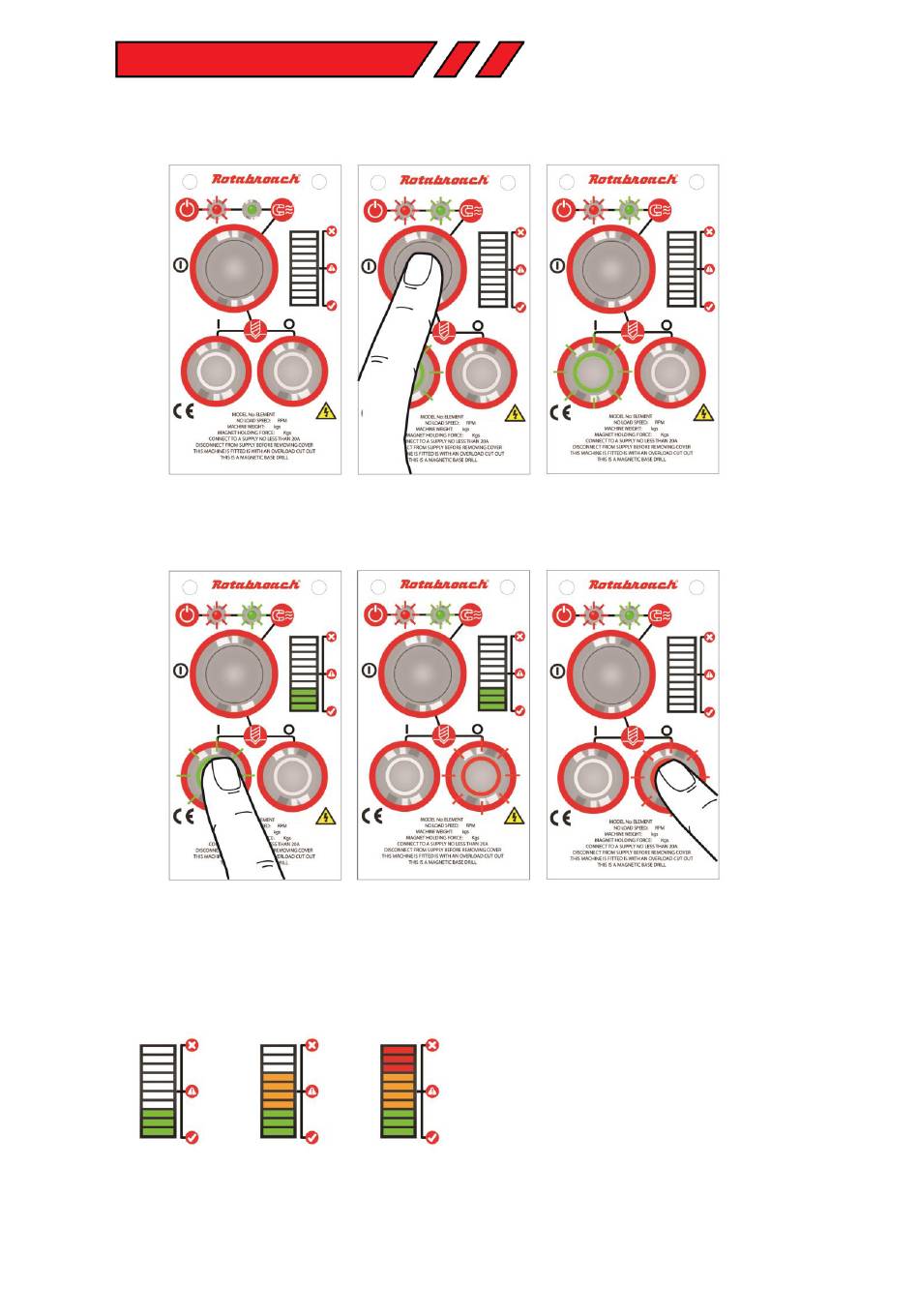

7) CONTROL PANEL OPERATION

1) Power
When the drill is connected to
the power supply, the RED LED
will indicate power to the drill.
4) Motor ON
Press the GREEN Switch to turn
the motor on. Proceed with
cutting- following all safety
guidelines...
CutSmart2™ Technology
Green Zone Yellow Zone
Perfect, try to keep in A little too much
the green zone for pressure on the drill
the best cut and ease off to get back
optimum machine
to the green zone.
8
performance.
Original instructions
2) Magnet ON
To turn the magnet ON or OFF,
depress the large button on the
control panel. A GREEN LED will
indicate the magnet is ON.
5) Cutting
See below for detailed
description of the CutSmart2™
visual indicator
CutSmart2™ Technology
Designed for you to get the most out of your
machine and your cutters. CutSmart2 has an
easy to read panel that indicates when you
are drilling with too much force, which will
damage the machine and the cutters.
Red Zone
Allow the cutter to do the work and you will
Overload: Back off
immediately as too
find that a much smoother hole and faster
much force will cause
drilling time is achieved.
the motor to cut off if
you continue.
3) Motor switch
When the magnet has power the
GREEN switch will light up to indicate
motor start.
6) Motor OFF
To stop the motor press the RED
switch. The motor will stop and the
magnet will remain on. The GREEN
switch will turn on.
Go back to step 3 to start over.
