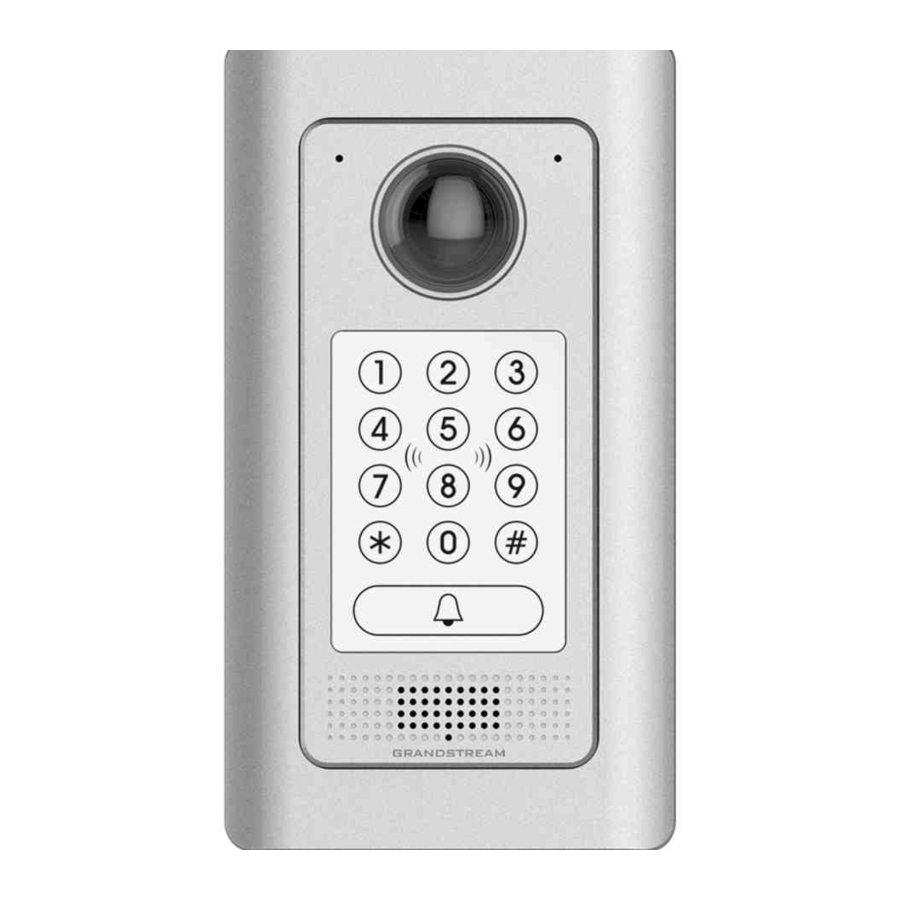

- Page 1 Grandstream Networks, Inc. Connecting GDS3710 with GXV3370 Configuration Guide...
-
Page 2: Table Of Contents
Figure 3: Enable Direct IP Call ........................6 Figure 4: GXV3370 General Settings ......................6 Figure 5: GXV3370 SIP Settings........................7 Figure 6: GXV3370 Connected to GDS3710 through UCM6XXX ..............8 Figure 7: SIP Basic Settings ......................... 9 Figure 8: Door System Settings ........................9 Figure 9: White List ............................. -
Page 3: Introduction
SIP phone, initiate calls from the phone to GDS3710 and get real time audio/video stream. The GDS3710 can be connected with a SIP phone in 2 different ways, either using peering mode (without a SIP server) or through a SIP server. -
Page 4: Peering Scenario
Settings Configuration on the GDS3710 Side The GDS3710 needs to be configured with the IP address of the GXV3370 and related SIP port, and remote PIN for door opening. (the second account will be used on the GXV3370 for this example, when using third or fourth…... -
Page 5: Figure 2: Door System Settings
Parallel Hunting: The configured extensions and/or IP addresses will ring simultaneously (up to 4 simultaneous SIP calls). 3. The Enter the IP address and port number of the GXV3370 under “Number Called When Door Bell Pressed”. P a g e Connecting GDS3710 with GXV3370 Configuration Guide... -
Page 6: Settings Configuration On The Gxv3370 Side
5. Click in order to apply changes. Make sure that the Direct IP Call feature is active from the GDS3710 Web GUI under “SIP Settings SIP Advanced Settings” then click on “Enable Direct IP Call”. Figure 3: Enable Direct IP Call Settings Configuration on the GXV3370 Side The GXV3370 related Account need to be set as “Active”, and correct “Local SIP Port”... -
Page 7: Figure 5: Gxv3370 Sip Settings
Figure 5: GXV3370 SIP Settings P a g e Connecting GDS3710 with GXV3370 Configuration Guide... -
Page 8: Connection Using Sip Server
CONNECTION USING SIP SERVER In case of multiple GDS3710 and GVX3370 are available, a SIP server needs to be set in order to communicate between different devices. Note: We recommend using Stateless SIP server in this type of installations, Stateful SIP servers may not work. -
Page 9: Figure 7: Sip Basic Settings
2. Number Called When Door Bell Pressed (assuming 1001 is the GXV3370 number). 3. Remote PIN to Open the Door. The following figure shows an example of the configuration done. Figure 8: Door System Settings P a g e Connecting GDS3710 with GXV3370 Configuration Guide... -
Page 10: White List Settings
White List Settings Any number calling the GDS3710 extension will have its call auto answered. To restrict allowed numbers to call the GDS3710, user needs to navigate under “SIP Settings White List”. 1. Check Enable White Number List. 2. Click on Add to add numbers allowed to dial the GDS3710. -
Page 11: Figure 11: Gds Settings
Figure 11: GDS Settings Once the user presses the ring button on the GDS3710, an INVITE will be sent to the GXV phone, the GDS3710 stream will be played on the GVX phone and a button will appear on the left side panel named “open”...
