Grandstream Networks GDS3710 Manual

Video Compression H.264 High Profile / Main Profile / Base Profile, Motion JPEG
Image Sensor
Resolution
Lens Type 1/2", F2.5, FOV: 180° (W) x 180° (H)
Day & Night White LEDs with smart brightness control
Max Video Resolution 1920x1080
Max Frame Rate 30 frames per second
Minimum Illumination 0.5Lux
Wide Dynamic Range Yes, up to 120db
Video Bit Rates 32 Kbps to 8 Mbps, Multi-rate for Preview & Recording
Embedded Analytics Motion detection (up to 8 target areas)
Privacy Mask Support Yes (4 zones)
Pre-/Post-Alarm
recording
Snapshots Triggered upon Events, Send via email and/or FTP
Multi-Stream Resolution High-performance streaming server allowing multiple simultaneous

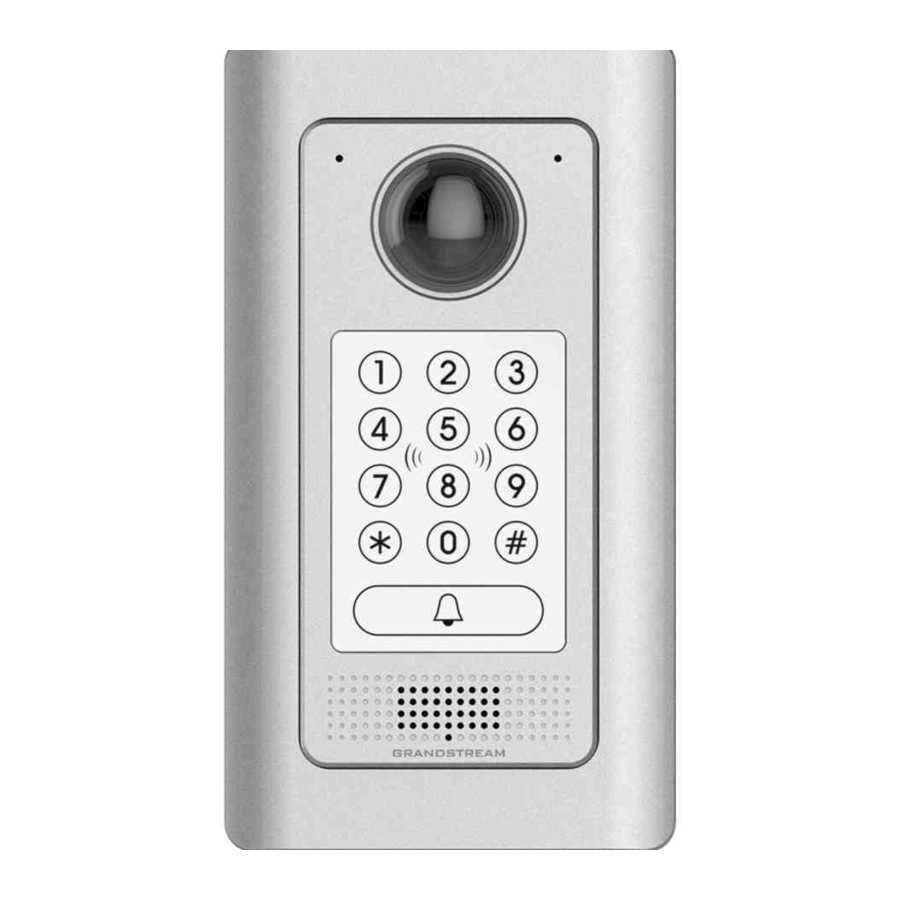

Hemispheric HD IP Video Door Phone
GDS3710
is a hemispheric IP video door phone and a high-definition
IP surveillance camera – ideal for monitoring from wall to wall without
blind spots. Powered by an advanced Image Sensor Processor (ISP)
and state of the art image algorithms, it delivers exceptional
performance in all lighting conditions. The GDS3710 IP video door
phone features industry-leading SIP/VoIP for 2-way audio and video
streaming to smart phones and SIP phones. It contains integrated PoE,
LEDs, HD loudspeaker, RFID, motion detector, lighting control switch
and more. Together with Grandstream videophone, mobile Apps, and
Network Video Recorder (NVR), the GDS3710 provides a powerful
recording and monitoring solution. The GDS3710 can be managed with
GSURF Pro or any ONVIF-compliant video management system. It also
offers a flexible HTTP API for easy integration with 3
and other surveillance systems.
1/2.7", 2 Megapixel, 1920H x 1080V
Yes
accesses
Primary video stream: 1920*1080 resolution for continuous full HD
recording
Secondary video stream: 640*480 resolution for SIP/VoIP video calls
Third video stream: 320*240 resolution for smartphone Apps
GDS3710
rd
party applications
