Grandstream Networks, Inc.

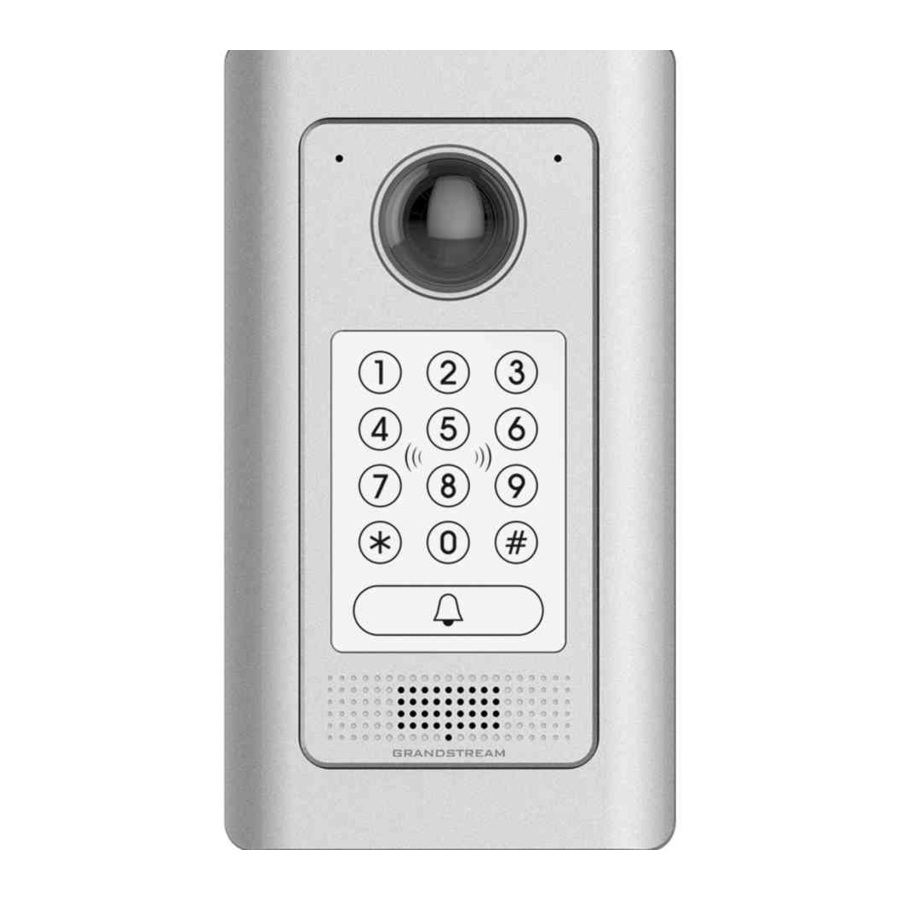

Connecting GDS3710 with GXV32XX
Configuration Guide
https://arttel.ru/shop/ip-domofony/grandstream-gds3710

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDS3710 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grandstream Networks GDS3710

  • Page 1 Grandstream Networks, Inc. Connecting GDS3710 with GXV32XX Configuration Guide https://arttel.ru/shop/ip-domofony/grandstream-gds3710...
  • Page 2: Table Of Contents

    Figure 3: Enable Direct IP Call ........................6 Figure 4: GXV3275 General Settings ......................6 Figure 5: GXV3275 SIP Settings........................6 Figure 6: GXV32XX Connected to GDS3710 through UCM6XXX ............... 7 Figure 7: SIP Basic Settings ......................... 8 Figure 8: Door System Settings ........................8 Figure 9: White List ............................
  • Page 3: Introduction

    SIP phone, initiate calls from the phone to GDS3710 and get real time audio/video stream. The GDS3710 can be connected with a SIP phone in 2 different ways, either using peering mode (without a SIP server) or through a SIP server.
  • Page 4: Peering Scenario

    Settings Configuration on the GDS3710 Side The GDS3710 needs to be configured with the IP address of the GXV3275 and related SIP port, and remote PIN for door opening. (the second account will be used on the GXV3275 for this example, when using third or fourth…...
  • Page 5: Figure 2: Door System Settings

    GDS3710. 4. Click in order to apply changes. Make sure that the Direct IP Call feature is active from the GDS3710 WebGUI under “SIP Settings > SIP Advanced Settings” then click on “Enable Direct IP Call”. P a g e Connecting GDS3710 with GXV32XX Configuration Guide https://arttel.ru/shop/ip-domofony/grandstream-gds3710...
  • Page 6: Settings Configuration On The Gxv3275 Side

    The GXV3275 related Account need to be set as “Active”, and correct “Local SIP Port” need to be configured at the GDS3710 side. These are the basic settings to make the peering scenario work. 1. On the GXV3275 webGUI navigate under “Account > General Settings” and set “Account Active”...
  • Page 7: Connection Using Sip Server

    CONNECTION USING SIP SERVER In case of multiple GDS3710 and GVX32XX are available, a SIP server needs to be set in order to communicate between different devices. The following shows a sample setup. Figure 6: GXV32XX Connected to GDS3710 through UCM6XXX Settings Configuration on the GDS3710 Side A SIP account needs to be registered on the GDS3710 to interact with other devices.
  • Page 8: Figure 7: Sip Basic Settings

    2. Number Called When Door Bell Pressed (assuming 1001 is the GXV3275 number). 3. Remote PIN to Open the Door. The following figure shows an example of the configuration done. Figure 8: Door System Settings P a g e Connecting GDS3710 with GXV32XX Configuration Guide https://arttel.ru/shop/ip-domofony/grandstream-gds3710...
  • Page 9: White List Settings

    White List Settings Any number calling the GDS3710 extension will have its call auto answered. To restrict allowed numbers to call the GDS3710, user needs to navigate under “SIP Settings > White List”. 1. Check Enable White Number List.
  • Page 10: Figure 10: General Settings

    This can be done from the GXV32XX web UI -> Advanced Settings -> GDS Settings and set the following: 1. Click on “Add New Item” 2. Enter the “GDS Name”, it can be any name to identify the GDS3710, in our case its “open”. 3. Enter the “GDS Number”, in our case its “1000”.
  • Page 11: Figure 11: Gds Settings

    Figure 11: GDS Settings Once the user press the ring button on the GDS3710, an INVITE will be sent to the GXV phone, when the user on the GXV side answer the call using “Video Answer”, the GDS3710 stream will be played on the GVX phone and a button will appear on the left side panel named “open”...
