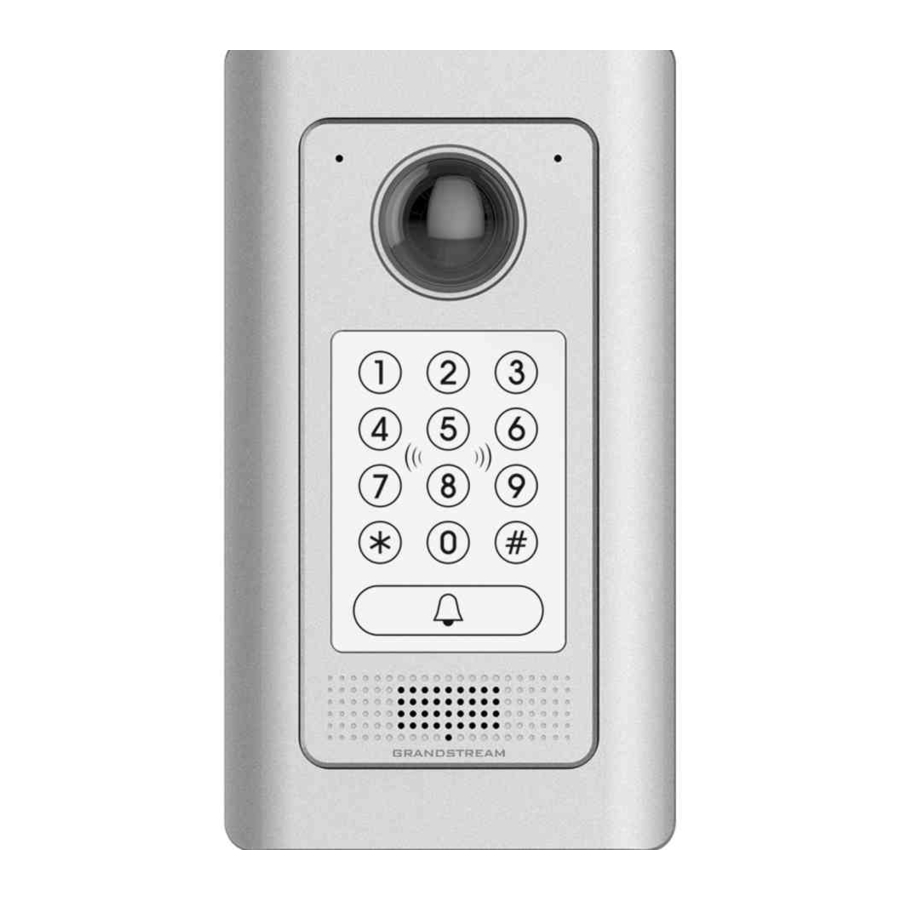

- Page 1 Grandstream Networks, Inc. Connecting GDS3710 with GXP IP Phones Configuration Guide...
-
Page 2: Table Of Contents
Figure 11: GDS Settings ..........................14 Figure 12: GDS3710 Video/Audio Call on GXP2170 .................. 15 Figure 13: GDS3710 Audio Call on GXP1760 (Using SIP Server Scenario) ..........16 Figure 14: GDS3710 Audio Call on GXP1630 in Peering Scenario............16 P a g e... -
Page 3: Supported Devices
SUPPORTED DEVICES Following table shows Grandstream products supporting GDS3710 integration: Supported Model Firmware Audio Video (JPEG) 1.0.4.65 or higher GXP16XX Series 1.0.1.28 or higher GXP17XX Series 1.0.8.49 or higher GXP21XX Series P a g e Connecting GDS3710 with GXP IP Phones Configuration Guide... -
Page 4: Introduction
GDS3710 to get real time Video/Audio stream with GXP21xx IP Phones and only Audio stream with GXP17xx and GXP16xx IP Phones. The GDS3710 can be connected with a SIP phone in 2 different ways, either using peering mode (without a SIP server) or through a SIP server/registrar. -
Page 5: Peering Scenario
PEERING SCENARIO In this scenario, we assume that the GDS3710 is installed on a small warehouse at front door and GXP IP Phone inside to monitor and control the access of the premise. Visitors need to press the doorbell button... -
Page 6: Figure 2: Door System Settings
Figure 2: Door System Settings 6. You need to make sure that the Direct IP Call feature is enabled from the GDS3710 Web GUI under SIP SettingsSIP Advanced SettingsEnable Direct IP Call. P a g e... -
Page 7: Gxp Ip Phones Configuration
The GXP IP Phone related account needs to be set as “Active”, and the “Local SIP Port” needs to match the port configured on GDS3710. Please refer to following steps for configuring the GXP IP Phone in order to interconnect with the GDS3710. -
Page 8: Figure 5: Account(X) Sip Settings
Specifies the System Identification, to identify the GDS3710, in our example its “GDS3710_Front_Door”. • Specifies the System Number which is the GDS3710 number, the system number used in our example is 192.168.6.135. • Configures the Access Password for opening the door remotely and it should match the password configured under “Remote PIN to Open the Door”... -
Page 9: Figure 6: Gds3710 Configuration Settings On Gxp Ip Phone
4. Press button to apply the new settings. Notes: • The GXP21xx/ GXP17xx/ GXP16xx IP Phones support up to 10 GDS3710 items. • GXP16xx and GXP17xx series support audio only. • GXP21xx series support audio and video (JPEG) when integrated with GDS3710. -
Page 10: Connection Using Sip Server
CONNECTION USING SIP SERVER In this scenario, we assume that the GDS3710 is configured with a SIP account and the GXP IP Phone is also configured with a SIP account under the same SIP server. Note: We recommend using Stateless SIP server in this type of installations, Stateful SIP servers may not work. -
Page 11: Figure 8: Sip Basic Settings
Remote PIN to Open the Door: the remote PIN used in our example is “123456”. 2. Click button to apply changes. The following figure shows an example of the configuration. P a g e Connecting GDS3710 with GXP IP Phones Configuration Guide... -
Page 12: Gxp Ip Phone Configuration Settings
Figure 9: Door System Settings GXP IP Phone Configuration Settings A SIP account needs to be registered on the GXP IP Phone side as well to interact with the GDS3710 trough the same SIP server. The GXP IP Phone SIP settings are available under the Web GUIAccountsAccount(x)General Settings. -
Page 13: Figure 10: General Settings
Specifies the System Identification, to identify the GDS3710, in our example its “GDS3710_Front_Door”. • Specifies the System Number which is the GDS3710 number, the system number used in our example is 2002. • Configures the Access Password which is the “Remote PIN to Open the Door” configured on the GDS3710 Web GUI settings. -
Page 14: Figure 11: Gds Settings
Figure 11: GDS Settings Notes: • The GXP21xx/ GXP17xx/ GXP16xx IP Phones support up to 10 GDS3710 items. • GXP16xx and GXP17xx series support audio only. • GXP21xx series support audio and video (JPEG) when integrated with GDS3710. P a g e... -
Page 15: Open Door Feature
OPEN DOOR FEATURE GXP IP Phones offer a powerful integration with GDS3710 Door System and allow users to remotely open the door, initiate calls to the GDS3710 and get real time audio/video or only audio stream. Once someone presses the ring button on the GDS3710, the door system will initiate automatically a call to the configured destination. -
Page 16: Gxp17Xx Ip Phones
GXP17xx IP Phones Figure 13: GDS3710 Audio Call on GXP1760 (Using SIP Server Scenario) GXP16xx IP Phones Figure 14: GDS3710 Audio Call on GXP1630 in Peering Scenario P a g e Connecting GDS3710 with GXP IP Phones Configuration Guide...
