Simplex 49VO-WRF Instructions page 3

TrueAlert Device Reports Reference
Service Port
REPORT 5 : TrueAlert Device Report
POINT ID CUSTOM LABEL
T14-1-1 Location Label . . . up to 40 characters
T14-1-2 Break Room 5
T14-1-3 Boiler Room
T14-1-4 Elec. Room 7

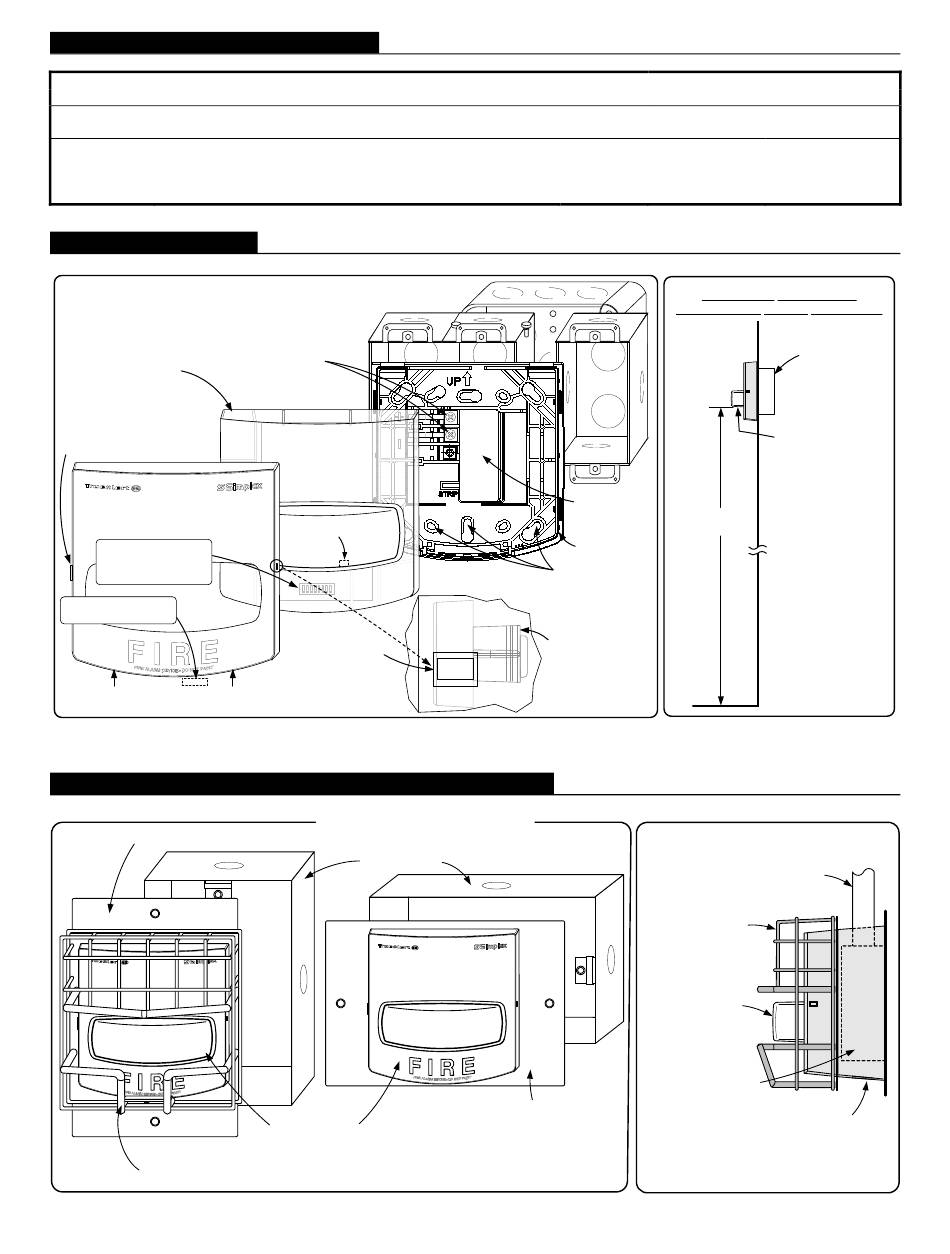

Installation Reference
Mounting is compatible with single gang,
double gang, and 4" (102 mm) square boxes,
1-1/2" (38 mm) deep, supplied separately
Wiring terminals and
Transparent
housing assembly
Removable cover (when
installed, use flat bladed
screwdriver to release
latch on left side)
Address setting DIP
switch, accessible
from rear of housing
Magnetic test location
(bottom of housing)
Electrical test point access holes
(on bottom)
Adapter Plate and Surface Mount Installation Reference
4905-9931 Adapter Plate
4905-9961 Optional Wire Guard
(shown here for reference only, can be used on other mounting options)
connection clips
LED indicator
location
Strobe intensity
viewing slot on
side of appliance
(not to scale)
2975-9145 Box Mounting Reference
2975-9145 Box
TrueAlert ES
Addressable Strobe
DEVICE
TYPE
Wiring access
hole
Mounting plate
Mounting Holes:
Single gang (2)
Double gang (4)
4" square (4)
110
75
Intensity selection
30
plug, accessible
15
from rear of
FACP
housing; factory
135
setting is FACP,
185
controlled by panel
4905-9931 Adapter Plate
3
12:34:56am MON
CANDELA
V/O 15
A/V 110
A/V 75
A/V 135
IMPORTANT! WALL MOUNT
INSTALLATION HEIGHT REFERENCE
Bottom of lens is
either even with, or
slightly above bottom
of compatible boxes
80" (2.03 m)
minimum
NFPA 72 requires
that the entire lens be
not less than 80" and
not greater than 96"
above the finished
floor (confirm with
your local codes)
Surface Mount Side View Reference
(Surface mount conduit and
box shown for reference)
Optional
4905-9961
Wire Guard
TrueAlert ES
Addressable
Strobe
4" square box profile,
1-1/2" (38 mm) deep
Optional surface mount adapter skirt,
1-1/2" deep: 4905-9937, Red;
4905-9940, White (conduit knockouts
are provided on all four sides)
S49VO-0001-3 8/2014
Page 1
18-Aug-14
Electrical
box outline
