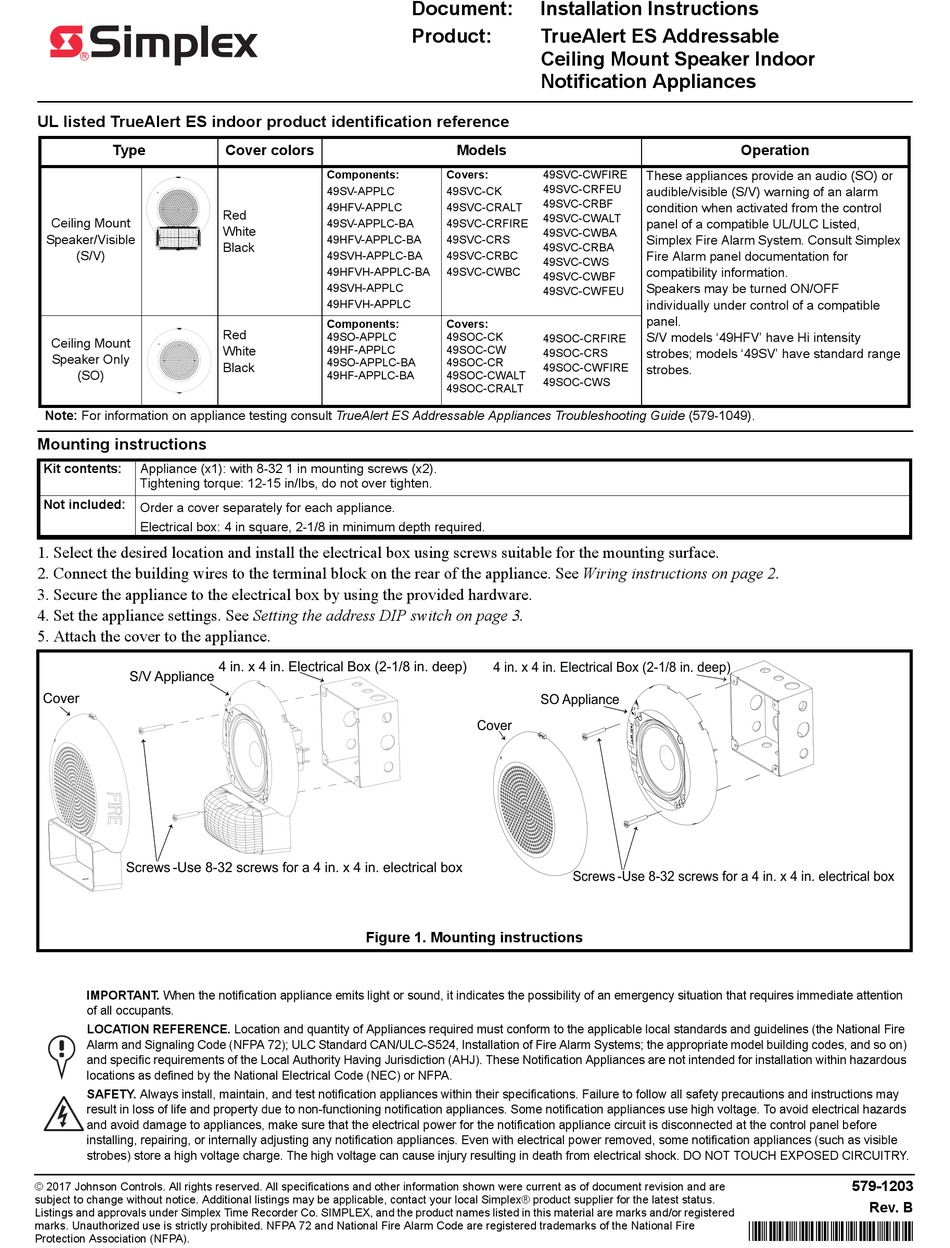

Simplex 49SVC-CWFIRE Installation Instructions

R
UL listed TrueAlert ES indoor product identification reference
Type
Ceiling Mount
Speaker/Visible
(S/V)
Ceiling Mount
Speaker Only
(SO)
Note: For information on appliance testing consult TrueAlert ES Addressable Appliances Troubleshooting Guide (579-1049).

Mounting instructions

Kit contents: Appliance (x1): with 8-32 1 in mounting screws (x2).
Tightening torque: 12-15 in/lbs, do not over tighten.
Not included:
Order a cover separately for each appliance.
Electrical box: 4 in square, 2-1/8 in minimum depth required.
1. Select the desired location and install the electrical box using screws suitable for the mounting surface.
2. Connect the building wires to the terminal block on the rear of the appliance. See Wiring instructions on page 2.
3. Secure the appliance to the electrical box by using the provided hardware.
4. Set the appliance settings. See Setting the address DIP switch on page 3.
5. Attach the cover to the appliance.

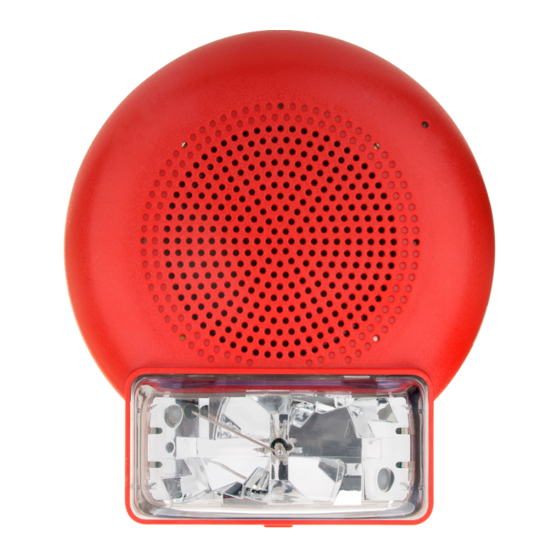

S/V Appliance
Cover
Screws -Use 8-32 screws for a 4 in. x 4 in. electrical box
IMPORTANT. When the notification appliance emits light or sound, it indicates the possibility of an emergency situation that requires immediate attention
of all occupants.
LOCATION REFERENCE. Location and quantity of Appliances required must conform to the applicable local standards and guidelines (the National Fire
Alarm and Signaling Code (NFPA 72); ULC Standard CAN/ULC-S524, Installation of Fire Alarm Systems; the appropriate model building codes, and so on)
and specific requirements of the Local Authority Having Jurisdiction (AHJ). These Notification Appliances are not intended for installation within hazardous
locations as defined by the National Electrical Code (NEC) or NFPA.
SAFETY. Always install, maintain, and test notification appliances within their specifications. Failure to follow all safety precautions and instructions may
result in loss of life and property due to non-functioning notification appliances. Some notification appliances use high voltage. To avoid electrical hazards
and avoid damage to appliances, make sure that the electrical power for the notification appliance circuit is disconnected at the control panel before
installing, repairing, or internally adjusting any notification appliances. Even with electrical power removed, some notification appliances (such as visible
strobes) store a high voltage charge. The high voltage can cause injury resulting in death from electrical shock. DO NOT TOUCH EXPOSED CIRCUITRY.
© 2017 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are
subject to change without notice. Additional listings may be applicable, contact your local Simplex® product supplier for the latest status.
Listings and approvals under Simplex Time Recorder Co. SIMPLEX, and the product names listed in this material are marks and/or registered
marks. Unauthorized use is strictly prohibited. NFPA 72 and National Fire Alarm Code are registered trademarks of the National Fire
Protection Association (NFPA).
Cover colors
Components:
49SV-APPLC
49HFV-APPLC
Red
49SV-APPLC-BA
White
49HFV-APPLC-BA
Black
49SVH-APPLC-BA
49HFVH-APPLC-BA
49SVH-APPLC
49HFVH-APPLC
Components:
Red
49SO-APPLC
White 49HF-APPLC
49SO-APPLC-BA
Black
49HF-APPLC-BA
4 in. x 4 in. Electrical Box (2-1/8 in. deep)
Figure 1. Mounting instructions
Document:

Installation Instructions

Product: TrueAlert ES Addressable
Ceiling Mount Speaker Indoor
Notification Appliances
Models
Covers: 49SVC-CWFIRE
49SVC-CRFEU
49SVC-CK
49SVC-CRBF
49SVC-CRALT
49SVC-CWALT
49SVC-CRFIRE
49SVC-CWBA
49SVC-CRS
49SVC-CRBA
49SVC-CRBC
49SVC-CWS
49SVC-CWBC
49SVC-CWBF
49SVC-CWFEU
Covers:
49SOC-CK
49SOC-CRFIRE
49SOC-CW
49SOC-CRS
49SOC-CR
49SOC-CWFIRE
49SOC-CWALT
49SOC-CWS
49SOC-CRALT
4 in. x 4 in. Electrical Box (2-1/8 in. deep)
SO Appliance
Cover
Screws
Operation
These appliances provide an audio (SO) or
audible/visible (S/V) warning of an alarm
condition when activated from the control
panel of a compatible UL/ULC Listed,
Simplex Fire Alarm System. Consult Simplex
Fire Alarm panel documentation for
compatibility information.
Speakers may be turned ON/OFF
individually under control of a compatible
panel.
S/V models '49HFV' have Hi intensity
strobes; models '49SV' have standard range
strobes.
-Use 8-32 screws for a 4 in. x 4 in. electrical box
*05791203B*
579-1203
Rev. B
