VEB-4x Series Valves Mounting/Repair Kits

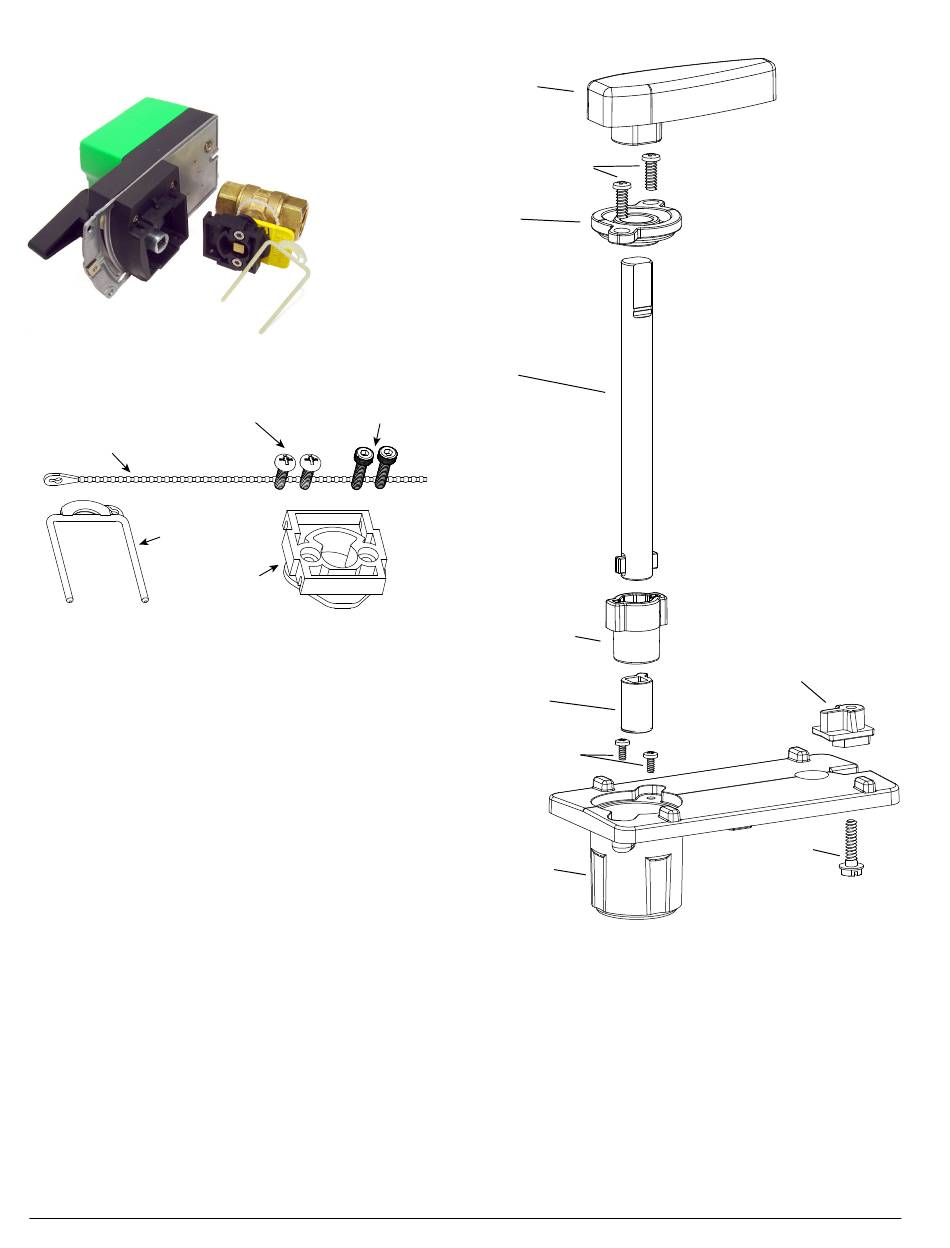

12 mm Screws
(VFB-4303_SX Bodies
and VEB-4303_SDL Valves)
Beaded Tie
Locking
Bail/Clip
Valve Base
The HPO-5074 kit is for adapting valve bodies for
use with (only) "quick mounting" MEP-4xxxV actu-
ators. MEP-4xxxV actuators have an attached handle
and shaft as well as a plastic mounting bracket on
the bottom of the actuator. See the relevant data
sheet for more information.
MEP-4xxx Direct-Coupled Actuators (40 to 90 in-lb.)
HPO-5074
assembled on
a Valve Body
and an MEP-
4xxxV Actuator
15 mm Screws
(VFB-4____BX Bodies
and VEB-4____B__ Valves)
Handle
High-Low Screws
Cover
Shaft
Thermal Break
Sub Shaft
Machine Screws
Plate Mount
The HPO-5073 repair kit is designed to replace link-
ages on VEP-43/45/83/85 and VEB-43/46 ball valves
for use with any standard (not quick-mounting "V"
series) MEP-4xxx actuator:
• VEP-43ABB7xx through VEP-43GBB7xx
• VEP-45A1x7xx through VEP-45H4x7xx
• VEB-43/46 series ending in CK or CF
Hardware for mounting the linkage to the valve, and
the actuator to the linkage, are included with the kit.
The actuator must be ordered separately.
8
Non-Rotation Bracket
Screw
Applications Guide, AN0513A Rev. J
