SECTION 3

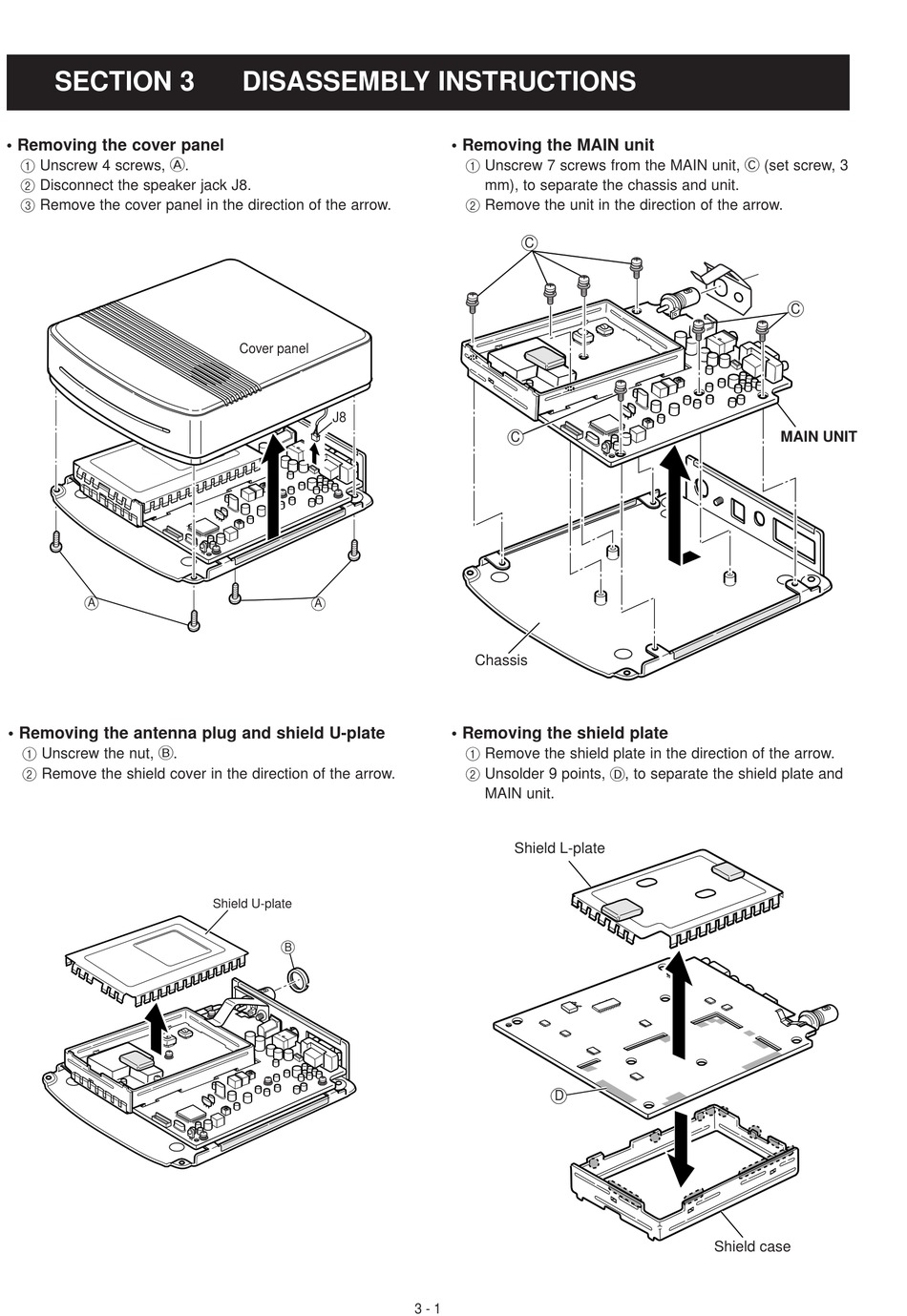

• Removing the cover panel
1 Unscrew 4 screws, A.
2 Disconnect the speaker jack J8.
3 Remove the cover panel in the direction of the arrow.
A
• Removing the antenna plug and shield U-plate
1 Unscrew the nut, B.
2 Remove the shield cover in the direction of the arrow.
DISASSEMBLY INSTRUCTIONS
Cover panel
J8
A
Shield U-plate
B
• Removing the MAIN unit
1 Unscrew 7 screws from the MAIN unit, C (set screw, 3
mm), to separate the chassis and unit.
2 Remove the unit in the direction of the arrow.
C
C
Chassis
• Removing the shield plate
1 Remove the shield plate in the direction of the arrow.
2 Unsolder 9 points, D , to separate the shield plate and
MAIN unit.
Shield L-plate
D
3 - 1
C
MAIN UNIT
Shield case
