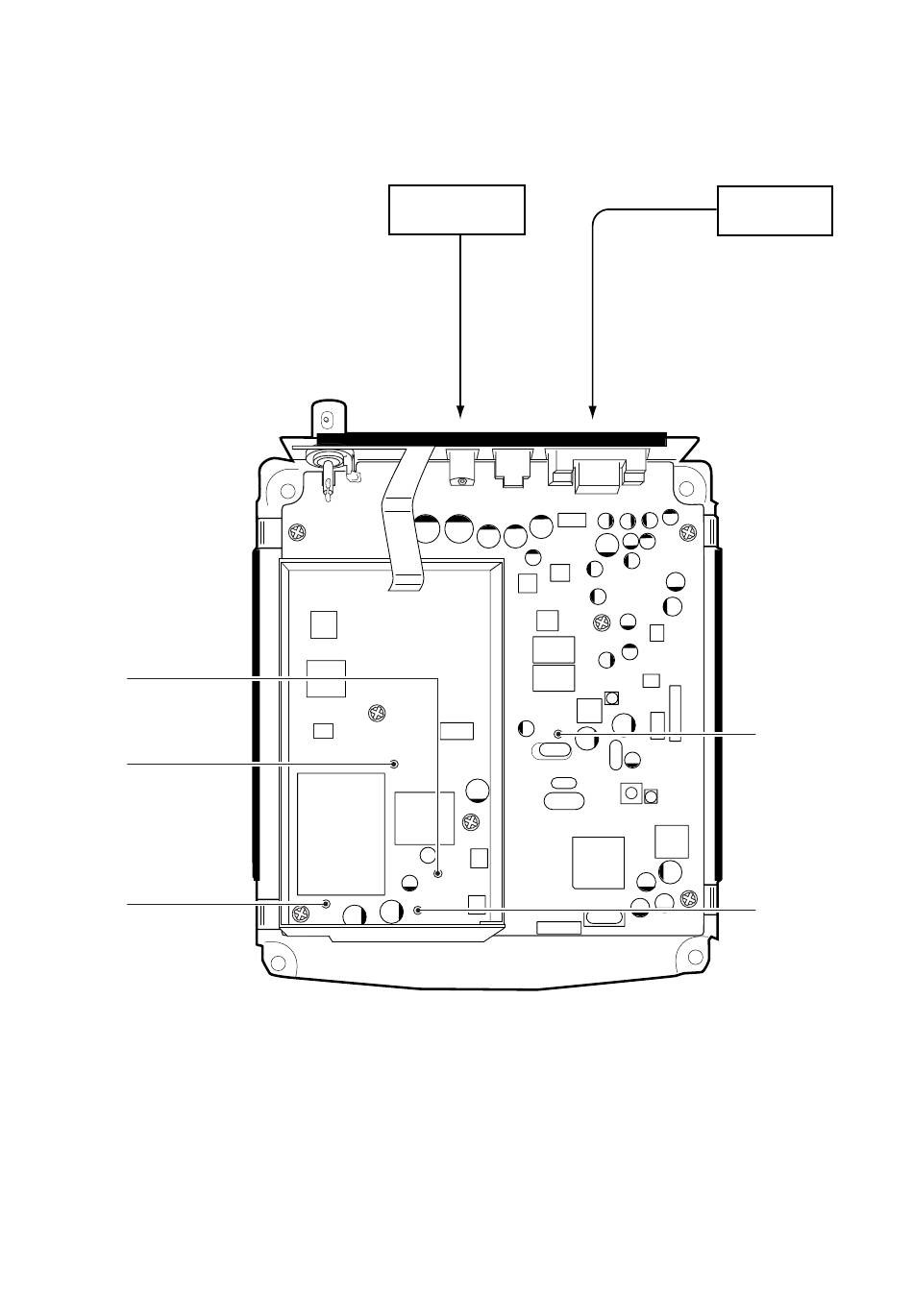

CP4
Reference frequency
check point
CP3
2nd LO lock voltage
check point
CP1
1st LO lock voltage
check point
DC power supply
13.8 V/1.0 A
to DC 13.8 V
5 - 4
to RS-232C port
Computer
CP6
VXO frequency
check point
CP5
LCT voltage
check point
