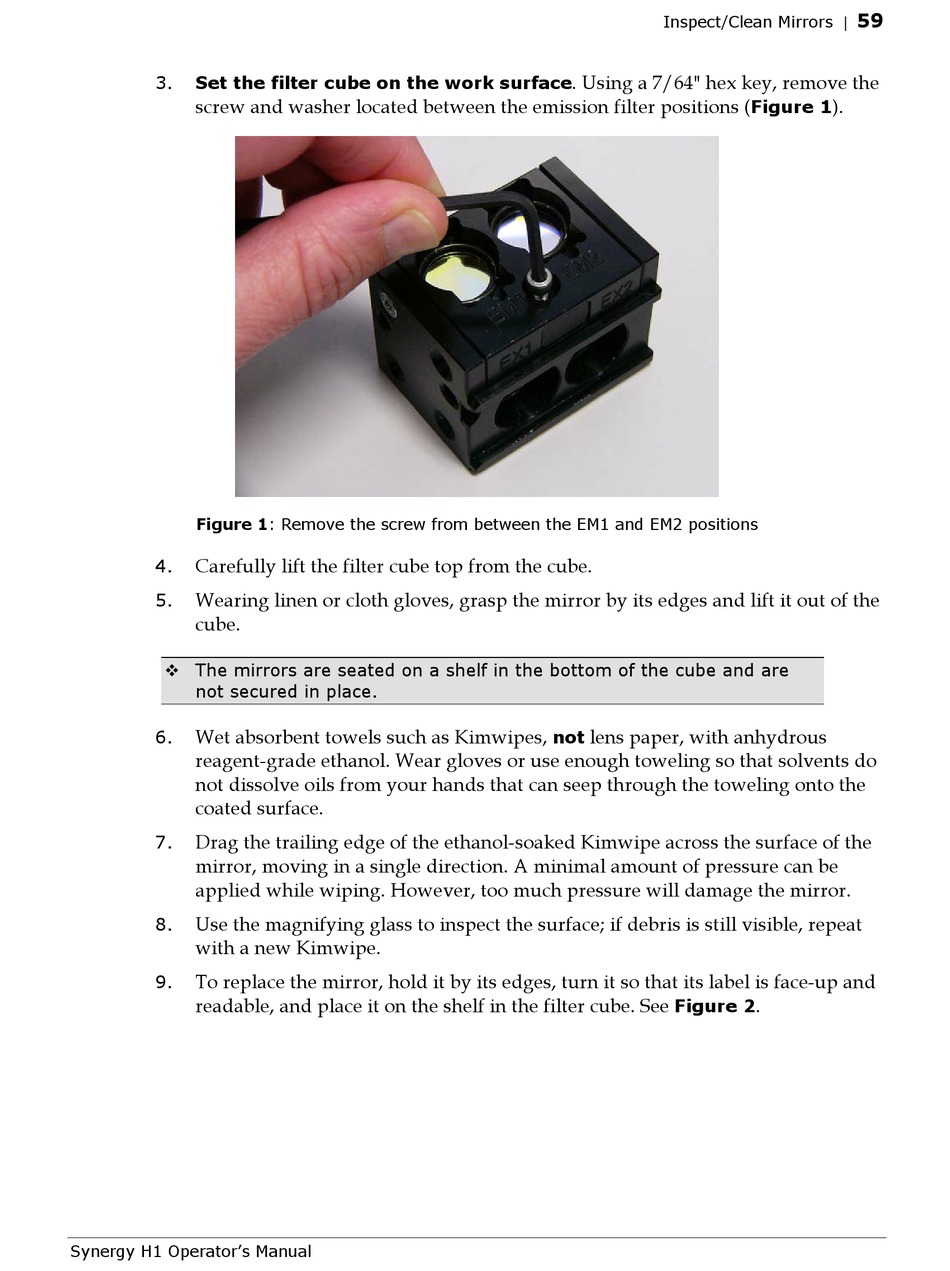

Biotek Synergy H1 Operator's Manual page 79

Set the filter cube on the work surface
3.
screw and washer located between the emission filter positions (
Figure 1: Remove the screw from between the EM1 and EM2 positions
Carefully lift the filter cube top from the cube.
4.
Wearing linen or cloth gloves, grasp the mirror by its edges and lift it out of the
5.
cube.
 The mirrors are seated on a shelf in the bottom of the cube and are
not secured in place.
Wet absorbent towels such as Kimwipes,
6.
reagent-grade ethanol. Wear gloves or use enough toweling so that solvents do
not dissolve oils from your hands that can seep through the toweling onto the
coated surface.
Drag the trailing edge of the ethanol-soaked Kimwipe across the surface of the
7.
mirror, moving in a single direction. A minimal amount of pressure can be
applied while wiping. However, too much pressure will damage the mirror.
Use the magnifying glass to inspect the surface; if debris is still visible, repeat
8.
with a new Kimwipe.
To replace the mirror, hold it by its edges, turn it so that its label is face-up and
9.
readable, and place it on the shelf in the filter cube. See
Synergy H1 Operator's Manual
Inspect/Clean Mirrors |
. Using a 7/64" hex key, remove the
lens paper, with anhydrous
not
Figure 2
59
).
Figure 1
.
