FOX3-KMD H
M
ARDWARE

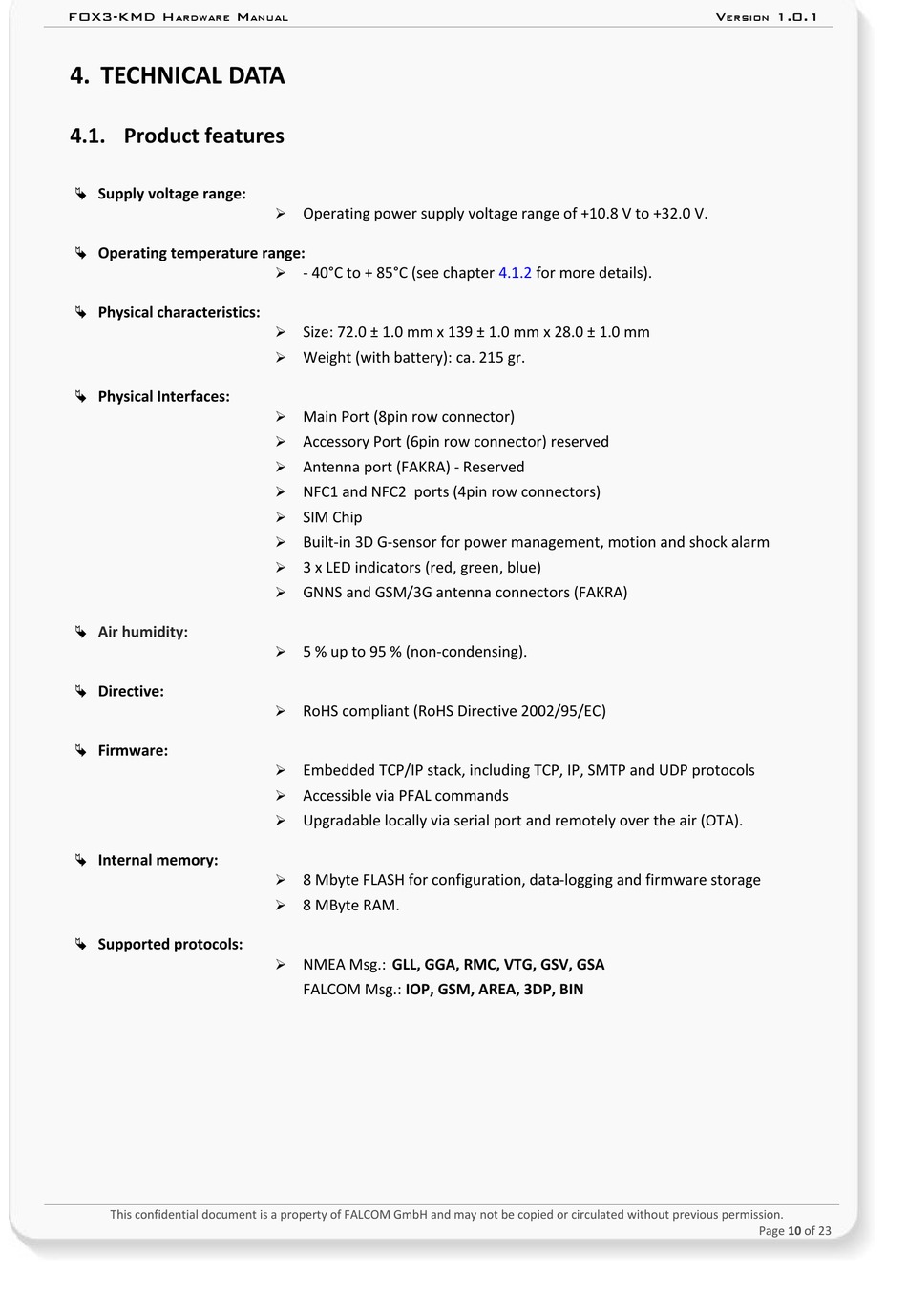

4. TECHNICAL DATA
4.1. Product features
Supply voltage range:
Operating temperature range:
Physical characteristics:
Physical Interfaces:
Air humidity:
Directive:
Firmware:
Internal memory:
Supported protocols:
This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission.
ANUAL
Operating power supply voltage range of +10.8 V to +32.0 V.
➢
- 40°C to + 85°C (see chapter
➢
Size: 72.0 ± 1.0 mm x 139 ± 1.0 mm x 28.0 ± 1.0 mm
➢
Weight (with battery): ca. 215 gr.
➢
Main Port (8pin row connector)
➢
Accessory Port (6pin row connector) reserved
➢
Antenna port (FAKRA) - Reserved
➢
NFC1 and NFC2 ports (4pin row connectors)
➢
SIM Chip
➢
Built-in 3D G-sensor for power management, motion and shock alarm
➢
3 x LED indicators (red, green, blue)
➢
GNNS and GSM/3G antenna connectors (FAKRA)
➢
5 % up to 95 % (non-condensing).
➢
RoHS compliant (RoHS Directive 2002/95/EC)
➢
Embedded TCP/IP stack, including TCP, IP, SMTP and UDP protocols
➢
Accessible via PFAL commands
➢
Upgradable locally via serial port and remotely over the air (OTA).
➢
8 Mbyte FLASH for configuration, data-logging and firmware storage
➢
8 MByte RAM.
➢
NMEA Msg.: GLL, GGA, RMC, VTG, GSV, GSA
➢
FALCOM Msg.: IOP, GSM, AREA, 3DP, BIN
4.1.2
for more details).
V
1.0.1
ERSION
Page 10 of 23
