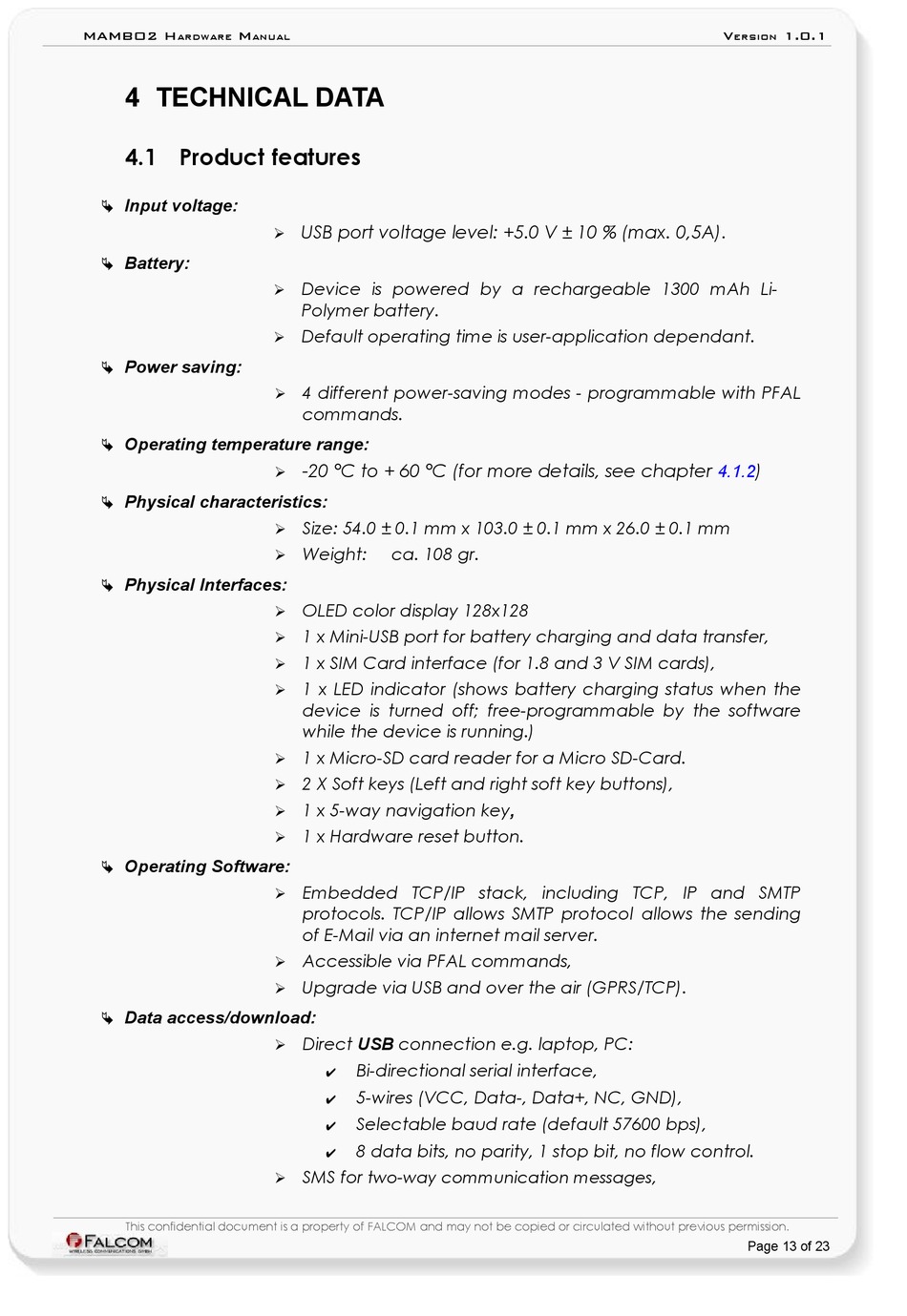

4 TECHNICAL DATA

4.1 Product features

Input voltage:

Battery:

Power saving:

Operating temperature range:

Physical characteristics:

Physical Interfaces:

Operating Software:

Data access/download:

This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
USB port voltage level: +5.0 V ± 10 % (max.
➢
Device is powered by a rechargeable 1300 mAh Li-
➢
Polymer battery.
Default operating time is user-application dependant.
➢
4 different power-saving modes - programmable with PFAL
➢
commands.
-20 °C to + 60 °C (for more details, see chapter
➢
Size: 54.0 ± 0.1 mm x 103.0 ± 0.1 mm x 26.0 ± 0.1 mm
➢
Weight: ca. 108 gr.
➢
OLED color display 128x128
➢
1 x Mini-USB port for battery charging and data transfer,
➢
1 x SIM Card interface (for 1.8 and 3 V SIM cards),
➢
1 x LED indicator (shows battery charging status when the
➢
device is turned off; free-programmable by the software
while the device is running.)
1 x Micro-SD card reader for a Micro SD-Card.
➢
2 X Soft keys (Left and right soft key buttons),
➢
1 x 5-way navigation key,
➢
1 x Hardware reset button.
➢
Embedded TCP/IP stack, including TCP, IP and SMTP
➢
protocols. TCP/IP allows SMTP protocol allows the sending
of E-Mail via an internet mail server.
Accessible via PFAL commands,
➢
Upgrade via USB and over the air (GPRS/TCP).
➢
Direct USB connection e.g. laptop, PC:
➢
Bi-directional serial interface,
✔
5-wires (VCC, Data-, Data+, NC, GND),
✔
Selectable baud rate (default 57600 bps),
✔
8 data bits, no parity, 1 stop bit, no flow control.
✔
SMS for two-way communication messages ,
➢
V 1.0.1
ERSION
0,5A).
)
