FOX3-KMD H
M
ARDWARE

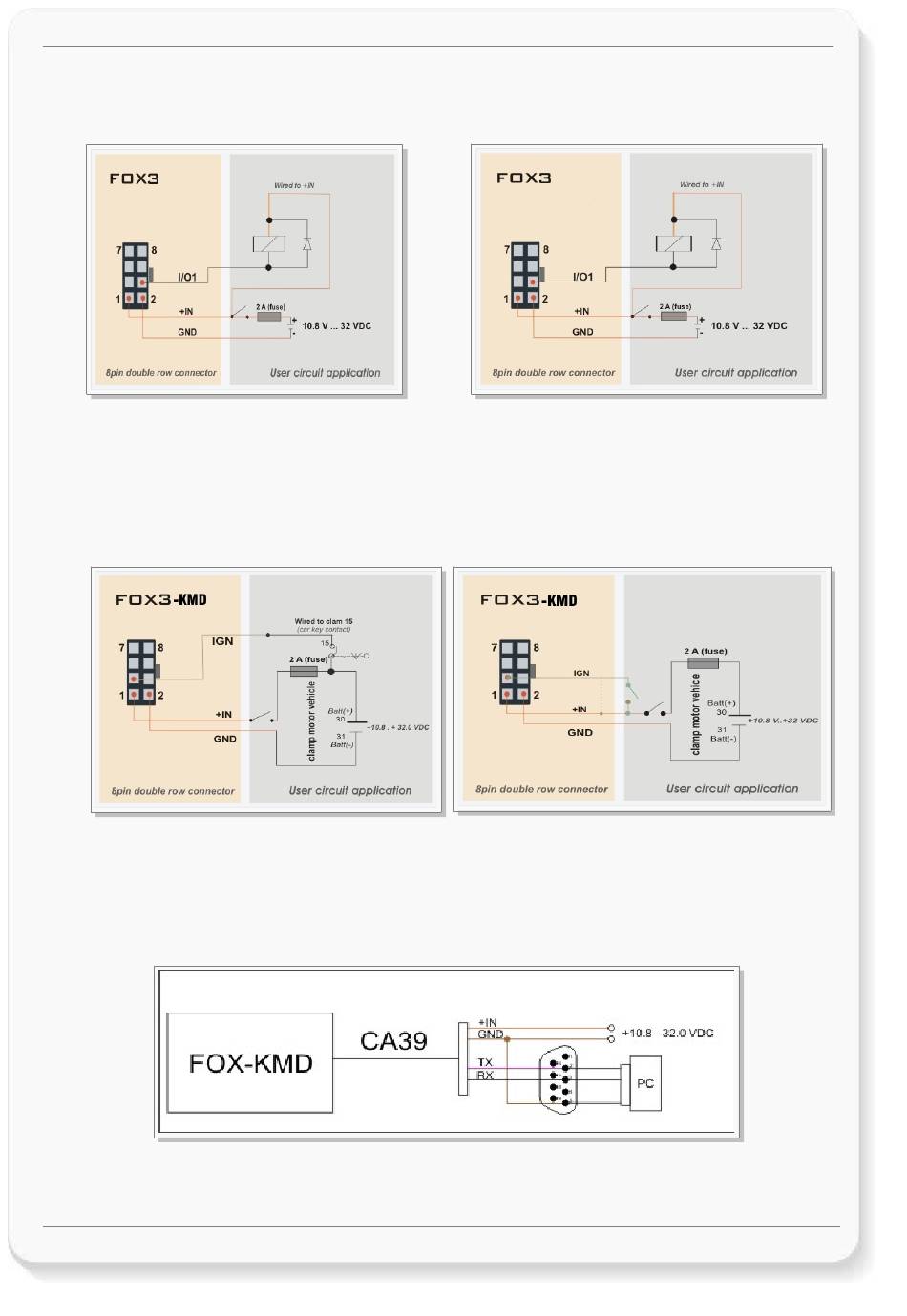

As digital output: connection example 1 (for I/O1):
When used as digital output you can connected via resistors (R) directly to LEDs, Relays etc., which do not
need more power than 100 mA @ up to + 32.0 V DC.
Figure 5:
Connection example 1 when using it to control a Relay (left) or LED (right).
6.1.1.3.
How to use IGN (pin 3)
It is strongly recommended to connect this pin to the ignition key to support the IGN-power saving function
when the vehicle is off. IGN-pin has two functions: 1) w akes up FOX3/-3G from IGN-sleep mode; 2) monitors
the vehicle ignition state, to report the trip START and STOP.
6.1.1.4.
How to connect and communicate with FOX3-KMD
To power on and communicate with FOX3-KMD device, you have to connect the power line to an external power
source ranging from 10.8 – 32VD and connect the serial port lines to your COM port on your PC as shown below.
This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission.
ANUAL
Figure 6:
Monitoring vehicle starter or use sleep modes by IGN line
Figure 7:
Set up your device for communication
V
1.0.1
ERSION
Page 17 of 23
