DISCO-B5-MAGNET H

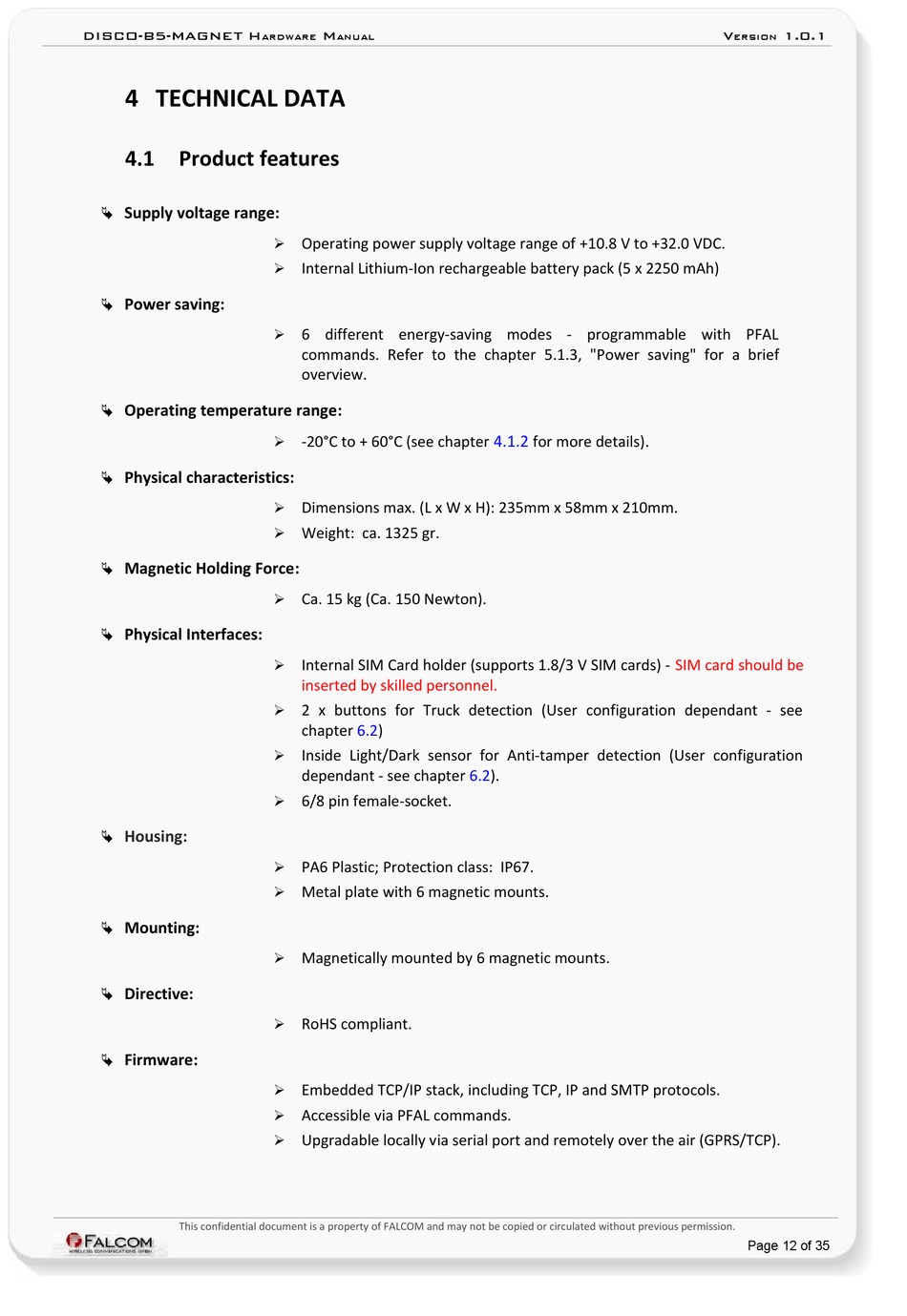

4 TECHNICAL DATA
4.1
Product features
Supply voltage range:
Power saving:
Operating temperature range:
Physical characteristics:
Magnetic Holding Force:
Physical Interfaces:
Housing:
Mounting:
Directive:
Firmware:
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
M
ARDWARE
ANUAL
Operating power supply voltage range of +10.8 V to +32.0 VDC.
➢
Internal Lithium-Ion rechargeable battery pack (5 x 2250 mAh)
➢
6 different energy-saving modes - programmable with PFAL
➢
commands. Refer to the chapter 5.1.3, "Power saving" for a brief
overview.
-20°C to + 60°C (see chapter
➢
Dimensions max. (L x W x H): 235mm x 58mm x 210mm.
➢
Weight: ca. 1325 gr.
➢
Ca. 15 kg (Ca. 150 Newton).
➢
Internal SIM Card holder (supports 1.8/3 V SIM cards) -
➢
inserted by skilled personnel.
2 x buttons for Truck detection (User configuration dependant - see
➢
chapter 6.2)
Inside Light/Dark sensor for Anti-tamper detection (User configuration
➢
dependant - see chapter 6.2).
6/8 pin female-socket.
➢
PA6 Plastic; Protection class: IP67.
➢
Metal plate with 6 magnetic mounts.
➢
Magnetically mounted by 6 magnetic mounts.
➢
RoHS compliant.
➢
Embedded TCP/IP stack, including TCP, IP and SMTP protocols.
➢
Accessible via PFAL commands.
➢
Upgradable locally via serial port and remotely over the air (GPRS/TCP).
➢
4.1.2
for more details) .
V
1.0.1
ERSION
SIM card should be
Page 12 of 35
