6.2. NFC Windscreen (4pin connector)

6.2.1.

NFC Windscreen Port Pinout

PIN NAME
1 +IN
2 GND
3 TX_NFC_1
4 RX_NFC_1

6.3. NFC InCar (4pin connector)

6.3.1.

NFC InCar Port Pinout

PIN NAME DIRECTION
1 +IN
2 GND
3 TX_NFC_2
4 RX_NFC_2
This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission.
ANUAL

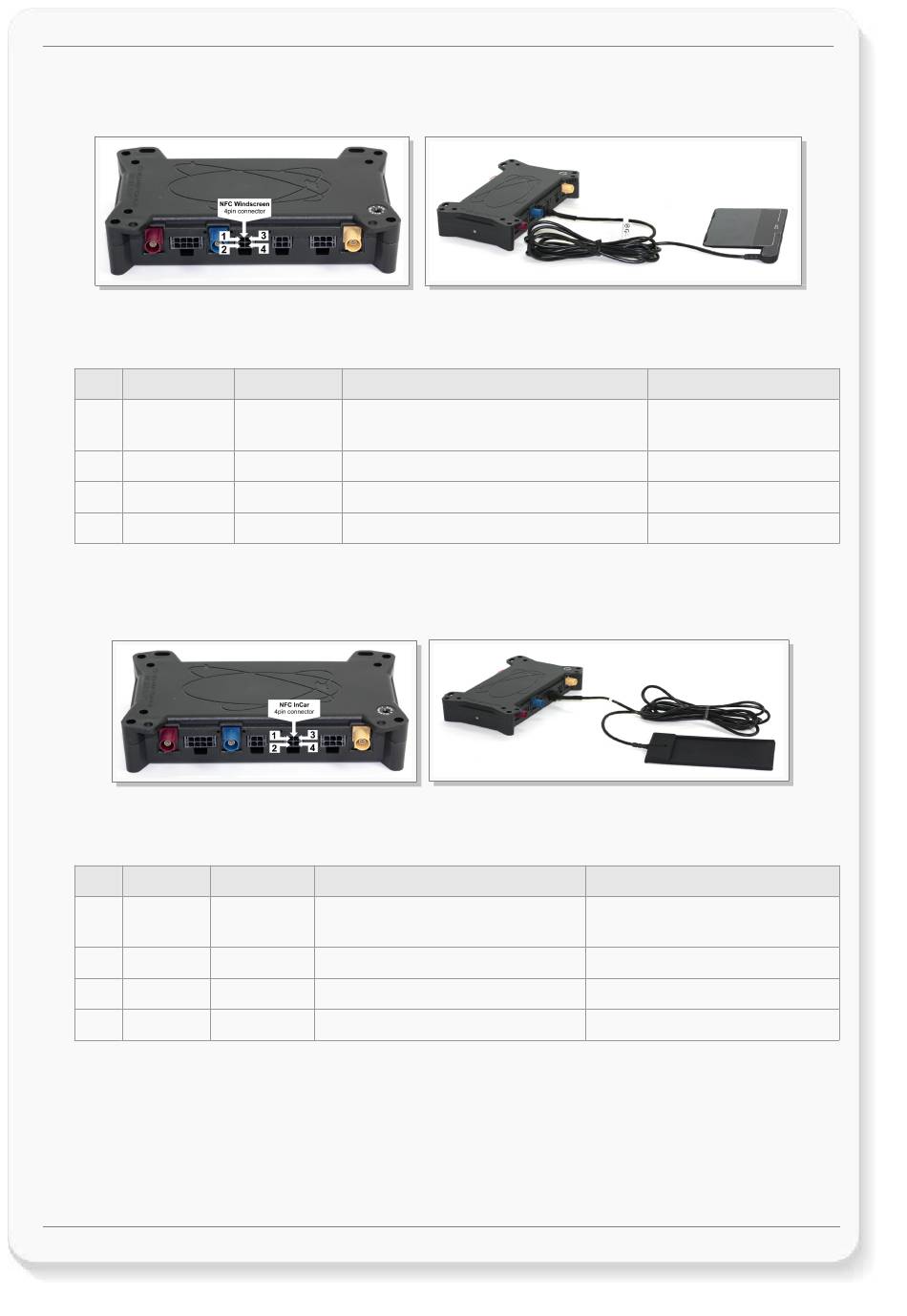

Figure 8:
