Digisol DG-VG2300N User Manual

300mbps wireless vdsl/adsl2/2+
Hide thumbs
Table of Contents

Advertisement

Quick Links

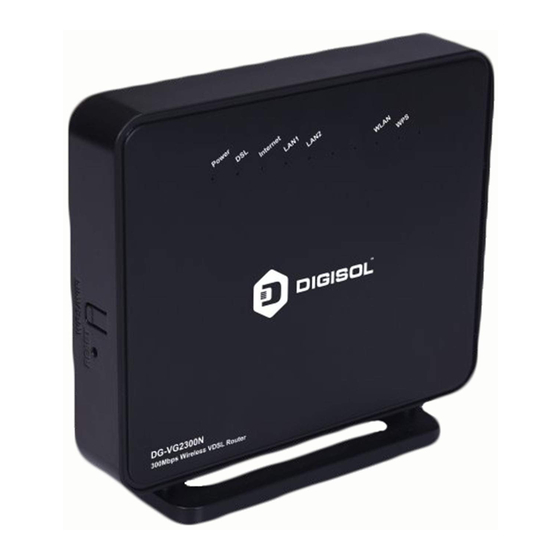

DG-VG2300N
300Mbps Wireless VDSL/ADSL2/2+
Broadband Router
User Manual
V1.0
2018-05-28
As our products undergo continuous development the specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-VG2300N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digisol DG-VG2300N

Summary of Contents for Digisol DG-VG2300N

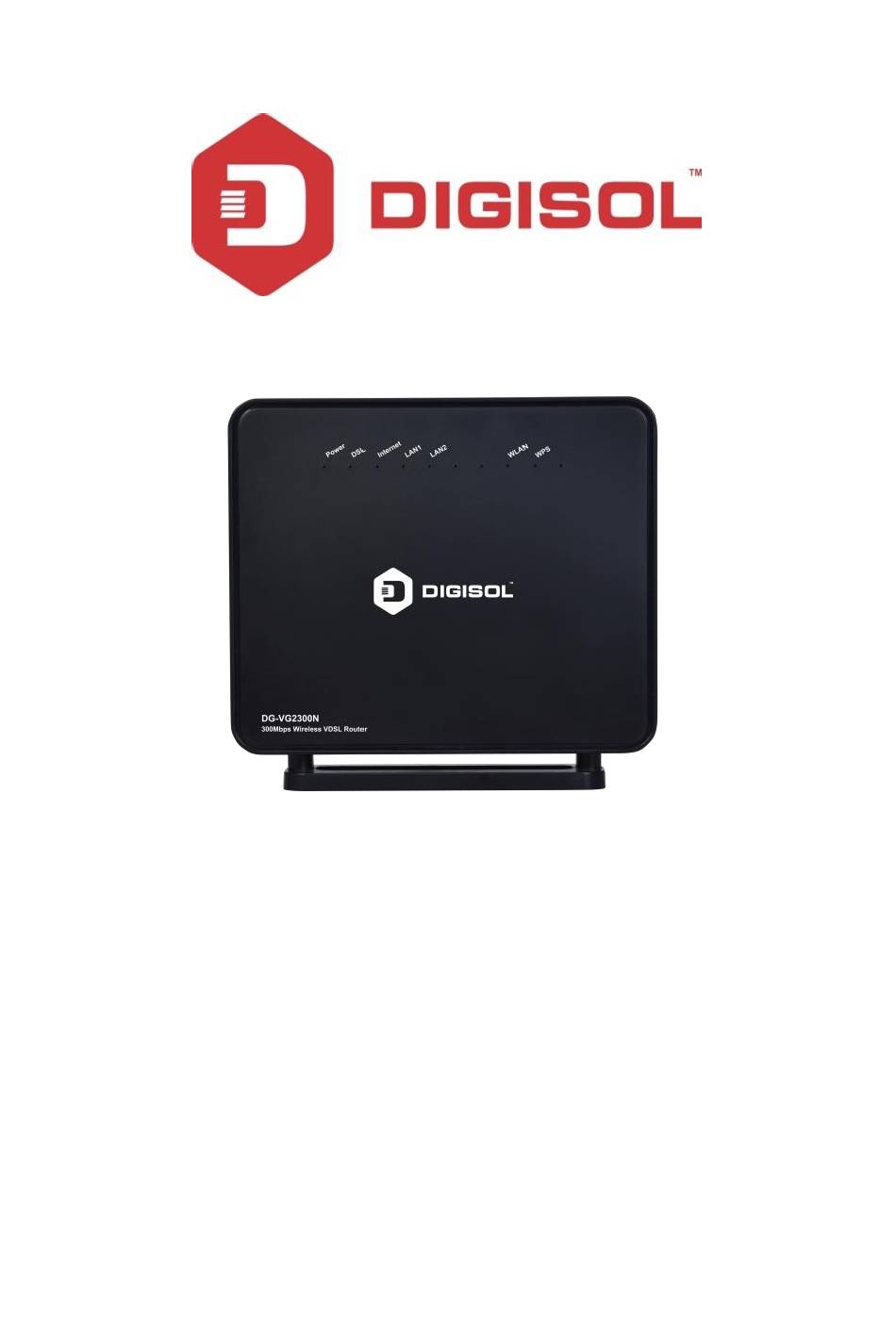

  • Page 1 DG-VG2300N 300Mbps Wireless VDSL/ADSL2/2+ Broadband Router User Manual V1.0 2018-05-28 As our products undergo continuous development the specifications are subject to change without prior notice.
  • Page 2 DG-VG2300N User Manual COPYRIGHT Copyright 2018 by DIGISOL SYSTEMS LTD. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

  • Page 3: Table Of Contents

    DG-VG2300N User Manual INDEX Product Information ………………………………………………………………..5 Safety Precautions ................6 System Requirements ................. 7 Package contents ................7 LEDs and Interfaces ................8 Hardware Installation .................. 11 About the Web Configuration ..............13 Access the Router ................13 Wizard ....................15 Status ....................
  • Page 4 DG-VG2300N User Manual URL Redirect ..................82 Firewall ....................83 MAC Filter .................... 83 IP/Port Filter ..................85 IPv6/Port Filter ..................86 URL Filter..................... 88 ACL ..................... 89 DoS ..................... 92 Parental Control ................... 94 Maintenance ..................95 Update ....................95 Password .....................

  • Page 5: Product Information

    DG-VG2300N User Manual 1. Product Information Thank you for purchasing DG-VG2300N 300Mbps Wireless VDSL/ADSL2/2+ Broadband Router. This router is the best choice for Small office / Home office users, all computers and network devices can share a single Internet connection at high speed. Easy Installation wizard provided with this router is designed to setup an Internet connection in a very short time by accessing the web configuration of the router.

  • Page 6: Safety Precautions

    DG-VG2300N User Manual 1.1 Safety Precautions In order to keep the safety of users and your properties, please follow the safety instructions as mentioned below: 1. This router is designed for indoor use only; DO NOT place this router outdoor.

  • Page 7: System Requirements

    1.3 Package contents Before you start using this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items:  DG-VG2300N VDSL/ADSL 2/2+ Broadband Router.  POTS splitter.  AC power adapter.

  • Page 8: Leds And Interfaces

    DG-VG2300N User Manual 1.4 LEDs and Interfaces Top Panel The following table describes the LEDs of the device. Color Status Indication Power Green Router is switched on and correctly powered. Physical Link is UP. Green ADSL Handshaking Process is ON or ADSL line Blinking unplugged.
  • Page 9 DG-VG2300N User Manual Rear Panel The following table describes the interfaces of the device. Description Item RJ-11 interface for connecting to the ADSL/VDSL interface or a splitter using a telephone line. RJ-45 interface to connect to the Ethernet interface of the computer or the Ethernet LAN 2/1 devices through an Ethernet Cable or LAN cable.
  • Page 10 DG-VG2300N User Manual Side Panel Description Item Press for 2 sec to turn on WPS. Press for 10 sec to turn ON/OFF WiFi. WPS/WiFi Reset to the factory default configuration. Keep the device powered on, and insert Reset a pin into the reset hole for 3 seconds, then release it. The device will reset to the...

  • Page 11: Hardware Installation

    DG-VG2300N User Manual 2. Hardware Installation  Connect the ADSL interface of the device and the router interface of the splitter through a telephone cable. Connect the phone to the Phone interface of the splitter through a telephone cable. Connect the incoming line to the Line interface of the splitter.
  • Page 12 DG-VG2300N User Manual RJ-11 Telephone Sets...

  • Page 13: About The Web Configuration

    DG-VG2300N User Manual 3. About the Web Configuration This section describes how to configure the router by using the Web-based configuration utility. 3.1 Access the Router The following is the detailed description of accessing the router for the first time.
  • Page 14 DG-VG2300N User Manual If you log in as a common user, you can check the status of the router, but cannot configure/modify most of the settings. Note: In the Web configuration page, you can click Apply Changes to save the settings.

  • Page 15: Wizard

    DG-VG2300N User Manual 3.2 Wizard When subscribing to a broadband service, you should be aware of the method by which you are connected to the Internet. Your physical WAN device can be PPP, ADSL or both. The technical information about the properties of your Internet connection is provided by your Internet Service Provider (ISP).
  • Page 16 DG-VG2300N User Manual The following table describes the parameters in this page: Field Description Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255. Enter the correct VPI provided by your ISP.
  • Page 17 DG-VG2300N User Manual PPPoE/PPPoA In the Connection Type page, set the WAN connection type to PPP over Ethernet (PPPoE), the encapsulation mode to LLC/SNAP.
  • Page 18 DG-VG2300N User Manual The following table describes the parameters in this page: Field Description There are three WAN connection types: PPP over ATM Connection Mode (PPPoA), PPP over Ethernet (PPPoE) and 1483 Routed. In this example, the connection type is set to PPPoE.
  • Page 19 DG-VG2300N User Manual After the settings are done, click Next, the page as shown in the following figure appears. If you need finish settings in the fast config, please click "Apply Changes" otherwise please click "Cancel" or "Prev". Note: If the WAN connection type is set to PPPoA, the parameters of the WAN connection type are the same as...
  • Page 20 DG-VG2300N User Manual 1483 Routed In the Connection Type page, set the WAN connection type to 1483 Routed, the encapsulation mode to LLC/SNAP.
  • Page 21 DG-VG2300N User Manual After the settings are done, click Next, the page as shown in the following figure appears For subsequent configuration, refer to the description in the above section PPPoE/PPPoA.

  • Page 22: Status

    DG-VG2300N User Manual 3.3 Status In the navigation bar, choose Status. The Status page that is displayed contains: Device Info, DSL and LED description. Device Info Choose Status > Device Info. The page that is displayed shows the current status and some basic settings of the router, such as firmware version, upstream speed, downstream speed, LAN status, DNS status, ADSL WAN interfaces etc.

  • Page 23: Adsl

    DG-VG2300N User Manual ADSL This page shows the settings of the ADSL Router. Statistics Choose Status > Statistics.

  • Page 24: Statistics

    DG-VG2300N User Manual Statistics Click Statistics in the left pane. The page shown in the following figure appears. In this page, you can view the statistics of each network port.

  • Page 25: Setup

    DG-VG2300N User Manual 3.4 Setup In the navigation bar, click Network. The Network page that is displayed contains WAN, LAN and Wireless. Choose Network > WAN. The WAN page that is displayed contains WAN, Auto PVC, ATM Settings and ADSL Settings.

  • Page 26: Wan

    DG-VG2300N User Manual Click WAN in the left pane, the page shown in the following figure appears. In this page, you can configure WAN interface of your router.
  • Page 27 DG-VG2300N User Manual The following table describes the parameters of this page: Field Description WAN physical type: Ethernet When this option is selected the unit will auto reboot. WAN (Port-LAN1) Default Route Selection You can select Auto or Specified. The virtual path between two points in an ATM network, ranging from 0 to 255.
  • Page 28 DG-VG2300N User Manual  If selected DHCP, the router is a DHCP client, the WAN IP address is assigned by the remote DHCP server. Local IP Address Enter the IP address of WAN interface provided by your ISP. Remote IP Address Enter the remote IP address.
  • Page 29 DG-VG2300N User Manual Auto PVC Click Auto PVC in the left pane, page shown in the following figure appears. In this page, you can get PVC automatically through detecting function, and add or delete the PVC that you want or do not want.
  • Page 30 DG-VG2300N User Manual ATM Settings Click ATM Settings in the left pane, the page shown in the following figure appears. In this page, you can configure the parameters of the ATM, including VPI, VCI, QoS, PCR, CDVT, SCR and MBS.
  • Page 31 DG-VG2300N User Manual ADSL Settings Click ADSL Settings in the left pane, the page shown in the following figure appears. In this page, you can select the ADSL modulation. Mostly, try to retain the factory default settings. The router supports these modulations: G.Lite, G.Dmt, T1.413, ADSL2 and ADSL2+.

  • Page 32: Lan

    DG-VG2300N User Manual Choose Network > LAN. The LAN page that is displayed contains LAN IP, DHCP and DHCP Static IP. Click LAN IP in the left pane, the page shown in the following figure appears. In this page, you can change the IP address of the router. The default IP address is 192.168.1.1, which is the...
  • Page 33 DG-VG2300N User Manual The following table describes the parameters of this page: Field Description Enter the IP address of LAN interface. It is recommended to use an IP Address address from a block that is reserved for private use. This address block for example is 192.168.1.1 - 192.168.1.254.
  • Page 34 DG-VG2300N User Manual DHCP Dynamic Host Configuration Protocol (DHCP) allows the individual PC to obtain the TCP/IP configuration from the centralized DHCP server. You can configure this router as a DHCP server or disable it. The DHCP server can assign IP address, IP default gateway and DNS server to DHCP clients. This router can also act as a DHCP server (DHCP Relay) where it relays IP address assignment from an actual real DHCP server to clients.
  • Page 35 DG-VG2300N User Manual The following table describes the parameters of this page: Field Description If set to DHCP Server, the router can assign IP addresses, IP default gateway and DHCP Mode DNS Servers to the host in Windows95, Windows NT and other operation systems that support the DHCP client.
  • Page 36 DG-VG2300N User Manual Click Show Client in the DHCP Mode page, the page shown in the following figure appears. You can view the IP address assigned to each DHCP client. The following table describes the parameters and buttons in this page:...
  • Page 37 DG-VG2300N User Manual Click Set Vendor Class IP Range in the DHCP Mode page, the page as shown in the following figure appears. In this page, you can configure the IP address range based on the device type. In the DHCP Mode field, choose None. The page shown in the following figure appears.
  • Page 38 DG-VG2300N User Manual In the DHCP Mode field, choose DHCP Relay. The page shown in the following figure appears. The following table describes the parameters and buttons of this page: Field Description If set to DHCP Relay, the router acts a DHCP Server and relays the DHCP DHCP Mode requests and responses between the remote server and the client.
  • Page 39 DG-VG2300N User Manual DHCP Static Click DHCP Static IP in the left pane, the page shown in the following figure appears. You can assign the IP addresses on the LAN to the specific individual PCs based on their MAC address.
  • Page 40 DG-VG2300N User Manual LAN IPv6 Click LAN IP in the left pane, the page shown in the following figure appears. In this page, you can change the IP address of the router. The default IP address is 192.168.1.1, which is the private IP address of the...
  • Page 41 DG-VG2300N User Manual The following table describes the RA parameters of this page. Field Description Global Address Specify the LAN global ipv6 address, which may be assigned by ISP. RA Setting Enable Enable or disable the Router Advertisement feature. Enable or disable the “Managed address configuration” flag in RA packet.
  • Page 42 DG-VG2300N User Manual Field Description “None”: Close dhcpv6 server. “Manual”: dhcpv6 server is opened and user specifies the dhcpv6 server address pool and other parameters. “Auto”: dhcpv6 server is opened and it can use Wan dhcp-pd prefix to generate address pool.

  • Page 43: Wireless

    DG-VG2300N User Manual Wireless Choose Setup > Wireless. The WLAN page that is displayed contains Basic, Security, MBSSID, Access Control List, Advanced, WPS and WDS. Basic Choose Wireless > Basic and the following page appears. In this page, you can configure the parameters for...
  • Page 44 DG-VG2300N User Manual The following table describes the parameters of this page: Field Description Choose the working mode of the router. You can choose from drop-down list. Band Choose the network mode of the router, which varies according to the software.
  • Page 45 DG-VG2300N User Manual Security Choose Wireless > Security and the following page appears. The following table describes the parameters of this page: Field Description Configure the wireless encryption mode. You can choose None, WEP, WPA (TKIP), WPA (AES), WPA2 (AES), WPA2 (TKIP) or WPA2 Mixed.
  • Page 46 DG-VG2300N User Manual improved data encryption. Select Personal (Pre-Shared Key), enter the pre-shared key in the Pre-Shared Key field. Select Enterprise (RADIUS); enter the port, IP address and password of the Radius server. WPA Authentication Mode You need to enter the username and password provided by the Radius server when the wireless client connects to the router.
  • Page 47 DG-VG2300N User Manual MBSSID Choose Wireless > MBSSID and the following page appears. In this page, you can configure the multiple SSID on the access point. It supports four virtual access points (VAPs). It is a unique name to identify the router in the wireless LAN.
  • Page 48 DG-VG2300N User Manual Access Control List Choose WLAN > Access Control List and the following page appears. In this page, you can configure the access control of the wireless clients. Choose Allow Listed as the access control mode to enable white list function. Only the devices whose MAC addresses are listed in the Current Access Control List can access the router.

  • Page 49: Advanced

    DG-VG2300N User Manual 3.5 Advanced Choose WLAN > Advanced and the following page appears. In this page, you can configure the wireless advanced parameters. It is recommended to use the default parameters. Note: The parameters in the Advanced link are modified by the professional personnel, it is recommended to keep the default values.
  • Page 50 DG-VG2300N User Manual  In Shared key, the wireless client connects to the router using the shared key.  The default is set to Auto, which allows either Open System or Shared Key authentication to be used. This value should remain at its default setting of 2346. It specifies the maximum size for a packet before data is fragmented into multiple packets.
  • Page 51 DG-VG2300N User Manual Wi-Fi Multicast to Enable it to use unicast to transmit multicast packets. Unicast Aggregation It is applied when the destination end of all MPDU are for one STA. It is not recommended to enable GI in obvious environment of Multi-path Short GI effect.

  • Page 52: Routing

    DG-VG2300N User Manual Advanced In the navigation bar, click Advanced. In the Advanced page that is displayed contains Routing, NAT, QoS, CWMP, Port Mapping and Others. Routing Choose Advance > Routing, and the page shown in the following figure appears. The page that is displayed contains Static Route, IPv6 Static Route and RIP.
  • Page 53 DG-VG2300N User Manual The following table describes the parameters and buttons of this page: Field Description Enable Select it to use static IP routes. Destination Enter the IP address of the destination device. Subnet Mask Enter the subnet mask of the destination device.
  • Page 54 DG-VG2300N User Manual IPv6 Static Route Click IPv6 Static Route in the left pane, and the page shown in the following figure appears. This page is used to configure the routing information. You can add or delete IP routes. The following table describes the parameters and buttons of this page.
  • Page 55 DG-VG2300N User Manual Click RIP in the left pane, the page shown in the following figure appears. If you are using this device as a RIP-enabled router to communicate with others using Routing Information Protocol (RIP), enable RIP. This page is used to select the interfaces on your devices that use RIP, and the version of the protocol used.

  • Page 56: Nat

    DG-VG2300N User Manual choose RIP1, RIP2 or Both. Choose RIP1 indicates the router receives RIP v1 messages. Choose RIP2 indicates the router receives RIP v2 messages. Choose Both indicates the router receives RIP v1 and RIP v2 messages. Send Version The working mode for sending RIP messages.
  • Page 57 DG-VG2300N User Manual Note: DMZ when enabled, the remote access service of the Router web page will be disabled. As an alternative, you can use the port forwarding for that IP address/Port. Please contact technical support for any technical help.
  • Page 58 DG-VG2300N User Manual Virtual Server Click Virtual Server in the left pane, and the page shown in the following figure appears. The following table describes the parameters of this page. Field Description You can select the common service type, for example, AUTH, DNS or FTP.
  • Page 59 DG-VG2300N User Manual can choose TCP or UDP. WAN Setting You can choose Interface or IP Address. WAN Interface Choose the WAN interface that will apply virtual server. WAN Port Choose the access port on the WAN. LAN Open Port Enter the port number of the specified service type.
  • Page 60 DG-VG2300N User Manual NAT Exclude IP Click NAT Exclude IP in the left pane, and the page shown in the following figure appears. In the page, you can configure some source IP addresses which use the purge route mode when accessing internet through the specified interface.
  • Page 61 DG-VG2300N User Manual Port Trigger Click Port Trigger in the left pane, and the page shown in the following figure appears.
  • Page 62 DG-VG2300N User Manual Click the Usual Application Name drop-down menu to choose the application you want to setup for port triggering. When you have chosen an application the default Trigger settings will populate the table below. If the application you want to setup isn’t listed, click the User-defined Application Name radio button and type in a name for the trigger in the Custom application field.
  • Page 63 DG-VG2300N User Manual NAT IP Mapping NAT is short for Network Address Translation. The Network Address Translation Settings window allows you to share one WAN IP address for multiple computers on your LAN. Click NAT IP Mapping in the left pane, the page shown in the following figure appears.

  • Page 64: Qos

    DG-VG2300N User Manual Choose Advanced > QoS, and the page shown in the following figure appears. Entries in the QoS Rule List are used to assign the precedence for each incoming packet based on physical LAN port, TCP/UDP port number, source IP address, destination IP address and other information.
  • Page 65 DG-VG2300N User Manual The following table describes the parameters and buttons of this page: Field Description Source IP The IP address of the source data packet. Source Mask The subnet mask of the source IP address. Destination IP The IP address of the destination data packet.
  • Page 66 DG-VG2300N User Manual Source Port The port of the source data packet. Destination Port The port of the destination data packet. Protocol The protocol responds to the IP QoS rules. You can choose TCP, UDP, or ICMP. Phy Port The LAN interface responds to the IP QoS rules.
  • Page 67 DG-VG2300N User Manual IP QoS Traffic Shaping Entries in this table are used for traffic control.

  • Page 68: Cwmp

    DG-VG2300N User Manual CWMP TR-069 is a protocol for communication between a CPE and Auto-Configuration Server (ACS). Choose Advanced > CWMP, and the page shown in the following page appears. In this page, you can configure the TR-069 CPE.
  • Page 69 DG-VG2300N User Manual The following table describes the parameters of this page: Field Description The URL of the auto-configuration server to connect to. User Name The user name for logging in to the ACS. Password The password for logging in to the ACS.

  • Page 70: Port Mapping

    DG-VG2300N User Manual Port mapping Choose Advanced > Port Mapping, and the page shown in the following figure appears. In this page, you can bind the WAN interface and the LAN interface to the same group. The procedure for manipulating a mapping group is as follows: ...

  • Page 71: Others

    DG-VG2300N User Manual Others Bridge Setting Choose Advanced > Others>Bridge Setting, and the page shown in the following figure appears. This page is used to configure the bridge parameters. You can change the settings or view some information on the bridge and its attached ports.
  • Page 72 DG-VG2300N User Manual Click Show MACs, and the page shown in the following figure appears. This table shows a list of learned MAC addresses for this bridge. Client Limit Choose Client Limit in the left pane, and the page shown in the following figure appears. This page is used...
  • Page 73 DG-VG2300N User Manual Tunnel Choose Tunnel in the left pane, and the page shown in the following figure appears. You may configure tunnels to connect to ipv4 and ipv6 networks. The following table describes the parameters and button of this page.
  • Page 74 DG-VG2300N User Manual Telnet This page is used to configure telnet function. Others Choose Others in the left pane, and the page shown in the following figure appears. You can enable half bridge so that the PPPoE or PPPoA connection will be set to Continuous.

  • Page 75: Service

    DG-VG2300N User Manual 3.6 Service In the navigation bar, click Service. The Service page that is displayed contains IGMP, UPNP, SNMP, DNS, DDNS, FTP server. IGMP IGMP Proxy Choose Service > IGMP Proxy, and the page shown in the following figure appears. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces.
  • Page 76 DG-VG2300N User Manual Field Description The Robust Count allows tuning for expected packet loss on a Robust Count network. By default, the value is set to 2. This parameter indicates last member query interval. It is the Last member query...

  • Page 77: Mld

    DG-VG2300N User Manual MLD Proxy and snooping can be configured here. UPnP Choose Service > UPnP, and the page shown in the following figure appears. This page is used to configure UPnP. The system acts as a daemon after you enable it.

  • Page 78: Snmp

    DG-VG2300N User Manual SNMP This page is used to configure the SNMP protocol. Here you may change the setting for system description, trap IP address, community name, etc. The following table describes the parameters and buttons of this page: Description Field Select it to enable SNMP function.

  • Page 79: Dns

    DG-VG2300N User Manual Enter the trap IP address. The trap information is sent to the Trap IP Address corresponding host. Community Name The network administrators must use this password to read the (Read-only) information of this router. Community Name The network administrators must use this password to configure the (Read-Write) information of the router.

  • Page 80: Ipv6 Dns

    DG-VG2300N User Manual The following table describes the parameters and buttons of this page: Field Description Select it, the router accepts the first received DNS assignment from Attain DNS one of the PPPoA, PPPoE or 1483 Routed enabled PVC(s) during the Automatically connection establishment.

  • Page 81: Ddns

    DG-VG2300N User Manual the secondary and the tertiary DNS server. Apply Changes Click it to save the settings of this page. Reset Selected Click it to start configuring the parameters in this page. DDNS Click DDNS in the left pane, and the page shown in the following figure appears. This page is used to configure the dynamic DNS address from DynDNS.org or TZO.

  • Page 82: Url Redirect

    DG-VG2300N User Manual The following table describes the parameters of this page: Field Description Choose the DDNS provider name. You can choose DynDNS.org, TZO DDNS provider or NO-IP. Host Name The DDNS identifier. Interface Select the interface form the list.

  • Page 83: Firewall

    DG-VG2300N User Manual 3.7 Firewall Choose Firewall. The Firewall page that is displayed contains MAC Filter, IP/Port Filter, URL Filter, ACL, DoS and Parental Control. MAC Filter Click MAC Filter in the left pane, and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to Internet through the gateway.
  • Page 84 DG-VG2300N User Manual Field Description Outgoing Select default Allow OR Deny for Outgoing policy. Default Policy Incoming Select default Allow OR Deny for Incoming policy. Default Policy Direction Select Incoming or Outgoing direction. Action Select Allow or Deny for MAC filter entry.

  • Page 85: Ip/Port Filter

    DG-VG2300N User Manual IP/Port Filter Click IP/Port Filter in the left pane, and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets through the gateway. These filters are helpful in securing or restricting your local network.

  • Page 86: Ipv6/Port Filter

    DG-VG2300N User Manual Address Mask Address Type the subnet mask address. S-Port Type the Source port range. D-Port Type the destination port range. Enable Select check box to enable the rule or uncheck to disable the rule. IPv6/Port Filter Click IPv6/Port Filter in the left pane, and the page shown in the following figure appears. Entries in this table are used to restrict certain types of ipv6 data packets from your local network to the Internet through the Gateway.
  • Page 87 DG-VG2300N User Manual Field Description Rule Action Select Permit to Allow packet route and select Deny to stop the packet. Protocol Select the Protocol type for a rule. Direction Select Upstream or Downstream direction. Icmp6Type Select the ICMP version. Source IPv6 Type the IPv6 address of source device or host.

  • Page 88: Url Filter

    DG-VG2300N User Manual URL Filter Click URL Filter in the left pane, and the page shown in the following figure appears. This page is used to block a fully qualified domain name, such as tw.yahoo.com and filtered keyword. You can add or delete the filtered keyword.

  • Page 89: Acl

    DG-VG2300N User Manual Choose Firewall > ACL, the page shown in the following figure appears. In this page, you can permit the data packets from LAN or WAN to access the router. You can configure the IP address for Access Control List (ACL).
  • Page 90 DG-VG2300N User Manual The following table describes the parameters and buttons of this page: Field Description Select the router interface. You can select LAN or WAN. In this example, Direction Select LAN is selected. LAN ACL Switch Select it to enable or disable ACL function.
  • Page 91 DG-VG2300N User Manual IPv6 ACL Configuration You can select which services are accessible from LAN or WAN. Entries in this ACL table are used to permit certain types of data packets from your local network or internet network to the gateway. Using of such access control can be helpful in securing or restricting the Gateway...

  • Page 92: Dos

    DG-VG2300N User Manual Denial-of-Service Attack (DoS attack) is a type of attack on a network that is designed to bring the network to its knees by flooding it with useless traffic. A denial-of-service attack (DoS attack) is an attempt to make a computer resource unavailable to its intended users.
  • Page 93 DG-VG2300N User Manual...

  • Page 94: Parental Control

    DG-VG2300N User Manual Parental Control This page is designed to help control children’s time spent online. The specified PC can only access to internet in the specified time. Note: Before this feature could work appropriately, make sure the system time is right. For detailed...

  • Page 95: Maintenance

    DG-VG2300N User Manual 3.8 Maintenance In the navigation bar, click Maintenance. The Maintenance page that is displayed contains Update, Password, Reboot, Time, Log and Diagnostics. Update Choose Admin > Update. The Update page that is displayed contains Upgrade Firmware and Backup/Restore.
  • Page 96 DG-VG2300N User Manual The following table describes the parameters and button of this page: Field Description Select File Click Browse to select the firmware file. After selecting the firmware file, click Upload to start upgrading Upload the firmware file. Reset Click it to undo the selection.

  • Page 97: Password

    DG-VG2300N User Manual Password Choose Maintenance > Password, and the page shown in the following figure appears. By default, the user name and password are admin and admin respectively. The common user name and password are user and user respectively.

  • Page 98: Reboot

    DG-VG2300N User Manual Reboot Choose Maintenance >Reboot, and the page shown in the following figure appears. You can set the router reset to the default settings. The following table describes the parameters and buttons on this page: Field Description Reboot Click it to reboot the router.

  • Page 99: Time

    DG-VG2300N User Manual Time Choose Maintenance > Time, and the page shown in the following figure appears. You can configure the system time manually or get the system time from the time server. The following table describes the parameters of this page:...

  • Page 100: Log

    DG-VG2300N User Manual Standard time begins in the southern hemisphere between March – April and ends between September – November. Many countries in the southern hemisphere may observe DST. NTP Configuration Select enable or disable NTP function. You need to enable NTP State if you want to configure the parameters of NTP.

  • Page 101: Diagnostics

    DG-VG2300N User Manual Diagnostics In the navigation bar, click Diagnostics. The Diagnostics page that is displayed contains Ping, Ping6, Traceroute, Traceroute6, OAM Loopback, ADSL Diagnostic and Diag-Test. Ping Choose Diagnostics > Ping. The Ping page that is displayed contains Ping and Ping6.

  • Page 102: Ping6

    DG-VG2300N User Manual Ping6 Click Ping6 in the left pane, and the page shown in the following figure appears. The following table describes the parameter and button of this page: Field Description Host Enter an IP address for Ping6 diagnostic.

  • Page 103: Traceroute

    DG-VG2300N User Manual Traceroute Click Traceroute in the left pane, and the following page appears. By Traceroute Diagnostic, you can track the route path of information flow from your computer to the other side host. The following table describes the parameters and buttons of this page.

  • Page 104: Traceroute 6

    DG-VG2300N User Manual Traceroute 6 OAM Loopback Choose Diagnostics > OAM Loopback. The page shown in the following figure appears. In this page, you can use VCC loopback function to check the connectivity of the VCC. The ATM loopback test is useful for troubleshooting problems with the DSLAM and ATM network.

  • Page 105: Adsl Statistics

    DG-VG2300N User Manual ADSL Statistics Choose Diagnostics > DSL Diagnostic The page shown in the following figure appears. It is used for ADSL tone diagnostics. Click Start to start ADSL tone diagnostics.

  • Page 106: Diag-Test

    DG-VG2300N User Manual Diag-Test Choose Diagnostics > Diag-Test, the page shown in the following figure appears. In this page, you can test the DSL connection. You can also view the LAN status connection and ADSL connection. Click Run Diagnostic Test to start testing.

  • Page 107: Appendix

    DG-VG2300N User Manual 4. Appendix 4.1 Technical Specifications Antennas: Two internal antennas Network Interface: 1 x RJ11 interface for ADSL /VDSLLine 2 x 10/100 Mbps UTP LAN ports Wireless Features Standard: IEEE802.11b/g/n Frequency band: 2.400~2.4835GHz Wireless output power: 11B: 18±1.5dBm 11G: 15.5±1.5dBm...
  • Page 108 DG-VG2300N User Manual LAN ports 1~2 Environment Requirements: Operating Temperature 0ºC—40ºC Storage Temperature -20ºC—70ºC Operating Humidity 10%—95%, non-condensing Storage Humidity 5%—95%, non-condensing Power Supply: 12 V DC, 0.5 A Switching power adapter. Physical Dimension: Net Dimensions (L x W x H): 130 x 25 x 120 mm Gross Dimensions (L x W x H): 170 x 150 x 70 mm Net weight : 140gm.

  • Page 109: Troubleshooting

    DG-VG2300N User Manual 4.2 Troubleshooting If you encounter any problem when you are using this wireless broadband router, don’t panic. Before you call your dealer of purchase for help, please check this troubleshooting section, the solution of your problem could be very simple, and you can solve the problem yourself.

  • Page 110: Glossary

    DG-VG2300N User Manual 4.3 Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it to the destination.
  • Page 111 DG-VG2300N User Manual Example: 192.168.2.1. It consists of 2 portions: the IP network address and the host identifier. The IP address is a 32-bit binary pattern, which can be represented as four cascaded decimal numbers separated by “.”: aaa.aaa.aaa.aaa, where each “aaa” can be anything from 000 to 255, or as four cascaded binary numbers separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb, where each “b”...
  • Page 112 DG-VG2300N User Manual area (such as home or office). Your home network is considered a LAN. MAC Address: MAC stands for Media Access Control. A MAC address is the hardware address of a device connected to a network. MAC address is a unique identifier for a device with an Ethernet interface. It is comprised of two parts: 3 bytes of data that correspond to the Manufacturer ID (unique for each manufacturer), plus 3 bytes that are often used as the product’s serial number.
  • Page 113 DG-VG2300N User Manual accepted standards, Ethernet and the Point-to-Point Protocol. It is a communications protocol for transmitting information over Ethernet between different manufacturers. Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so that when they interface with each other based on such a protocol, the interpretation of their behavior is well defined and can be made objectively, without confusion or misunderstanding.
