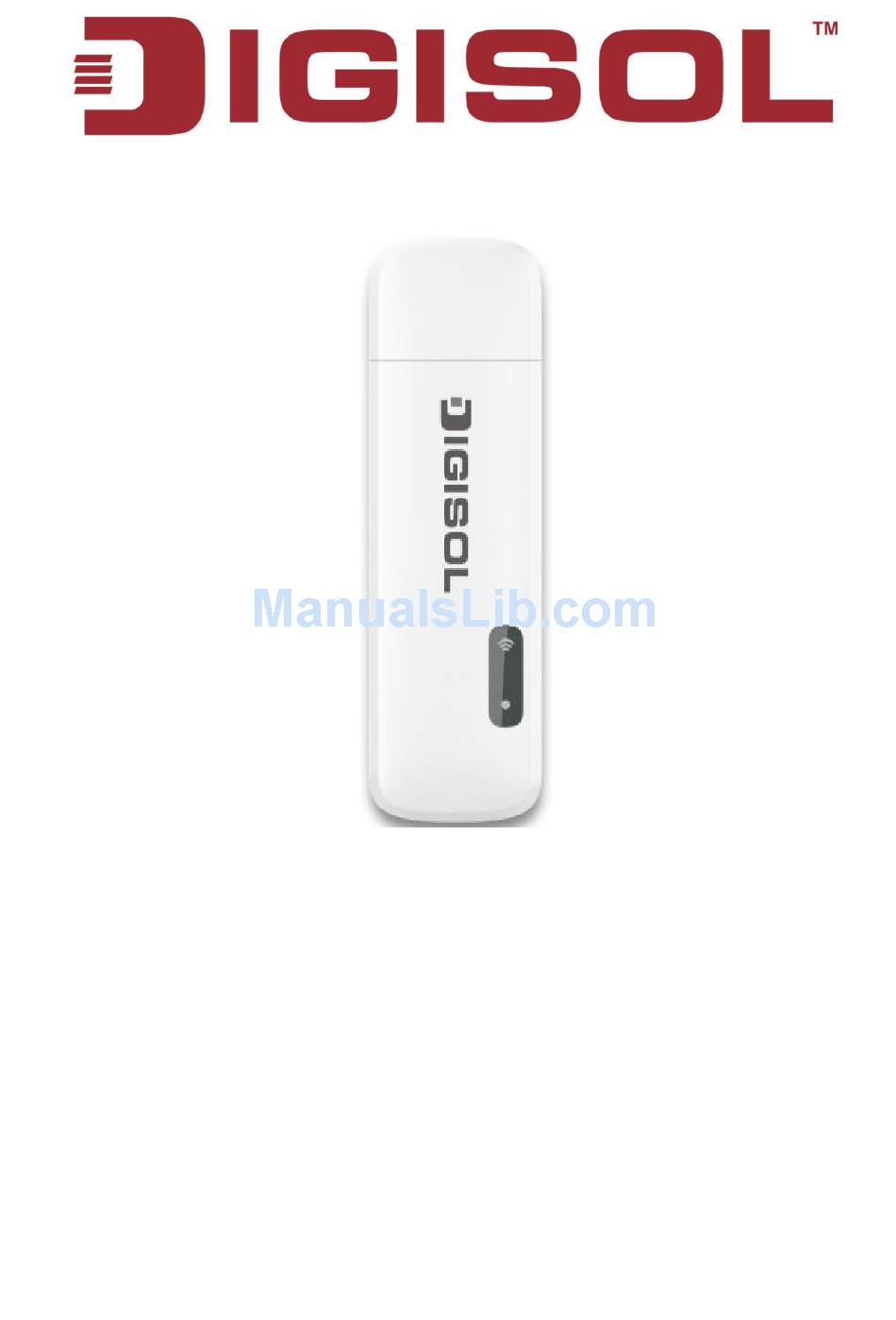

DG-HR1020S
150MBPS WIRELESS 3.75G MODEM BROADBAND ROUTER

User Manual

V1.0
2014-09-05
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading

Related Manuals for Digisol DG-HR1020S

Summary of Contents for Digisol DG-HR1020S

  • Page 1: User Manual

    DG-HR1020S 150MBPS WIRELESS 3.75G MODEM BROADBAND ROUTER User Manual V1.0 2014-09-05 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 Trademarks: DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers. Safety This equipment is designed with the utmost care for the safety of those who install and use it.

  • Page 3: Table Of Contents

    DG-HR1020S User Manual INDEX 1. Product Introduction....................4 1-1 Introduction and Safety Information............... 4 1-2 Safety Information...................5 1-3 System Requirements..................5 1-4 Package Contents....................5 2. Hardware Installation....................6 2-1 Get Familiar with your new wireless broadband router.........6 2-2 Connect to your network................. 7 2-3 Driver Installation...................7...

  • Page 4: Product Introduction

    3G service provider, and a separate Wi-Fi antenna gives extended coverage to the computers and mobile devices connected to DG-HR1020S. DG-HR1020S is truly plug and play, with drivers built into the router so you can connect without the need to install anything. Open a browser, connect the router, and you can set up your network right from a web interface.

  • Page 5: Safety Information

    1-4 Package Contents Before you start using this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items:  DG-HR1020S 150Mbps Wireless 3.75G Modem Broadband Router  Quick Installation Guide...

  • Page 6: Hardware Installation

    DG-HR1020S User Manual 2. Hardware Installation 2-1 Get Familiar with your new wireless broadband router Signal LED Wi-Fi LED Interface Status Description Solid Green WI-Fi activated Wi-Fi LED Blinking Green Data is transmitting SIM error or No Service Signal LED...

  • Page 7: Connect To Your Network

    DG-HR1020S User Manual 2-2 Connect to your network Hardware Installation: 1. Slide your SIM card into the slot provided, ensuring that the alignment is the same as indicated by the logo next to the slot. The gold contacts on the card should be facing downwards.
  • Page 8 DG-HR1020S User Manual Wireless Installation Considerations DG-HR1020S can be accessed using a wireless connection from anywhere within the operating range of its wireless network. Keep in mind that the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may adversely affect wireless signals.
  • Page 9 To connect to the router using Wi-Fi, open your operating system’s wireless networking utility and scan for available networks to connect to. By default, the network name (SSID) of DG-HR1020S will be in the format “DIGISOL”,the default password is 12345678.

  • Page 10: Quick Install Guide

    DG-HR1020S User Manual 3. Quick Install Guide 3-1 Getting Started Connecting the router’s management interface by web browser: Type the IP address of the router in the address bar as ‘http://192.168.1.1’. The following screen should be shown: Please input user name and password in the field respectively, default user name is ‘admin’, and default password is ‘1234’, then press ‘Login’...
  • Page 11 DG-HR1020S User Manual NOTE: If you can’t see the web management interface, and you’re being prompted to input user name and password again, it means you did not input username and password correctly. Please retype user name and password again.
  • Page 12 DG-HR1020S User Manual Throughout the interface you will find a menu bar at the top of the page which includes tabs for easy navigation, and a summary bar in the upper right corner with a quick view of essential information.

  • Page 13: Device Status

    DG-HR1020S User Manual Device Status A summary of the device’s current status will be displayed on the information panel at the top of the right-hand side of the navigation bar. The following is a description of the indications, from left to right.

  • Page 14: Wizard

    DG-HR1020S User Manual 3-2 Wizard The Wizard page will guide you through the steps required to configure the basic settings of your router such as the IP address, network name (SSID) and password. Click on the Wizard button on the navigation bar to commence the wizard.
  • Page 15 DG-HR1020S User Manual Step 1 LAN Connection Setting: Here is the description of every setup item: Parameter Description IP Address If you wish to change the router’s IP address, enter the new address here. If you change the IP address from the default, you will need to enter the new address in your Internet browser’s...
  • Page 16 DG-HR1020S User Manual Step 3 Wi-Fi Configuration Here is the description of every setup item: Parameter Description Password Setting Choose a password for your wireless security. Clients will need this password in order to access your network wirelessly. If you...

  • Page 17: Wan

    DG-HR1020S User Manual 3-3 WAN This page allows you to configure the Internet settings for your mobile network connection. Use the tabs in the left-hand column to navigate through the different settings categories. 1) Connection Operation Here is the description of every setup item:...
  • Page 18 DG-HR1020S User Manual User Profile Profiles: The profiles table shows the details of currently configured user profiles. To add a new user profile, navigate to the User Profile tab at the top of this section. Click “Add” to add a new user profile.
  • Page 19 DG-HR1020S User Manual 2) 2G/3G Modem This section displays information about your 2G or 3G modem connection. Information: Displays information about your 2G or 3G modem. Settings: Select your preferred modem type from the drop-down menu: Here is the description of every setup item:...
  • Page 20 DG-HR1020S User Manual PIN Code: Enter the PIN code for the SIM card. Click Enable to turn on SIM lock, or click Disable to turn off SIM lock. 4) PLMN This page allows you to view available Public Land Mobile Networks (PLMN). This page can also be used to select a preferred network when you are roaming outside your home network.

  • Page 21: Network

    DG-HR1020S User Manual 3-4 Network The Network pages allow you to check the current status of your Local Area Network (LAN) and make changes to LAN Settings. 1) LAN IP Address: Enter the IPv4 address for your Wi-Fi network. If you change this address, you will need to enter the new address in your web browser’s address bar in...
  • Page 22 DG-HR1020S User Manual 3) DHCP DHCP Server Here is the description of every setup item: Parameter Description DHCP Mode Select the desired DHCP mode from the drop down menu: None - Turns off DHCP functionality. Server - The router will act as a DHCP server and assign IP addresses to connected devices.
  • Page 23 DG-HR1020S User Manual wish to make the DHCP reservation. IP Address Enter the IP address that you wish to reserve. This address must be within the DHCP address pool. Click “OK” to save the reservation. Leased hosts This table shows the details of clients currently receiving a DHCP address from the DHCP server.
  • Page 24 DG-HR1020S User Manual Here is the description of every setup item: Parameter Description Active Check the box to activate this rule. Name Specify a name to identify the rule. Protocol Select TCP,UDP or TCP/UDP as the protocol for the forwarded ports from the drop-down menu.
  • Page 25 DG-HR1020S User Manual Open Protocol Select TCP, UDP or TCP/UDP as the protocol for the ports to be opened from the drop-down menu. Open Port(s) Enter the starting and ending ports to be opened when the trigger occurs. Delete Click the Delete icon to delete the rule. To edit the rule click on the rule itself.

  • Page 26: Sms

    DG-HR1020S User Manual 3-5 SMS DG-HR1020S can send or receive SMS text messages through the mobile network’s SMS function. In this section you can check the SIM card’s inbox and outbox, as well as send new messages. New Message Send To: Enter the phone number that you wish to send the message to.

  • Page 27: Wi-Fi

    DG-HR1020S User Manual 3-6 Wi-Fi The Wi-Fi pages allow you to check the current status of your Wi-Fi network, and make changes to Wi-Fi settings. 1) Basic This section allows you to configure your Wi-Fi network and specify the wireless security method to be used to secure your network.
  • Page 28 DG-HR1020S User Manual do not adjust this setting unless instructed to do so. DTIM Period Delivery Traffic Indication Message broadcasts information about buffered data to clients that are currently in low-power mode. Enter the desired DTIM period as a number of beacon intervals.
  • Page 29 DG-HR1020S User Manual Wired Equivalent Privacy (WEP) is an older wireless security standard, which although providing more protection than no security at all, has some weaknesses which could make it vulnerable to intrusion. It is recommended that you only use WEP if your wireless clients do not support Wi-Fi Protected Access (WPA).
  • Page 30 DG-HR1020S User Manual Wi-Fi Protected Access (WPA) Wi-Fi Protected Access (WPA) is a newer and more secure encryption protocol which makes significant improvements over WEP. There are two versions of WPA; the original WPA, and the newer WPA2. Here is the description of every setup item:...
  • Page 31 DG-HR1020S User Manual Cipher Type Select the desired cipher type from the drop-down menu: TKIP - This cipher is used by the WPA standard. AES - A newer cipher used by the WPA2 standard. Use of this cipher type is required in order to achieve 802.11 speeds.
  • Page 32 DG-HR1020S User Manual “Generate Pin” to create a new PIN. The current PIN will be shown in the field next to Current PIN. This PIN can be used by wireless clients to join your network using the PIN method Enrollee PIN If the device you are trying to add to the network was provided with a PIN number, select this option and enter the device’s...

  • Page 33: Security

    DG-HR1020S User Manual 4) Station List The Station List tab shows a list of all wireless clients currently connected to your wireless network. 3-7 Security The Security tab allows you to configure your router’s firewall settings and enable features to protect your network from outside intrusions and malicious attacks.
  • Page 34 DG-HR1020S User Manual 2) MAC Filter The MAC filter allows you to allow or deny access to your wireless network based on a client’s MAC address. Click “Add” to add the current rule to the rules list. Here is the description of every setup item:...
  • Page 35 DG-HR1020S User Manual 4) Content Filter The content filter allows you to allow or deny access to specific URLs. Click “Add” to save the rule and add it to the rule table. Here is the description of every setup item:...

  • Page 36: System

    DG-HR1020S User Manual 3-8 System This tab allows you to configure the router’s administrative functions, such as time & date, remote access, firmware upgrade, and access the system log. 1) About This tab shows the router’s basic information. 2) Configuration Back up Click “Backup”...
  • Page 37 DG-HR1020S User Manual Once you have located the file, click Restore to configure the router according to the selected configuration file. Reset to Default Click “Reset to default” to restore the router’s settings to the factory defaults. Warning: All settings stored on the router will be lost following a factory reset.
  • Page 38 DG-HR1020S User Manual This page lets you change the configuration interface passwords for the Administrator (Admin) and User accounts. Here is the description of every setup item: Parameter Description Select the user to Select whether you wish to change the password for the change password admin or user account from the drop down menu.
  • Page 39 DG-HR1020S User Manual Here is the description of every setup item: Parameter Description Current System Displays the current time and date according to the router’s Time system clock. Mode Select Manual to manually set the time and date, or select Get from Time Server to have the router automatically synchronize the time with a Network Time Protocol (NTP) server.
  • Page 40 DG-HR1020S User Manual Click “Apply” to save the current settings 6) Language Language: Select your preferred language from the drop-down menu. Click “Apply” to save the current configuration. 7) System Log The system log displays a record of all events which occur while the router is running.
  • Page 41 DG-HR1020S User Manual Log Display Refresh: Click to update the log display. Clear Log: Click to clear all log entries. Display Log Level: Select the level of log event which you wish to view from the drop-down menu. 8) Reboot...

  • Page 42: Appendix

    DG-HR1020S User Manual 4. Appendix Hardware Specifications  - 1 X USB interface - Antenna 1x1 2.4GHz internal embedded antenna - LED: 2G/3G status and Wi-Fi status - Micro SD card slot, up to 32 GB - SIM card slot ...

  • Page 43: Glossary

    DG-HR1020S User Manual 5. Glossary • 3G — Third Generation. 3G refers to the third generation of mobile telephony technology. • 4G LTE — Fourth Generation. 4G LTE refers to the fourth generation of mobile Telephony technology. • 802.11 (b, g, n) — A set of WLAN communication standards in the 2.4 frequency Bands.
  • Page 44 DG-HR1020S User Manual • IEEE — Institute of Electrical and Electronics Engineers. • IMEI — International Mobile Equipment Identity. Used in LTE networks to identify the device. It is usually printed on the device and can often be retrieved using a USSD code.
  • Page 45 DG-HR1020S User Manual • Network Operator — The vendor who provides you wireless access. Known by different names in different regions, some examples are: wireless provider, network provider and service provider. • Network Technology — The technology on which a particular network provider’s system is built;...
  • Page 46 DG-HR1020S User Manual • TCP/IP — Transmission Control Protocol/Internet Protocol. The set of Communication protocols used for the Internet and other similar networks. • USB — Universal Serial Bus. A connection type for computing device peripherals such as a printer, mobile modem, etc. USB connectors may be used for data transfer or charging.
