Digisol DG-BR4313NG User Manual

300mbps wireless green 3g broadband router
Hide thumbs
Table of Contents

Advertisement

Quick Links

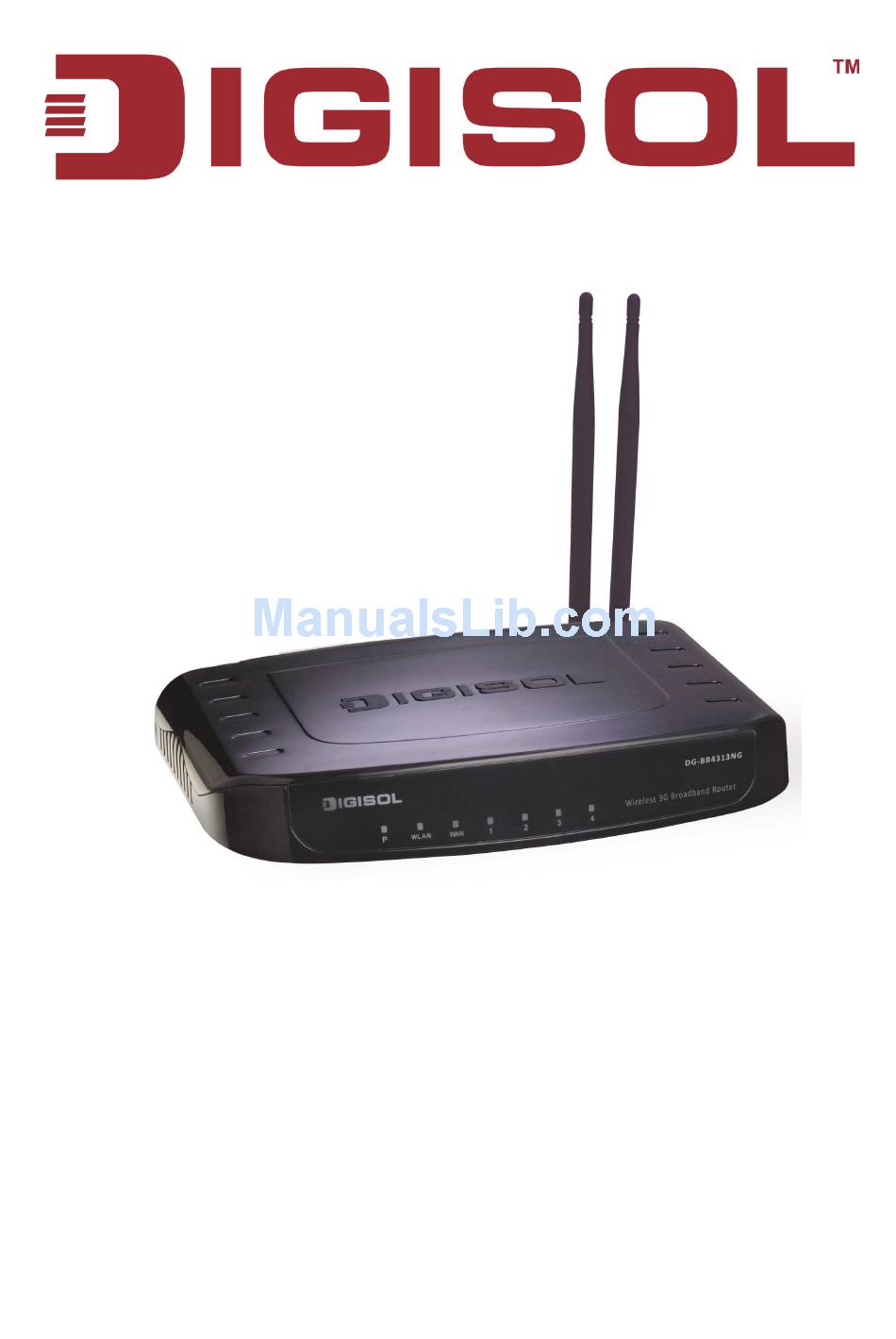

DG-BR4313NG
300Mbps Wireless Green 3G Broadband Router

User Manual

V1.0
2012-11-12
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading

Related Manuals for Digisol DG-BR4313NG

Summary of Contents for Digisol DG-BR4313NG

  • Page 1: User Manual

    DG-BR4313NG 300Mbps Wireless Green 3G Broadband Router User Manual V1.0 2012-11-12 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 Trademarks: DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers. Safety This equipment is designed with the utmost care for the safety of those who install and use it.
  • Page 3 DG-BR4313NG User Manual Federal Communication Commission Interference Statement FCC Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limitations are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 DG-BR4313NG User Manual FCC Caution This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.
  • Page 5 DG-BR4313NG User Manual R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on Radio Equipment and Telecommunication Terminal Equipment and the mutual recognition of their conformity (R&TTE).

  • Page 6: Table Of Contents

    DG-BR4313NG User Manual INDEX 1. PRODUCT INFORMATION ......................9 1-1 I ....................9 NTRODUCTION AND AFETY NFORMATION 1-2 S ........................10 AFETY NFORMATION 1-3 S ........................11 YSTEM EQUIREMENTS 1-4 P .......................... 11 ACKAGE ONTENTS 1-5 G ............12 AMILIAR WITH YOUR NEW WIRELESS BROADBAND ROUTER 2.
  • Page 7 DG-BR4313NG User Manual 2-5-5 Setup procedure for ‘PPTP’: ....................62 2-5-6 Setup procedure for ‘L2TP’: ....................64 2-5-7 Setup procedure for ‘DNS’: ....................66 2-5-8 Setup procedure for ‘DDNS’: ....................68 2-6 W LAN C ......................70 IRED ONFIGURATIONS 2-6-1 LAN IP section: ........................71 2-6-2 DHCP Server: ........................
  • Page 8 DG-BR4313NG User Manual 3-3-2 URL Blocking ........................114 3-3-3 DoS Attack Prevention ....................... 116 3-3-3-1 DoS - Advanced Settings ......................118 3-3-4 Demilitarized Zone (DMZ) ....................120 3-4 F ............................122 AILOVER 3-4 S ..........................125 YSTEM TATUS 3-4-1 System information and firmware version ................. 125 3-4-2 Internet Connection Status ....................

  • Page 9: Product Information

    Control mechanism in DG-BR4313NG transmits optimum power depending upon the distance of wireless clients from the router. DG-BR4313NG is the best choice for Small office / Home office users, all computers and network devices can share a single xDSL / cable modem internet connection at high speed.

  • Page 10: Safety Information

    DG-BR4313NG User Manual • Advanced network and security features like: Special Applications, QoS, DMZ, Virtual Servers, Access Control, Firewall. • Allows you to monitor the router’s status like: DHCP Client Log, System Log, Security Log and Device/Connection Status. • Easy to use Web-based GUI for network configuration and management purposes.

  • Page 11: System Requirements

    Before you start using this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: • DG-BR4313NG Wireless Broadband Router • Switching power adapter (5V DC, 2A) • USB cable (1 No.) •...

  • Page 12: Get Familiar With Your New Wireless 3G Broadband Router

    DG-BR4313NG User Manual 1-5 Get Familiar with your new wireless 3G broadband router Front Panel LED Name LED Color Light Status Description P (Power) Green Router is switched on and correctly powered. Wireless WPS function is enabled. Wireless network is switched off.

  • Page 13: Back Panel

    DG-BR4313NG User Manual Back Panel 3dBi Antenna Radio ON/OFF LAN port WAN Port 3G USB Port Reset/WPS Power Connector Interfaces Description Antennas These antennas are 3dBi dipole antennas. Radio ON/OFF Switch the button to activate or deactivate the wireless functions.

  • Page 14: System And Network Setup

    DG-BR4313NG User Manual 2. System and Network Setup 2-1 Hardware and Software Installation Hardware Installation:- Please follow the below mentioned instructions to build the network connection between your new WIRELESS router and your computers, network devices: 1. Connect your xDSL / cable modem to the WAN port of the router by an Ethernet cable.
  • Page 15 DG-BR4313NG User Manual 3. Connect the power adapter (5V DC / 2A) to the wall socket, and then connect it to the ‘Power’ socket of the router. 4. Please check all LEDs on the front panel. Power LED ‘P’ should be steadily ON, WAN and LAN LEDs should be ON.
  • Page 16 DG-BR4313NG User Manual Software Installation:-  Insert the Setup CD into your CD-ROM drive of notebook/desktop computer.  Explore the CD and execute the “RWizard.exe” file. Below given screen will appear. Click 'Next' to Continue.
  • Page 17 DG-BR4313NG User Manual • Connect one end of a network cable to the WAN port of the router and the other end to the DSL/Cable modem. Click ‘Next’ to continue. • Connect one end of the provided network cable to one of the LAN ports (1~4) of the...
  • Page 18 DG-BR4313NG User Manual • Power on the Router. It will take approximately 55 seconds for the router to boot up completely. Ensure that all the LED’s on the router are ON. If not, try the above steps again else click ‘Next’ to continue.
  • Page 19 DG-BR4313NG User Manual • Verify the Internet Connection Type the wizard has detected. If it is not correct, please configure it manually. Click ‘Next’ to continue. Note: If you are not sure which Internet Connection Type you use, please contact your Internet Service Provider for this information.
  • Page 20 DG-BR4313NG User Manual • Enter the settings for your Internet Connection Type. 3G/3.5G Select the Country and ISP from drop down list. Enter the APN, Username, Password and AT Dial Script, then click ‘Next’ to continue. Dynamic IP (Cable Modem users) Click on ‘Clone’...
  • Page 21 DG-BR4313NG User Manual PPPoE (DSL users) Enter the user name and password provided by your ISP then click ‘Next’. Static IP Enter the IP Address, Subnet Mask, Default Gateway and DNS address by your ISP, then click ‘Next’. Note: Once the parameters for each mode, as explained above are...
  • Page 22 DG-BR4313NG User Manual • Please wait while the Wizard tries to connect to the Internet. If you see the window “Internet Connection Succeed”, your router has been successfully connected to the Internet. Please click ‘Next’ to configure the wireless settings.
  • Page 23 DG-BR4313NG User Manual • Configure the security key for your wireless network. Check ‘Enable WPA Pre-Shared Key’. Enter 8 to 63 characters into WPA-Pre-Shared Key. Click ‘Next’ to continue. • Verify the settings you just configured for the Router. Click ‘Finish’ to restart the Router.

  • Page 24: Connecting To Wireless Broadband Router By Web Browser

    DG-BR4313NG User Manual 2-2 Connecting to wireless broadband router by web browser After the network connection is setup, next step is to setup the router with proper network parameters, so it can work properly in your network environment. Please use the web browser to configure the router. A computer with wired Ethernet connection to the router is required for this first-time configuration.

  • Page 25: Windows 95/98 Ip Address Setup

    DG-BR4313NG User Manual 2-2-1 Windows 95/98 IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click ‘Network’ icon, and Network window will appear. Select ‘TCP/IP’, then click ‘Properties’.
  • Page 26 DG-BR4313NG User Manual 2. Select ‘Specify an IP address’, then input the following settings in respective field: IP address: 192.168.2.2 Subnet Mask: 255.255.255.0 Gateway: 192.168.2.1 Click ‘OK’ when finish.

  • Page 27: Windows 2000 Ip Address Setup

    DG-BR4313NG User Manual 2-2-2 Windows 2000 IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click ‘Network and Dial-up Connections’ icon, Right click on ‘Local Area Connection’ and select ‘Properties’, Local Area Connection Properties...
  • Page 28 DG-BR4313NG User Manual 2. Select ‘Use the following IP address’, then input the following settings in the respective field: IP address: 192.168.2.2 Subnet Mask: 255.255.255.0 Default gateway: 192.168.2.1 Click ‘OK’ when finish.

  • Page 29: Windows Xp Ip Address Setup

    DG-BR4313NG User Manual 2-2-3 Windows XP IP address setup: 1. Click ‘Start’ button (it should be located at the lower-left corner of your computer), then click control panel. Click ‘Network Connections’, Right click on ‘Local Area Connection’ and select Properties, Local Area Connection Properties window will...
  • Page 30 DG-BR4313NG User Manual 2. Select ‘Use the following IP address’, then input the following settings in the respective field: IP address: 192.168.2.2 Subnet Mask: 255.255.255.0 Default gateway: 192.168.2.1 Click ‘OK’ when finish.

  • Page 31: Windows Vista Ip Address Setup

    DG-BR4313NG User Manual 2-2-4 Windows Vista IP address setup 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Click on ‘View Network Status and Tasks’ and then click on ‘Manage Network Connections’. Right-click ‘Local Area Connection’, then select ‘Properties’.
  • Page 32 DG-BR4313NG User Manual 2. Select ‘Use the following IP address’, then input the following settings in the respective field: IP address: 192.168.2.2 Subnet Mask: 255.255.255.0 Default gateway: 192.168.2.1 Click ‘OK’ when finish.

  • Page 33: Connecting The Router's Management Interface By Web Browser

    DG-BR4313NG User Manual 2-2-5 Connecting the router’s management interface by web browser After you assign an IP address to the computer, open the web browser, and type the IP address of the router in the address bar as ‘http://192.168.2.1’. The following message should be shown:...
  • Page 34 DG-BR4313NG User Manual Please input user name and password in the field respectively, default user name is ‘admin’, and default password is ‘1234’, then press ‘OK’ button, and you can see the web management interface of this router: NOTE: If you can’t see the web management interface, and you’re being prompted to input user name and password again, it means you didn’t input username and password correctly.

  • Page 35: Using Quick Setup

    DG-BR4313NG User Manual 2-3 Using Quick Setup This router provides a ‘Quick Setup’ procedure, which will help you to complete all required settings you need to access the Internet in very short time. Please follow the instructions mentioned below to complete the ‘Quick Setup’: Please go to Quick Setup menu by clicking ‘Quick Setup’...
  • Page 36 DG-BR4313NG User Manual Here is the description of every setup item Parameter Description Time Zone Click the button, drop-down menu will be shown, and you can choose a time zone of the location you live. Time Server Address Input the IP address of time server here.
  • Page 37 DG-BR4313NG User Manual After you finish with all the settings, please click ‘Next’ button. ‘WAN Type’ Below given screen will appear. Please choose the broadband (Internet connection) type you’re using in this page. There are six types of Internet connection, they are: 3G/3.5G...
  • Page 38 DG-BR4313NG User Manual If you’re not sure, please contact your Internet service provider. A wrong Internet connection type will cause connection problem, and you will not be able to connect to the internet. If you want to go back to previous step, please press ‘Back’ button at the bottom of this page.

  • Page 39: Setup Procedure For '3G/3.5G

    DG-BR4313NG User Manual 2-3-1 Setup procedure for ‘3G/3.5G’: Click on ‘3G/3.5G’ on the ‘WAN Type’ screen. Below given screen will be displayed. Here is the description of every setup item: Parameter Description Country Select the country from dropdown list. Select the Service Provider from dropdown list.

  • Page 40: Setup Procedure For 'Cable Modem

    DG-BR4313NG User Manual 2-3-2 Setup procedure for ‘Cable Modem’: Click on ‘Cable Modem’ on the ‘WAN Type’ screen. Below given screen will be displayed. Here is the description of every setup item: Parameter Description Host Name Please input the host name of your computer. This is optional, and is only required if your service provider asks you to do so.

  • Page 41: Setup Procedure For 'Fixed-Ip Xdsl

    DG-BR4313NG User Manual 2-3-3 Setup procedure for ‘Fixed-IP xDSL: Click on ‘Fixed-IP xDSL’ on the ‘WAN Type’ Screen. Below given screen will be displayed. Here is the description of every setup item: Parameter Description IP address Please input the IP address assigned by your service provider.

  • Page 42: Setup Procedure For 'Pppoe Xdsl

    DG-BR4313NG User Manual 2-3-4 Setup procedure for ‘PPPoE xDSL: Click on ‘PPPoE’ on the ‘WAN Type’ Screen. Below given screen will be displayed. Here is the description of every setup item: Parameter Description User Name Please input the user name assigned by your Internet service provider here.
  • Page 43 DG-BR4313NG User Manual MTU – If you don’t know the MTU Value, please use default value or ask your service provider for a proper value. Connection Type - There are 3 options: ‘Continuous’ - Keep internet connection alive, do not disconnect.

  • Page 44: Setup Procedure For 'Pptp Xdsl

    DG-BR4313NG User Manual 2-3-5 Setup procedure for ‘PPTP xDSL’: Click on ‘PPTP’ on the ‘WAN Type’ Screen. Below given screen will be displayed. PPTP xDSL requires two kinds of settings: WAN interface setting (setup IP address) and PPTP setting (PPTP user name and password).
  • Page 45 DG-BR4313NG User Manual Here we start from WAN interface setting: Here you select the type of how to obtain the IP address from your service provider. You can choose ‘Obtain an IP address automatically’ (i.e. DHCP, please refer to ‘Cable Modem’...

  • Page 46: Setup Procedure For 'L2Tp Xdsl

    DG-BR4313NG User Manual 2-3-6 Setup procedure for ‘L2TP xDSL’: L2TP is another popular connection method for xDSL and other Internet connection types, like PPTP, two kinds of settings are required, we’ll start from ‘WAN Interface Settings’: Please select the type of how you obtain IP address from your service provider here. You can choose ‘Obtain an IP address automatically’...
  • Page 47 DG-BR4313NG User Manual Now please go to L2TP settings section: Here is the description of every setup item: Parameter Description User Name Please input user ID (user name) assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here.

  • Page 48: Procedure For Saving The Settings

    DG-BR4313NG User Manual 2-3-7 Procedure for Saving the Settings After completion of all the settings you need to save it. Click ‘OK’ and the following message will be displayed on your web browser: Click ‘Apply’ button to restart the router, and you’ll see this message: Wait for about 55 seconds, then click ‘OK’...

  • Page 49: General Setup

    DG-BR4313NG User Manual 2-4 General Setup In this chapter, you’ll know how to change the time zone, password and remote management settings. Please start your web browser and log onto router web management interface, then click ‘General Setup’ button on the left, or click ‘General Setup’ link at the upper-right corner of web management interface.

  • Page 50: Time Zone And Time Auto-Synchronization

    DG-BR4313NG User Manual 2-4-1 Time zone and time auto-synchronization Please follow the instructions mentioned below to set time zone and time auto- synchronization parameters. Please click ‘System’ menu on the left of web management interface, then click ‘Time Zone’, and the following screen will be displayed on your web browser. For setting of the...

  • Page 51: Change Management Password

    DG-BR4313NG User Manual 2-4-2 Change management password Default password of this router is 1234, and it’s displayed on the login prompt when accessed from web browser. There’s a security risk if you don’t change the default password, since everyone can see it. This is very important when you have wireless function enabled.
  • Page 52 DG-BR4313NG User Manual If the password you typed in ‘New Password’ and ‘Confirm Password’ fields do not match, you’ll see the following message. Please retype the new password again and click ‘Apply’. If the current and new passwords are correctly entered, after you click ‘Apply’, you’ll be prompted to input your new password: Please input user name as ‘admin’...

  • Page 53: Remote Management

    DG-BR4313NG User Manual 2-4-3 Remote Management This router does not allow management access from Internet, to prevent possible security risks (especially when you define a weak password or did not change default password). However, you can still manage this router from a specific IP address by enabling the ‘Remote Management’...
  • Page 54 DG-BR4313NG User Manual When you finish, click ‘Apply’. You’ll see the following message displayed on web browser Press ‘Continue’ to save the settings made and go back to web management interface; press ‘Apply’ to save the settings made and restart the router, so the settings will take effect after it reboots.

  • Page 55: Setup Internet Connection (Wan Setup)

    DG-BR4313NG User Manual 2-5 Setup Internet Connection (WAN Setup) chapter Internet connections setup can be done by using ‘Quick Setup’ menu described in 2-3. However, you can setup WAN connections by using WAN configuration menu. You can also set advanced functions like DDNS (Dynamic DNS) here.

  • Page 56: Setup Procedure For '3G/3.5G

    DG-BR4313NG User Manual Following are the types of Internet connection: 3G/3.5G - Please go to section 2-5-1 section 2-5-2 Dynamic IP - Please go to Static IP - Please go to section 2-5-3 PPPoE - Please go to section 2-5-4...

  • Page 57: Setup Procedure For 'Dynamic Ip

    DG-BR4313NG User Manual Password Enter the password for 3G connection. Verify Password Enter the password to verify. Service Select the service type whether 3G or CDMA. AT Dial Script Enter the dial script. 2-5-2 Setup procedure for ‘Dynamic IP’ Here is the description of every setup item:...
  • Page 58 DG-BR4313NG User Manual After you click ‘Apply’, the following message will be displayed on your web browser: Please click ‘Continue’ to go back to previous setup menu; to continue on router setup, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 55...

  • Page 59: Setup Procedure For 'Static Ip

    DG-BR4313NG User Manual 2-5-3 Setup procedure for ‘Static IP’ Here is the description of every setup item: Parameter Description IP Address Please input the IP address assigned by your service provider. Subnet Mask Please input the subnet mask assigned by your service...

  • Page 60: Setup Procedure For 'Pppoe

    DG-BR4313NG User Manual 2-5-4 Setup procedure for ‘PPPoE’: Here is the description of every setup item: Parameter Description User Name Please input user name assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here.
  • Page 61 DG-BR4313NG User Manual Manual – After you have selected this option, you will see the “Connect” button and “Disconnect” button, click “Connect” and the router will connect to the ISP. If you want to stop the connection, please click “Disconnect”...

  • Page 62: Setup Procedure For 'Pptp

    DG-BR4313NG User Manual 2-5-5 Setup procedure for ‘PPTP’ PPTP requires two kinds of settings: WAN interface setting (setup IP address) and PPTP setting (PPTP user name and password). Here we start from WAN interface setting: Here you select the type of how to obtain the IP address from your service provider. You can choose ‘Obtain an IP address automatically’...
  • Page 63 DG-BR4313NG User Manual WAN interface settings must be correctly set, or the Internet connection will fail, even though the PPTP settings are correct. Please contact your Internet service provider if you don’t know what you should fill in these fields.

  • Page 64: Setup Procedure For 'L2Tp

    DG-BR4313NG User Manual 2-5-6 Setup procedure for ‘L2TP’: L2TP is another popular connection method for xDSL and other Internet connection types, Like PPTP, two kinds of settings are required, we’ll start from ‘WAN Interface Settings’: Please select the type of how you obtain IP address from your service provider here. You can choose ‘Obtain an IP address automatically’...
  • Page 65 DG-BR4313NG User Manual WAN interface settings must be correctly set, or the Internet connection will fail, even though L2TP settings are correct. Please contact your Internet service provider if you don’t know what you should fill in these fields. Now please go to L2TP settings section:...

  • Page 66: Setup Procedure For 'Dns

    DG-BR4313NG User Manual 2-5-7 Setup procedure for ‘DNS’: If you select ‘Dynamic IP’ or ‘PPPoE’ as Internet connection method, at least one DNS server’s IP address should be assigned automatically. However, if you have preferred DNS server, or your service provider didn’t assign the IP address of DNS server because of any reason, you can input the IP address of DNS server here.
  • Page 67 DG-BR4313NG User Manual After you finish with all settings, please click ‘Apply’ button and the following message will be displayed on your web browser: If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...

  • Page 68: Setup Procedure For 'Ddns

    DG-BR4313NG User Manual 2-5-8 Setup procedure for ‘DDNS’: DDNS (Dynamic DNS) is an IP-to-Hostname mapping service for those Internet users who don’t have a static (fixed) IP address. It will be a problem when such users want to provide services to other users on Internet, because their IP address will vary every time when connected to Internet.
  • Page 69 DG-BR4313NG User Manual After you finish with all settings, please click ‘Apply’ button and the following message will be displayed on your web browser: If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...

  • Page 70: Wired Lan Configurations

    DG-BR4313NG User Manual 2-6 Wired LAN Configurations Before all computers using wired Ethernet connection (i.e. those computers connected to this router’s LAN port 1 to 4 by Ethernet cable) can communicate with each other and access internet, they must have a valid IP address. There are two ways to assign IP addresses to computers: static IP address (set the IP address for every computer manually), and dynamic IP address (IP address of computers will be assigned by router automatically).

  • Page 71: Lan Ip Section

    DG-BR4313NG User Manual Please follow the instructions mentioned below to set wired LAN parameters: Click ‘General Setup’ menu on the left of the web management interface, then click ‘LAN’ menu. There are three setup groups here: ‘LAN IP’, ‘DHCP Server’, and ‘Static DHCP Lease Table’.

  • Page 72: Dhcp Server

    DG-BR4313NG User Manual 2-6-2 DHCP Server: These settings are only available when ‘DHCP Server’ in ‘LAN IP’ section is ‘Enabled’, and here are descriptions of every setup item Parameter Description Lease Time Please choose a lease time (the duration that every computer can keep a specific IP address) of every IP address assigned by this router from the dropdown menu.

  • Page 73: Static Dhcp Lease Table

    DG-BR4313NG User Manual 2-6-3 Static DHCP Lease Table: This function allows you to assign a static IP address to a specific computer forever, so you don’t have to set the IP address for a computer, and still enjoy the benefit of using DHCP server.
  • Page 74 DG-BR4313NG User Manual After you clicked ‘Add’, the MAC address and IP address mapping will be added to ‘Static DHCP Leases Table’ section as shown below. If you want to delete a specific item, please check the ‘Select’ box of a MAC address and IP address mapping, then click ‘Delete’...

  • Page 75: Wireless Lan Configurations

    DG-BR4313NG User Manual 2-7 Wireless LAN Configurations If your computer, PDA, game console, or other network devices are equipped with wireless network interface, you can use the wireless function of this router to let them connect to Internet and share resources with other computers with wired-LAN connection.

  • Page 76: Basic Wireless Settings

    DG-BR4313NG User Manual 2-7-1 Basic Wireless Settings Please click ‘Basic Settings’, and the following message will be displayed on your web browser: Here is the description of every setup item: Parameter Description Band Please select the radio band from one of the following options: 2.4 GHz (B) - This band, only allows 802.11b wireless network...
  • Page 77 Default SSID is ‘DIGISOL’, it’s recommended to change the default SSID value to the one which is meaningful to you, like myhome, office_room1, etc.

  • Page 78: Advanced Wireless Settings

    DG-BR4313NG User Manual 2-7-2 Advanced Wireless Settings This router provides some advanced control of wireless parameters, if you want to configure these settings, please click ‘Advanced Settings’ menu on the left of web management interface, under the ‘Wireless’ tab and the following message will be displayed on your web...
  • Page 79 DG-BR4313NG User Manual DTIM Period Set the DTIM period of wireless radio. Do not modify default value if you don’t know what it is, default value is 3. Data Rate Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not...

  • Page 80: Wireless Security

    DG-BR4313NG User Manual 2-7-3 Wireless Security It’s very important to set wireless security settings properly. If you don’t, hackers and malicious users can reach your network and valuable data without your consent and this will cause serious security problem. To set wireless security settings, Please click ‘Security Settings’ menu on the left of web management interface, under the ‘Wireless’...

  • Page 81: Wep - Wired Equivalent Privacy

    DG-BR4313NG User Manual 2-7-3-2 WEP - Wired Equivalent Privacy When you select this mode, the wireless router will use WEP encryption, and the following setup menu will be shown on your web browser: Here is the description of every setup item...
  • Page 82 DG-BR4313NG User Manual here, and if you have entered multiple WEP keys, they should not be the same. Enable 802.1x IEEE 802.1x is an authentication protocol. Every user must use a Authentication valid account to login to this wireless router before accessing the wireless LAN.
  • Page 83 DG-BR4313NG User Manual After you finish WEP setting, please click ‘Apply’ button and the following message will be displayed on your web browser: Please click ‘Continue’ to go back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait...

  • Page 84: Wi-Fi Protected Access (Wpa)

    DG-BR4313NG User Manual 2-7-3-3 Wi-Fi Protected Access (WPA) When you select this mode, the wireless router will use WPA encryption, and the following setup menu will be shown on your web browser: Here is the description of every setup item:...

  • Page 85: Wpa Radius

    DG-BR4313NG User Manual After you finish WPA Pre-shared key setting, please click ‘Apply’ button and the following message will be displayed on your web browser: Please click ‘Continue’ to go back to previous setup menu; to continue on other setup procedures, or click ‘Apply’...
  • Page 86 DG-BR4313NG User Manual Here is the description of every setup item: Parameter Description WPA Unicast Cipher Suite Please select a type of WPA cipher suite. Available options are: WPA (TKIP), WPA2 (AES) and WPA2 Mixed. You can select one of them, but you have to make sure your wireless client supports the cipher you selected.

  • Page 87: Wireless Access Control

    DG-BR4313NG User Manual 2-7-4 Wireless Access Control This function will help you to prevent unauthorized users from connecting to your wireless router; only those wireless devices who have the MAC address you assigned here can gain access to your wireless router. You can use this function with other security measures described in previous section, to create a safer wireless environment.
  • Page 88 DG-BR4313NG User Manual Comment You can input any text here as the comment of this MAC address, like ‘ROOM 2A Computer’ or anything. This is optional and you can leave it blank, however, it’s recommended to use this field to write a comment for every MAC address as a memory aid.

  • Page 89: Wi-Fi Protected Setup (Wps)

    DG-BR4313NG User Manual 2-7-5 Wi-Fi Protected Setup (WPS) Wi-Fi Protected Setup (WPS) is the simplest way to build secure connection between wireless network clients and this wireless router. You don’t have to select encryption mode and input a long encryption passphrase every time when you need to setup a wireless client, you only have to press a button on wireless client and this wireless router, and the WPS will do the rest for you.
  • Page 90 DG-BR4313NG User Manual Here is the description of every setup item: Parameter Description Enable WPS Check this box to enable WPS function, uncheck it to disable WPS. WPS Information WPS related system information will be displayed here: WPS Status: If the wireless security (encryption) function of this wireless router is properly set, you’ll see...

  • Page 91: Security Tips For Wireless Network

    DG-BR4313NG User Manual Configure by Push Button: Click ‘Start PBC’ to start Push-Button style WPS setup procedure. This wireless router will wait for WPS requests from wireless clients for 2 minutes. The ‘WLAN’ LED on the wireless router will be steady on for 2 minutes when this wireless router is waiting for incoming WPS request.

  • Page 92: Advanced Functions

    DG-BR4313NG User Manual 3. Advanced Functions 3-1 Quality of Service (QoS) Quality of service provides an efficient way for computers on the network to share the internet bandwidth with a promised quality of internet service. Without QoS, all computers and devices on the network will compete with each other to get internet bandwidth, and...
  • Page 93 DG-BR4313NG User Manual Here is the description of every setup item: Parameter Description Enable QoS Check this box to enable QoS function, unselect this box if you don’t want to enforce QoS bandwidth limitations. Total Download Bandwidth You can set the limit of total download bandwidth in kbits.

  • Page 94: Add A New Qos Rule

    DG-BR4313NG User Manual After you finish with all settings, please click ‘Apply’ button and the following message will be displayed on your web browser: If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...
  • Page 95 DG-BR4313NG User Manual Parameter Description Rule Name Please give a name to this QoS rule (upto 15 alphanumerical characters) Bandwidth Set the bandwidth limitation of this QoS rule. You have to select the data direction of this rule (Upload or Download), and the speed of bandwidth limitation in Kbps, then select the type of QoS: ‘guarantee’...
  • Page 96 DG-BR4313NG User Manual traffics from / to the specified IP address / port number), select ‘None’. Protocol Please select the protocol type of this rule, available options are TCP and UDP. If you don’t know what protocol your application uses, please try ‘TCP’ first, and switch to ‘UDP’...

  • Page 97: Network Address Translation (Nat)

    DG-BR4313NG User Manual 3-2 Network Address Translation (NAT) Network addresses translations means sharing a single IP address to multiple computers in a network. Without NAT, all computers must be assigned with a valid Internet IP address to get connected to Internet, but Internet service providers only provide very few IP addresses to every user.

  • Page 98: Port Forwarding

    DG-BR4313NG User Manual 3-2-2 Port Forwarding This function allows you to redirect a single port or consecutive ports of Internet IP address to the same port of the IP address on a local network. The port number(s) of Internet IP address and private IP address (the IP address on local network) must be the same.
  • Page 99 DG-BR4313NG User Manual Port Range Input the starting port number in the upper field, and input the ending port number in the bottom field. If you only want to redirect a single port number, just fill the port number in the upper field.

  • Page 100: Virtual Server

    DG-BR4313NG User Manual 3-2-3 Virtual Server This function allows you to redirect a port on Internet IP address (on WAN port) to a specified port of an IP address on local network, so you can setup an Internet service on the computer on local network, without exposing it on Internet directly.
  • Page 101 DG-BR4313NG User Manual above. Comment Please input any text to describe this mapping, up to 16 alphanumerical characters. Add the mapping to virtual server table. Reset Remove all inputted values. Current Virtual Server All existing virtual server mappings will be displayed here.

  • Page 102: Port Mapping For Special Applications

    DG-BR4313NG User Manual 3-2-4 Port Mapping for Special Applications Some applications like Internet gaming, Video conferencing, Internet telephony etc require multiple connections at a time; these applications won’t work with simple NAT rules. In order to make these applications work, you can use this function.
  • Page 103 DG-BR4313NG User Manual Applications selection and click ‘Add’ to auto fill the TCP/UDP Ports and Comment. Add the setting to the ‘Current Trigger-Port Table.’ Reset Click ‘Reset’. This will clear all above settings and you will have to reconfigure the unit again.

  • Page 104: Upnp Setting

    DG-BR4313NG User Manual 3-2-5 UPnP Setting This function enables network auto-configuration for peer-to-peer communications, with this function, network devices will be able to communicate with other devices directly, and learn information about other devices. Many network devices and applications rely on UPnP function nowadays.

  • Page 105: Alg Settings

    DG-BR4313NG User Manual 3-2-6 ALG Settings Application Layer Gateway (ALG) is a special function of this router. It includes many preset routing rules for numerous applications which require special support. With these routing rules, those applications which required special support will be able to work with NAT architecture.

  • Page 106: Static Routing

    DG-BR4313NG User Manual If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. Please click ‘Continue’ to go back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 55 seconds while router is rebooting).

  • Page 107: Igmp Settings

    DG-BR4313NG User Manual Here is the description of every setup item. Parameter Description Enable Static Check this box to enable static routing on the router. Routing Destination LAN IP Enter the remote destination LAN IP. Subnet Mask Enter the remote LAN subnet mask.

  • Page 108: Firewall

    DG-BR4313NG User Manual 3-3 Firewall Except NAT, this router also provides firewall function to block malicious intruders from accessing your computers on local network. These functions include inbound attack prevention and block outbound traffics, like block URLs which have pre-defined keywords.

  • Page 109: Access Control

    DG-BR4313NG User Manual 3-3-1 Access Control This function allows or denies computers with specific MAC addresses from connecting to the network; it can also allow or deny computers with specific IP addresses, protocols, or ports. Please click ‘Access Control’ menu on the left of web management interface, under the ‘Firewall’...
  • Page 110 DG-BR4313NG User Manual address, like ‘ROOM 2A Computer’ or anything. You can input up to 16 alphanumerical characters here. This is optional and you can leave it blank, however, it’s recommended to use this field to write a comment for every MAC address as a memory aid.
  • Page 111 DG-BR4313NG User Manual After you finish with all settings, please click ‘Apply’ button and the following message will be displayed on your web browser: If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...

  • Page 112: Add Pc

    DG-BR4313NG User Manual 3-3-1-1 Add PC After ‘Add PC’ button is clicked, the following message will be displayed on your web browser:...
  • Page 113 DG-BR4313NG User Manual Here is the description of every setup item: Parameter Description Client PC Description Please input any text to describe this IP address, up to 16 alphanumerical characters. Client PC IP address Please input the starting IP address in the left field, and...

  • Page 114: Url Blocking

    DG-BR4313NG User Manual 3-3-2 URL Blocking If you want to prevent computers in the local network from accessing certain websites (like pornography, violence, or anything you want to block), you can use this function. This function is useful for parents and company managers.
  • Page 115 DG-BR4313NG User Manual Delete If you want to delete a specific URL/Keyword entry, check the ’Delete’ button. (You can select more than one entry) Delete All If you want to delete all URL/Keyword listed here, please click ‘Delete All’ button.

  • Page 116: Dos Attack Prevention

    DG-BR4313NG User Manual 3-3-3 DoS Attack Prevention Denial of Service (DoS) is a common attack measure, by transmitting a great amount of data or request to your Internet IP address and server, the Internet connection will become very slow, and server may stop responding because it is not capable of handling too much traffic.
  • Page 117 DG-BR4313NG User Manual inbound PING request, but when you activate this function, you will not be able to ping your own router from internet, too. Port Scan Some malicious intruder will try to use a ‘port scanner’ to know how many ports of your Internet IP address are open, and they can collect a lot of valuable information by doing so.

  • Page 118: Dos - Advanced Settings

    DG-BR4313NG User Manual 3-3-3-1 DoS - Advanced Settings When you click ‘Advanced’ button in DoS menu, the following message will be displayed on your web browser: Here is the description of every setup item: Parameter Description Ping of Death Set the threshold of, when this DoS prevention mechanism will be activated.
  • Page 119 DG-BR4313NG User Manual After you finish with all the settings, please click ‘Apply’ button and the following message will be displayed on your web browser: If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...

  • Page 120: Demilitarized Zone (Dmz)

    DG-BR4313NG User Manual 3-3-4 Demilitarized Zone (DMZ) Demilitarized Zone (DMZ) refers to a special area in your local network. This area resides in local network, and all computers in this area use private IP address, too. But these private IP addresses are mapped to a certain Internet IP address, so other people on Internet can fully access those computers in DMZ.
  • Page 121 DG-BR4313NG User Manual associated private IP address to the DMZ table. Reset Click ‘Reset’ to remove the value you inputted in Public IP address and Client PC IP address field. Current DMZ Table All existing public IP address and private IP address mapping will be displayed here.

  • Page 122: Failover

    DG-BR4313NG User Manual 3-4 Failover WAN failure detection works by detecting the presence of traffic on the 3G modem link. If the link is idle for too long the router will attempt to ping a target IP address. If the ping does not reply, the router assumes the link is down and attempts to fail over to Ethernet WAN link and vice versa.
  • Page 123 DG-BR4313NG User Manual Here, is the description of every setup item. Parameter Description WAN Failover Check this box to enable Fail Over function. WAN Priority Please select the WAN connection priority from the drop-down menu. Idle Timeout Detect Please input the idle time for detecting the Internet connection.
  • Page 124 DG-BR4313NG User Manual SMTP Authentication Some SMTP servers require mail senders to be authenticated before they can send an Email. In such a case, please select ‘Enable’, or else select ‘Disable’. If you don’t know, please refer to the SMTP server you’re using in your Email software (like Outlook, Outlook Express etc.), or check with your network administrator...

  • Page 125: System Status

    DG-BR4313NG User Manual 3-4 System Status The functions described here will provide you with system related information. 3-4-1 System information and firmware version You can use this function to know the system information and firmware version of this router. Please click ‘Status’ link located at the upper-right corner of web management interface or...

  • Page 126: Internet Connection Status

    DG-BR4313NG User Manual 3-4-2 Internet Connection Status You can use this function to know the status of current Internet connection. Please click ‘Internet Connection’ menu on the left of web management interface under the ‘Status’ tab, and the following message will be displayed on your web browser:...

  • Page 127: Device Status

    DG-BR4313NG User Manual 3-4-3 Device Status You can use this function to know the status of your router. Please click ‘Device Status’ menu on the left of web management interface under the status tab and the following message will be displayed on your web browser:...

  • Page 128: System Log

    DG-BR4313NG User Manual 3-4-4 System Log All important system events are logged. You can use this function to check the event log of your router. Please click ‘System Log’ menu on the left of web management interface under the ‘status’...

  • Page 129: Security Log

    DG-BR4313NG User Manual 3-4-5 Security Log All information about network and system security is kept here, and you can use this function to check the security event log of your router. Please click ‘Security Log’ menu on the left of web management interface below the ‘Status’...

  • Page 130: Active Dhcp Client List

    DG-BR4313NG User Manual 3-4-6 Active DHCP client list If you’re using the DHCP server function of this router, you can use this function to check all active DHCP leases issued by this router. Please click ‘Active DHCP client’ menu on the left of web management interface under the ’Status’...

  • Page 131: Modem Info

    DG-BR4313NG User Manual 3-4-8 Modem Info You can use this function to check the status of the 3G/3.5G data card. Please click ‘Modem Info’ menu on the left of web management interface under the status tab and the following message will be displayed on your web browser:...

  • Page 132: Tools

    DG-BR4313NG User Manual 3-5 Tools The information provided here includes basic configuration tools, such as Save, Restore Configuration Settings and Upgrade System Firmware 3-5-1 Configuration Backup and Restore You can backup all configurations of this router to a file, so you can make several copies of router configuration for security reasons.

  • Page 133: Firmware Upgrade

    DG-BR4313NG User Manual 3-5-2 Firmware Upgrade The system software used by this router is called as ‘firmware’, just like any applications on your computer, when you replace the old application with a new one; your computer will be equipped with new function. You can also use this firmware upgrade function to add new functions to your router, even fix the bugs of this router.

  • Page 134: Reboot

    DG-BR4313NG User Manual After a firmware upgrade file is selected, click ‘Apply’ button, and the router will start firmware upgrade procedure automatically. The procedure may take several minutes, please be patient. NOTE: Never interrupt the upgrade procedure by closing the web browser or physically disconnect your computer from router.

  • Page 135: Appendix

    DG-BR4313NG User Manual 4 Appendix 4-1 Hardware Specification • Flash: 8MB • SDRAM: 32MB • WAN Port: 10/100M UTP Port x 1 • LAN Ports: 10/100M UTP Port x 4 • USB Port : 1 USB Port for 3G modem •...

  • Page 136: Troubleshooting

    DG-BR4313NG User Manual 4-2 Troubleshooting If you find that the router is not working properly or stops responding don’t panic! Before you contact your dealer of purchase for help, please read this troubleshooting first. Some problems can be solved by you within very short time.
  • Page 137 DG-BR4313NG User Manual you can still use other internet services, please check URL/Keyword filter. g. Try to reset the router and try again. h. Reset the device provided by your Internet service provider too. i. Try to use IP address instead of hostname. If you can use IP address to communicate with a remote server, but can’t use hostname, please check DNS settings.
  • Page 138 DG-BR4313NG User Manual your dealer of purchase for help. The date and time of all a. Adjust the time zone in ‘System > Time Zone’ event logs are wrong settings of the router.

  • Page 139: Glossary

    DG-BR4313NG User Manual 4-3 Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it to the destination.
  • Page 140 DG-BR4313NG User Manual A network mask is also a 32-bit binary pattern, and consists of consecutive leading 1’s followed by consecutive trailing 0’s, such as 11111111.11111111.11111111.00000000. Therefore sometimes a network mask can also be described simply as “x” number of leading 1’s.
  • Page 141 DG-BR4313NG User Manual Port: Network Clients (LAN PC) uses port numbers to distinguish one network application/protocol over another. Below is a list of common applications and protocol/port numbers: Application Protocol Port Number Telnet SMTP POP3 H.323 1720 SNMP SNMP Trap...
  • Page 142 DG-BR4313NG User Manual IP address numbers recognized by the Internet, which must be assigned by InterNIC). TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and Unreliable Datagram Protocol (UDP). TCP/IP is the standard protocol for data transmission over the Internet. Both TCP and UDP are transport layer protocols. TCP performs proper error detection and error recovery, and thus is reliable.

Table of Contents
