DG-HR1400

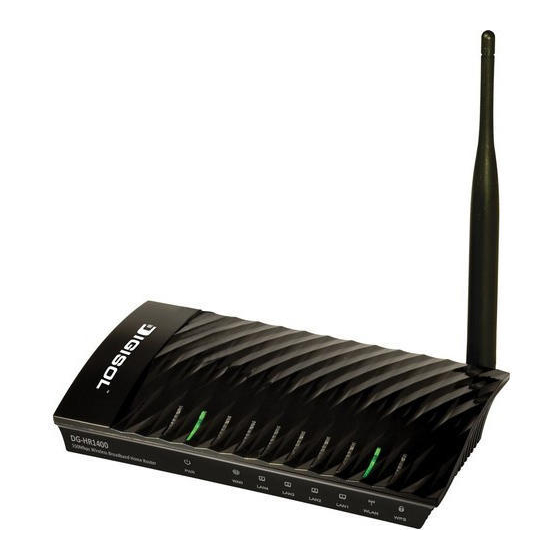

150Mbps Wireless Broadband Home Router

User Manual

V1.0
2014-01-06
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-HR1400 and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-HR1400

Summary of Contents for Digisol DG-HR1400

  • Page 1: User Manual

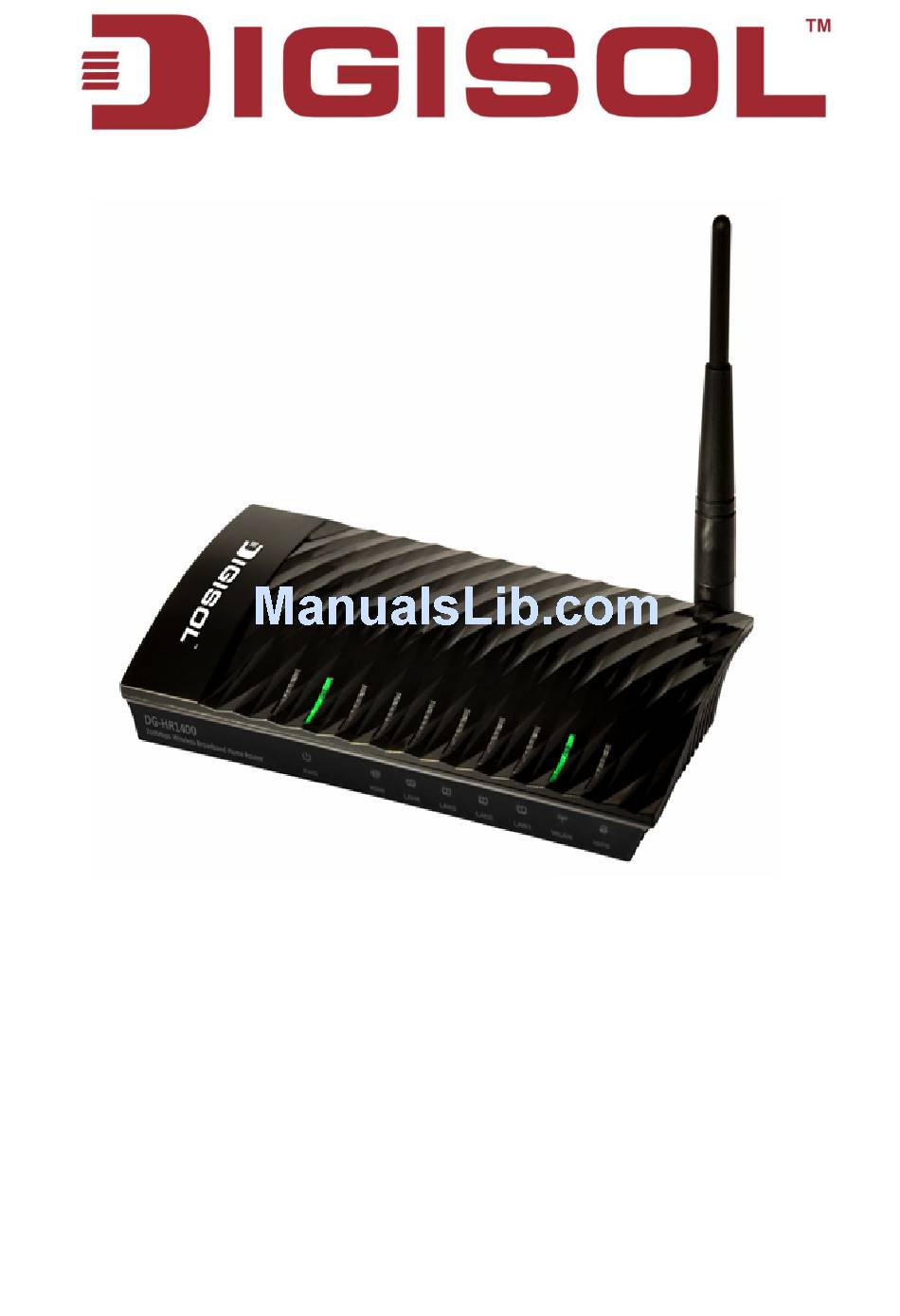

    DG-HR1400 150Mbps Wireless Broadband Home Router User Manual V1.0 2014-01-06 As our products undergo continuous development the specifications are subject to change without prior notice...
