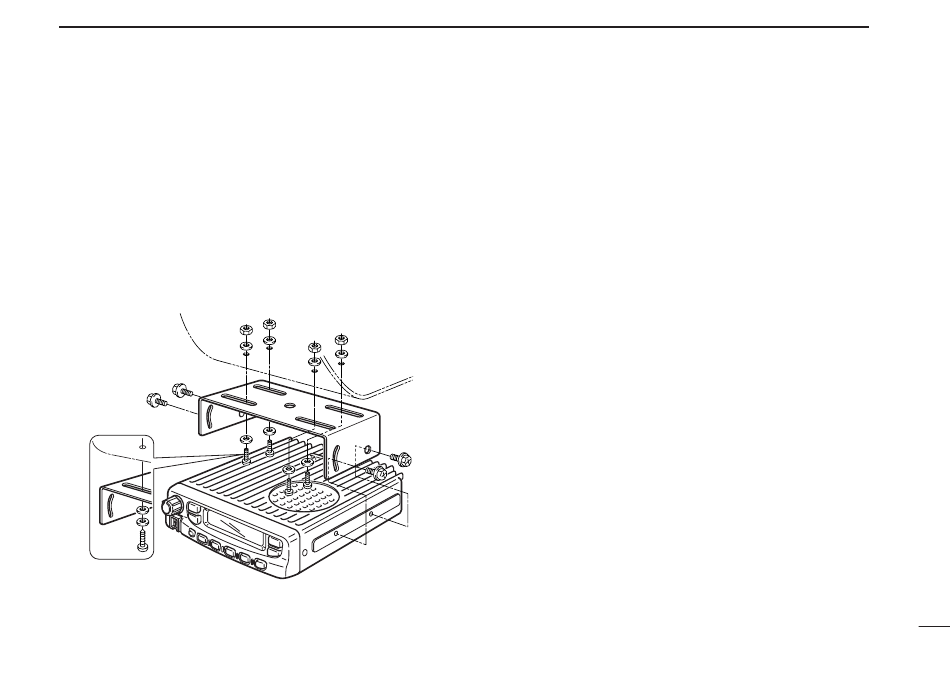

D Mounting the transceiver
The universal mounting bracket supplied with your transceiv-
er allows overhead mounting. Please read the following
instructions carefully.
• Mount the transceiver securely with the 4 supplied screws
to a thick surface which can support more than 1.5 Kg.
Flat washer
Spring washer
When using
self-tapping screws
CONNECTION AND MAINTENANCE
4
16
