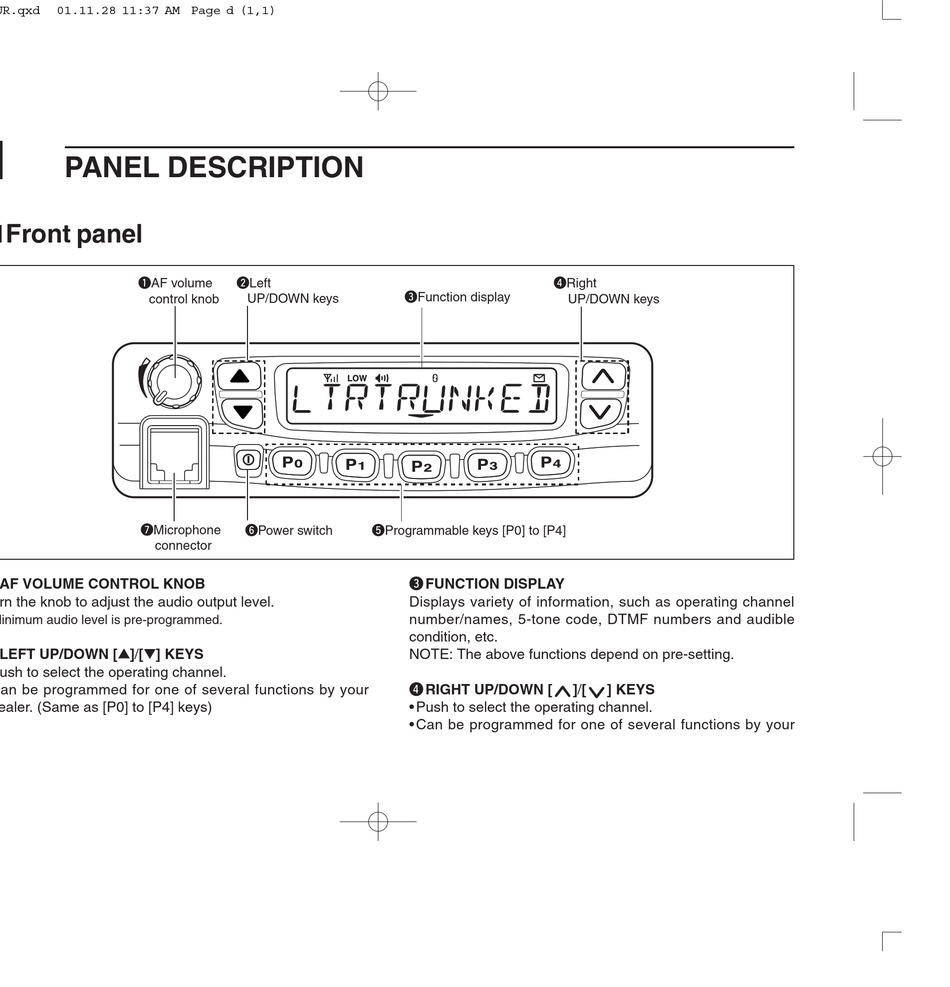

PANEL DESCRIPTION

I Front panel

q AF VOLUME CONTROL KNOB
Turn the knob to adjust the audio output level.
• Minimum audio level is pre-programmed.
w LEFT UP/DOWN [∫ ∫ ]/[√ √ ] KEYS
• Push to select the operating channel.
• Can be programmed for one of several functions by your
dealer. (Same as [P0] to [P4] keys)
1
qAF volume wLeft
UP/DOWN keys
control knob
uMicrophone
yPower switch
connector
eFunction display
tProgrammable keys [P0] to [P4]
e FUNCTION DISPLAY
Displays variety of information, such as operating channel
number/names, 5-tone code, DTMF numbers and audible
condition, etc.
NOTE: The above functions depend on pre-setting.
r RIGHT UP/DOWN [
• Push to select the operating channel.
• Can be programmed for one of several functions by your
rRight
UP/DOWN keys
]/[ ] KEYS
