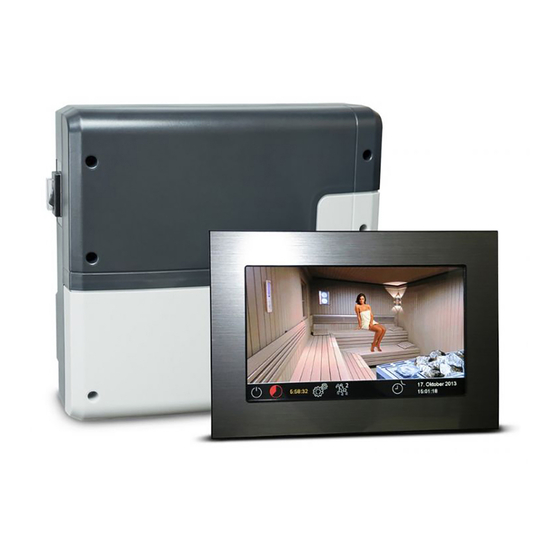

Touchscreen sauna control unit
Hide thumbs
Also See for EmoTouch II +:
- Installation and operation instruction manual (43 pages) ,
- Installation and operating manual (40 pages)
Related Manuals for EOS EmoTouch II +
Summary of Contents for EOS EmoTouch II +

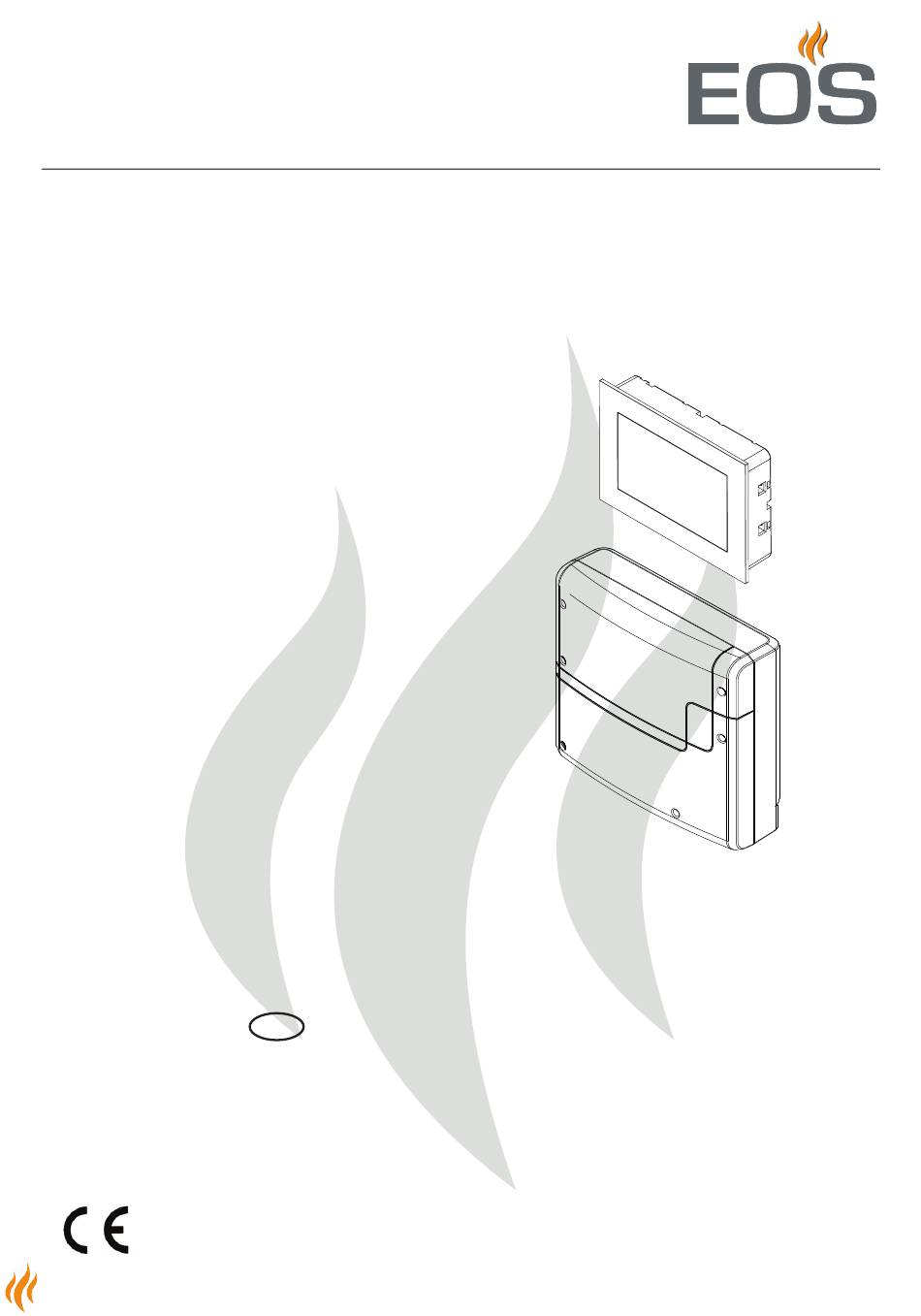

- Page 1 I N N O V A T I V E S A U N A T E C H N O L O G Y EmoTouch II + Touchscreen sauna control unit User guide and operating manual Made in Germany Druck Nr.
-
Page 2: Table Of Contents
English Contents Scope of delivery ..............................4 Accessories ................................4 Technical data ................................5 General information about sauna bathing ....................6 General safety precautions ..........................7 Electrical connections ............................9 Connection of the sauna heater ......................... 9 Connection of the sauna lighting ......................10 Connection of the power extension unit (LSG) ..................10 Heating time limitation ..........................10 Installation diagram and terminal block overview ................11... -
Page 4: Scope Of Delivery
Scope of delivery (changes are reserved) Main electronic unit (with two-part front cover) Control panel with touchscreen display Housing base for flush-mounted installation of the control panel, with mounting brackets De-installation tool (for control panel) Temperature sensor: a) housing, b) sensor board, c) overheat protection fuse, d) 2 mounting screws 4 x 40 mm, e) connection cable 5 m with RJ10 plug, f ) 2-core white cable for overhea- ting protection fuse 5 m Connection cable 5 m (main unit - touchscreen display) with RJ14 / RJ10 plugs... -
Page 5: Technical Data
Technical data Voltage (power supply): 400 V 3 N AC 50 Hz Switching capacity: max. 9 kW resistive load, may be extended with a power extension unit (LSG) Heating time limit: 6 h / 12 h / unlimited Housing: plastic, shatter-resistant Display: 7“... -
Page 6: General Information About Sauna Bathing
General information Dear customer You have purchased a high-quality technical Please check whether the unit has arrived in per- device with which you will have years of sauna fect condition. Any transport damages should be fun. This sauna control unit was designed and immediately reported to the freight forwarder inspected according to the current European delivering the goods or you should contact the... -
Page 7: General Safety Precautions
General safety precautions held within operating parameters and a minimal temperature gradient inside This device can be used by children aged • the bench area of the sauna cabin can be 8 upwards and by persons with physical, achieved only if unit is assembled correct- sensory, or mental disabilities, or who have inadequate experience and knowl- edge if they are supervised or if they have... - Page 8 ! Attention! When using control units that offer the possibility of external access (GSM-modu- le, remote button, etc.) or time-delayed switching (preselection time, weekly ti- mer, or similar) a protective system for the sauna heater is required (cover protection type 1-6 or S-Guard). ! Attention! Dear customer, according to the valid regulations, the...
-
Page 9: Electrical Connections
Electrical connection Sauna heater connection The electrical connections may only be car- ried out by a certified electrician in compli- ance with the guidelines of the local power Install the sauna heater and the vaporizer (if supply company and applicable legal regu- available) inside the sauna cabin in front of the lations (e.g. -
Page 10: Connection Of The Sauna Lighting
Sauna lamp connection Heating time limitation The maximal heating time may be limited to 6 hours, 12 hours or to set unlimited. The sauna lamp must have the protection In addition to the hardware setting the heating class of at least IPx4 and should be resistant to time will be automatically limited depending of the ambient sauna temperatures. -
Page 11: Installation Diagram And Terminal Block Overview
Connection diagram EmoTouch II+ Feuchtefühler Steckeranschluß Fühler humidity sensor Sensor plug connector Bankfühler/2nd Sensor ! ATTENTION! Ofenfühler/Sensor reserviert All electrical con- Leistungsteil Sensorbus nections and other Main unit (relay box) Relais box Saunabus works may be only light L1 U S1 3 4 carried out by an Leuchte/light Lüfter/fan... -
Page 12: Temperature Sensor
If necessary they may be added at a later time to enhance your sauna capabilities. Please contact your EOS dealer for further infor- Opening in chip mation on this and other optional equipment. Bench sensor (optional) -
Page 13: Setup (Commissioning / First Switching)
Basic Setup (commissioning / first switching) Using the control unit for the first time or after a reset The EmoTouch control unit provides quick and intuitive basic setup in four steps after the first switching (commissioning of the unit) or after the system reset. Step 1 - set language Sprache Select the required language for the... - Page 14 - dry sauna heater without vaporizer (disabled vaporizer) - Bi-O sauna heaters with vaporizer. The basic setup is now complete and the control unit will switch to the standby mode. Further special settings and custom configuration of the control unit may be carried out in the service &...
-
Page 15: Operation
Operation Control panel - graphic user interface (GUI) Digital sand timer Light Climate Colour light check (optional) Vaporizer On/Off Touch the symbol shortly to switch, touch >3 sec to make settings Temperature To make settings touch the heater >3 sec 15. -
Page 16: Operation Principle And Symbols
Operation principle with a touch screen GUI On the GUI (sauna cabin image) you can switch the functions by touching shortly the correspond- ing objects (e.g. lamp). By touching these objects >3 sec you can make settings (adjustments). The symbols in the lower black strip (except for “settings”) should be touched for >3 sec for safety reasons. -
Page 17: Symbol Description (Extended Settings)
Symbol description - extended settings „Extended settings“ sub-menu provides a range of additional functions, which normally need to be set only once or quite seldom. Touch the symbol shortly to enter this sub-menu. Language Time Here you can select one of 18 languages for Here you can the time of day. -
Page 18: Graphic User Interface / Monitoring Of Climate Conditions
Graphic user interface GUI and climate conditions check Thanks to the modern GUI you can quickly access all functions and make necessary settings, as well as make a simple instant query for the current sauna climate condition. The symbols on the start screen may be displayed in different colours, in order to indicate the current operation status - e.g. -
Page 19: Operation And Settings (Main Functions)
Operation and program settings Sauna on / off Touch the symbol for 3 sec. The sauna heater will switch on and the display will show the ac- tive heating (see page 29). The light will switch on automatically as well. To switch the sauna off, touch shortly the symbol again. - Page 20 Light on / off Touch shortly the image of the lamp on the display to switch the light on or off. Display indication: - light off, - light on. How to dim the cabin light You can quickly dim the cabin light (0-100%). Light Press the lamp image on the display for >3 sec.
- Page 21 Timer The timer function allows you to have your sauna switched on automatically with the desired cli- mate condition at some time in the future. You have two possible options: - single event (single time switching, not recurrent) Timer - week timer (regular, recurrent switching on the given day of the week, e.g.
- Page 22 Set the required start time (hours and minutes) - e.g. 9:30. Set the required heating time (hours and minutes) - e.g. 3:30. Set the required operation type - dry Finnish sauna or humid sauna (Bi-O heaters only) Set the required temperature. Set the required humidity (Bi-O heaters only).
-
Page 23: Extended Settings
Extended settings Settings Touch the symbol on the start screen to en- ter the sub-menu for extended settings. 01. January 2014 15:20:35 The sub-menu „Extended settings“ allows you to make additional settings, which normally need to be set only once or quite seldom. Touch the symbol on the start screen to enter the sub-menu for extended settings. - Page 24 Child lock / Operation lock You can lock the control panel with the individual 4-digit pin code in order to prevent the unau- thorized access. In order to lock the display go to the settings Set Code menu, select the symbol and touch it again shortly to enter the settings.
- Page 25 Operation data Here you can check the important information concerning your control unit (sauna) operation. Firmware - allows to check the currently installed firmware version. Use “+” / “-” to switch between two possible parameters. „Panel Vx.xx“ - shows the firmware in the control panel, „Mod-LS Vx.xx“...
- Page 26 Potential-free contact With the potential-free contact (output) you can switch an additional external device on or off. This might be for instance an additional light circuit, music or some other feature. This function has to be enabled in the basis setup and the external device has to be properly connected and configured.
-
Page 27: Troubleshooting
Check cable connections and restart the control unit; if the fault persists, contact the dealer or EOS service If any other unidentified error messages appear, please contact EOS service. Make sure to supply the serial number, fault details and other relevant information. -
Page 28: Main Switch (Switch-Off )
The device „Switch-off“ switch You will find the rocker switch on the left side of the main relay box. You can completely dis- connect the control unit from the mains using this switch. Attention! Parts of the printed cir- cuit board will still remain energized in the switched off condition! Risk of electric shock! Device’s main switch Press the switch on the left side of the rocker... -
Page 29: Recycling
Outside of Germany please contact your spe- cialist dealer in case of warranty claims. Direct Service Address: warranty processing with our service depart- ment is in this case not possible. EOS Saunatechnik GmbH Schneiderstriesch 1 Equipment commissioning date: 35759 Driedorf, Germany Tel: +49 (0)2775 82-514... -
Page 30: Handling Procedures For Return Shipments (Rma) - Details For All Returns
Handling procedures for return shipments (RMA) - Details for all returns ! Dear customer we hope that you will be satisfied with the purchased EOS product. In the rear case if you may have a claim and will need to return a product, please follow the procedures specified below.
