- Page 1 USER MANUAL DRIVE THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety standards Product may differ from photos...
-
Page 2: Table Of Contents
Starting up the battery: ......................... 14 2.4.5 The electric motor: ........................14 3 – CHARGING THE BATTERY: .................... 15 NEOMOUV Lithium Ion 36-volt charger .................... 15 3.1.1 Precautions (safety instructions): ..................... 16 3.1.2 Protecting the charger: ........................16 Battery ..............................17 Recommendations / precautions to take with your battery: ................. -
Page 3: 1- Presentation

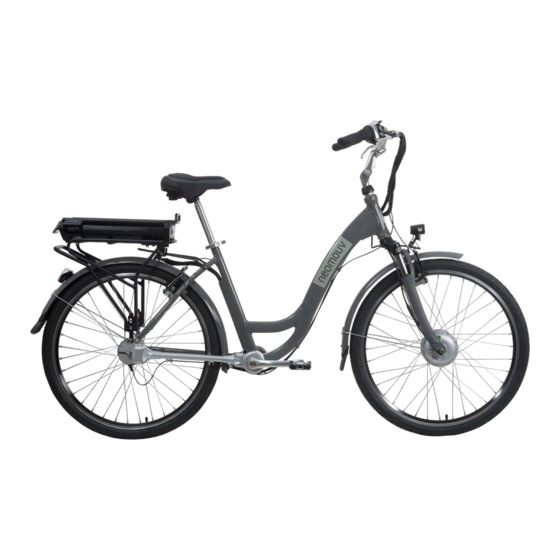

1- PRESENTATION Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) E-Bike Presentation: Display Controller Rack (max weight 25 kg) Electric motor Battery Pedal sensor Notes: • The symbol indicates important advice or essential safety measures. Follow the various instructions. -
Page 4: 2- Adjustments/Assembly
Tighten the quick-release clamp. T HE SEAT POST SHOULD NOT BE EXTENDED BEYOND THE ENGRAVED SAFETY MARK VERTICAL BARS Marque de sécurité The minimum height between the highest point of the saddle and the ground is 85 cm. DRIVE Manual... -
Page 5: Adjusting The Handlebars
T HE STEM MUST NOT COME OUT OF THE HEAD TUBE BEYOND THE ENGRAVED MARKINGS VERTICAL BARS AND MINIMUM INSERTION). THE INSCRIPTION After adjusting the angle, tighten the screw by turning it clockwise (max. tightening torque: 10 Nm). DRIVE Manual... -
Page 6: Adjusting The Brakes
(a distance of about 0.1 to 0.5 mm from the wheel rim). The result of your adjustment is correct when the wheel turns freely and stops smoothly. DRIVE Manual... -
Page 7: Rear Type V-Brake
The reflector and the rear light must not be covered by the equipment or seat that has been fitted to the rack. The load on the rack must be evenly distributed on both sides to ensure the stability of the equipment while riding on public roads. DRIVE Manual... -
Page 8: Mounting And Dismounting The Wheels (Rear Wheels To Be Handled By A Specialist)
Adjust your brake again (see section 2.3). NB: the connector is equipped with a keyed connection. Place the two pins so that they are facing each other to reconnect the motor correctly. Position the two pins correctly to reconnect the motor plug DRIVE Manual... -
Page 9: Rear Wheel
2) Tighten the 15 mm nuts while checking the centring of the wheel. 3) Reposition the derailleur cable using a screwdriver. 4) Check the adjustment of the Nexus system. 5) Try the bike. 6) If the gears slip underfoot, adjust the setting using the thumbwheel on the lever. DRIVE Manual... -
Page 10: Lights
+ button, which will switch the display's backlighting and the front and rear lights on and off. A LWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION L IGHTS ARE OBLIGATORY AT NIGHT DRIVE Manual... -
Page 11: Using The E-Bike
Position 5 = maximum power. On this position, your e-bike provides you with the most assistance but also consumes the most energy. To scroll through the assistance levels, press the + or - buttons. The power-assist selector is on the display. Assistance level DRIVE Manual... -
Page 12: Display And Controls
Reset trip information (km travelled, average speed, maximum speed): After selecting the TRIP mode, press - and + to choose TC (Trip Clearance) mode. Then, press - or to choose Y (yes) or N (no) and MODE to confirm the reset of the travel data. DRIVE Manual... -
Page 13: Electric Assistance
(10 to 20% slopes). If your travel is on flat ground and includes a number of descents (even if slight), your battery life is increased. If you are ascending inclines of more than 5% (the motor “struggles" above a grade of 8%), your battery life will diminish proportionally. DRIVE Manual... -
Page 14: Technical Specifications Of The Power-Assistance System
After 3 years or 25,000 kilometres, we advise you to get it checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. Electric motor DRIVE Manual... -
Page 15: Charging The Battery
3 – CHARGING THE BATTERY: NEOMOUV Lithium Ion 36-volt charger CHARGER FEATURES 36-volt model STC-8127LC Smart charger for a Lithium Ion battery Voltage AC220 -240 V Frequency 50-60 Hz Charging voltage (load) 42 V Output current 2.0 A LED power indicator: red... -
Page 16: Precautions (Safety Instructions)
ONTACT YOUR DEALER SHOULD ANY FAULTS OCCUR WITH YOUR CHARGER F OR YOUR SAFETY ALSO LOOK AT THE PICTOGRAMS ON THE BACK OF THE CHARGER 1) Compliance with CR standards 2) Double insulation 3) Do not throw out with household waste 4) Comply with the polarity DRIVE Manual... -
Page 17: Battery
You can charge your battery while it is on the bike (switch the key to OFF beforehand) or remove it from its holder and then charge it, always using the plug located at the back of it. For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). DRIVE Manual... -
Page 18: Recommendations / Precautions To Take With Your Battery
Your battery is recyclable after use. Return it to your dealer. Also read carefully the indications listed on the battery: The battery provided with your e-bike conforms with: • Standards EN61000-6-1 et EN61000-6-3; • Directive UN38.3 on the transport of dangerous goods; Directive 2006/66/EC. • DRIVE Manual... -
Page 19: Tips For Increasing The Battery Life Per Charge
4 - TIPS FOR INCREASING THE BATTERY LIFE PER CHARGE: Depending on the battery in your Drive, the charged battery range is 70 to 80 km (480 Wh battery) or 80 to 100 km (580 Wh battery), 100 to 110 km (630 Wh battery) or 110 to 130 km (700 Wh battery) for a user weighing 75 kg at a an average speed of 18 km/h on a journey in Eco mode. -
Page 20: Upkeep And Maintenance
O NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES OR ON THE FRONT AND REAR BRAKE SHOES C HECK THE CONDITION AND CORRECT FUNCTIONING OF THE SIGNALLING DEVICES BULBS CLEAN THEM IF NECESSARY WITH A DRY CLOTH DRIVE Manual... -
Page 21: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is mandatory when riding in traffic at night, or on days when the visibility is poor. DRIVE Manual... -
Page 22: Technical Data
Charger voltage 42 V Tyre dimensions 26’x175 Tyre pressure 3.5 bars Shimano Nexus Hub (indexed control) 9 - DECLARATION OF CE CONFORMITY Available on our website, under "Downloads" 10 - CERTIFICATE OF CONFORMITY Available on our website, under "Downloads" DRIVE Manual... -
Page 23: Terms Of Warranty
The warranty does not cover parts that are cracked or broken or show traces of visible impact WARNING! Do not confuse maintenance and warranty. Maintenance overhauls and adjustments cannot be carried out for free under warranty. Fill out your CERTIFICATE OF WARRANTY ON OUR WEBSITE www.neomouv.fr DRIVE Manual... - Page 24 SAS NEOMOUV ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000- RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183...
