Summary of Contents for neomouv PLIMOA
- Page 1 PLIMOA USER MANUAL THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS FOR SAFETY AND OPERATION. "Model complies with the safety requirements" Photos and data are not binding 11-2019...
-
Page 2: Table Of Contents
Technical specifications of the assistance system:................... 16 3.4.4 Switching on of the battery: ........................17 The electric motor: ........................... 17 4 - CHARGING THE BATTERY ......................... 18 NEOMOUV Lithium Ion 36-volt charger ...................... 18 4.1.1 Precautions (safety instructions): ......................19 4.1.2 Protecting the charger: ......................... 19 Battery: .............................. -
Page 3: 1- Introduction

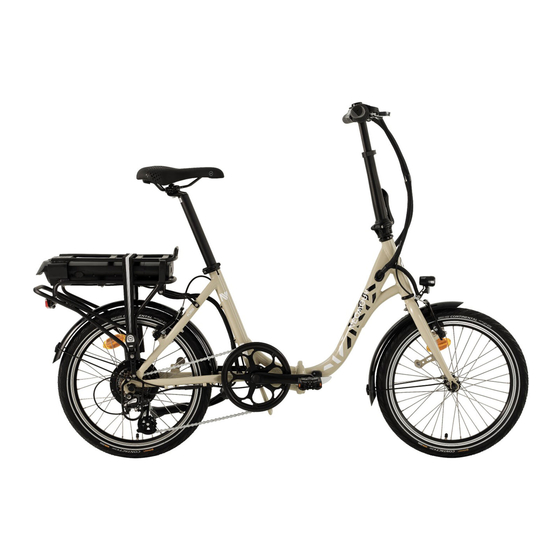

1- INTRODUCTION Thank you for choosing a NEOMOUV Electric Bike E-Bike Overview Display Controller Battery Rack (max load 25 kg) Pedal sensor Electric motor Notes: • The symbol indicates important advice or essential safety measures. Follow the various instructions. -
Page 4: 2- Adjustments / Assembly
While pedalling backwards, you should not have to move your hips from side to side. Tighten the quick release. The seat tube should not come out beyond the etched safety mark (vertical bars). Security mark Manuel PLIMOA... -
Page 5: Handlebar Adjustment
Make sure to tighten the quick release before you use your bike. For tilt adjustment, use an Allen key to loosen the 2 screws of the bracket. After adjustment, tighten the screws rotating in the direction of clockwise (tightening torque max: 11-12 Nm). Manuel PLIMOA... -
Page 6: Brake Adjustment
The pads are properly adjusted when they are in equal distance from the rim. The final adjustment is done by tightening the screws mounted on the support pads with a screwdriver (distance of about 0.1 to0.5 mm of the rim). Your setting is correct when the wheel turning freely, stops suddenly. Manuel PLIMOA... -
Page 7: Rear V-Type Brake
The reflector and the rear light must not be covered by the equipment or seat that has been fitted to the rack. The load on the rack must be evenly distributed on both sides to ensure the stability of the equipment while riding on public roads. Manuel PLIMOA... -
Page 8: Mounting And Dismounting Wheels (Rear Wheels By Specialist)
Remove the nuts and the wheel axel washers. Loosen the V-Brake’s cable clamp to release the pads and enable the removal of the wheel. Remove the chain from the wheel sprocket, while paying attention to how the chain swings. Manuel PLIMOA... -
Page 9: Lights
Position the two pins correctly to reconnect the motor plug Adjust the brake pads (see 2.3.1). Lights: Your bike is equipped with: ❖ Front and back fixed lighting. Both front and rear lamps are powered by the battery. Manuel PLIMOA... -
Page 10: Folding The Ebike
Lights are mandatory at nightfall. Folding the Ebike: The folding your electric bike is done in 5 steps: • Lower the handlebars • Fold the pedals • Fold the stand • Fold the frame • Fold the stem Manuel PLIMOA... - Page 11 4. Fold the frame The frame is now cleared and First rotate safety Then rotate the quick coupler can be folded 5. Folding the stem Then pull the handle At first, remove the plastic hook which retains the handle Manuel PLIMOA...
- Page 12 The manufacturer cannot be held responsible for any incident or accident due to defective assembly by the user. Manuel PLIMOA...
-
Page 13: Using The E-Bike
Positions 5 = maximum power. On this position, your e-bike provides you with the most assistance but also consumes the most energy. To scroll through the assistance levels, press the + and - buttons. The assistance selector is located on the left handle on the handlebar. Manuel PLIMOA... -
Page 14: The Display And Control
Walking Aid Assistance level Data: TRIP ODO or or or TIME or POWER RANGE ON / OFF Turn on or off the system (pressure during 3s) Increases the level of assistance Button "M" Decrease the level of (MODE) assistance Manuel PLIMOA... -
Page 15: The Electric Assistance
When you have reached the speed limit of 25 km/h. This principle enables the motor to give you its full power when you need it and to save battery power when you are going downhill, or on flat ground. Manuel PLIMOA... -
Page 16: Performance
Battery Range: 70 to 80 km Battery 480Wh 80 100 km for the 580Wh battery 100 to 110 km for the battery 630Wh (For a user to 75 kg at a rate of 18 km / h over a journey in Eco mode). Manuel PLIMOA... -
Page 17: Switching On Of The Battery
It requires no maintenance on your part and has the benefit of a two-year manufacturer's warranty. After 3 years or 25,000 kilometres, we advise you to get it checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. Manuel PLIMOA... -
Page 18: Charging The Battery
4 - CHARGING THE BATTERY NEOMOUV Lithium Ion 36-volt charger CHARGER FEATURES Model 36V STC-8127LC Smart charger for Lithium Ion battery Voltage AC220 V -240 Frequency 50-60 hz Charging voltage (charge) 42 V Output Current 2.0 A LED indication power red... -
Page 19: Precautions (Safety Instructions)
Contact your dealer for any failure problem on the charger. For your safety also see icons on the back of the charger. 1) Compliance with CE standards 2) Double insulation 3) Do not discard with household waste. 4) Polarity Manuel PLIMOA... -
Page 20: Battery
For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). Check that the charger is working correctly (see section 4.1). Manuel PLIMOA... -
Page 21: Battery Performance For Electric Bikes
A normal battery is designed to retain at least 70% of its original capacity after 2 years of use or 500 full charge cycles under normal conditions of use and approximately 50% after 5 years (follow the recommendations given in the manual). Manuel PLIMOA... -
Page 22: Recommandations / Precautions To Take With Your Battery
Also read carefully the indications on the battery: The battery supplies your Ebike meets: • In the standard EN61000-6-1 and EN61000-6-3 ; • At the UN38.3 Directive concerning the transport of hazardous materials ; • A Directive 2006/66 / EC Manuel PLIMOA... -
Page 23: Tips For Increasing The Battery Life Per Charge
• To prolong battery power: start up in position 1. Once your bike has started, set your assistance level and select a high gear. Maintain a constant speed. Your battery charge will last longer. Manuel PLIMOA... -
Page 24: Care And Maintenance
Do not use lubricants on the surface of the wheel rims or on the tyres, or on the front and rear brake shoes. C HECK THE CONDITION AND CORRECT FUNCTIONING OF THE LIGHTS BULBS AND CLEAN NECESSARY THEM IF WITH A DRY CLOTH Manuel PLIMOA... -
Page 25: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is advisable when riding in rural areas, in traffic at night, or on days when the visibility is poor. Manuel PLIMOA... -
Page 26: Technical Data
Brushless Nominal performance 250 watts Charger voltage 42 V Tyre dimensions 20'x210 Tyre pressure 3.5 bars Shimano dérailleur (Command indexed) Development 14, 16, 18, 21, 24, 28 (Number of teeth on the gears) Chain wheel (number of teeth) Manuel PLIMOA... -
Page 27: Statement Of Conformity
9 - STATEMENT OF CONFORMITY Available on our website:www.neomouv.com/fr/telechargement/ 10 - CERTIFICATE OF CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 11 - WARRANTY CONDITIONS For further information on warranties, please contact your store. Manuel PLIMOA... - Page 28 ZI Ouest – Allée des quatre journaux 72200 LA FLECHE contact@neomouv.com SAS with capital of € 1,200,000 - RCS 518 158 183 Le Mans SIRET 518 158 183 00013 - APE 4649Z - VAT FR 91 518 158 183 INT Manuel PLIMOA...
