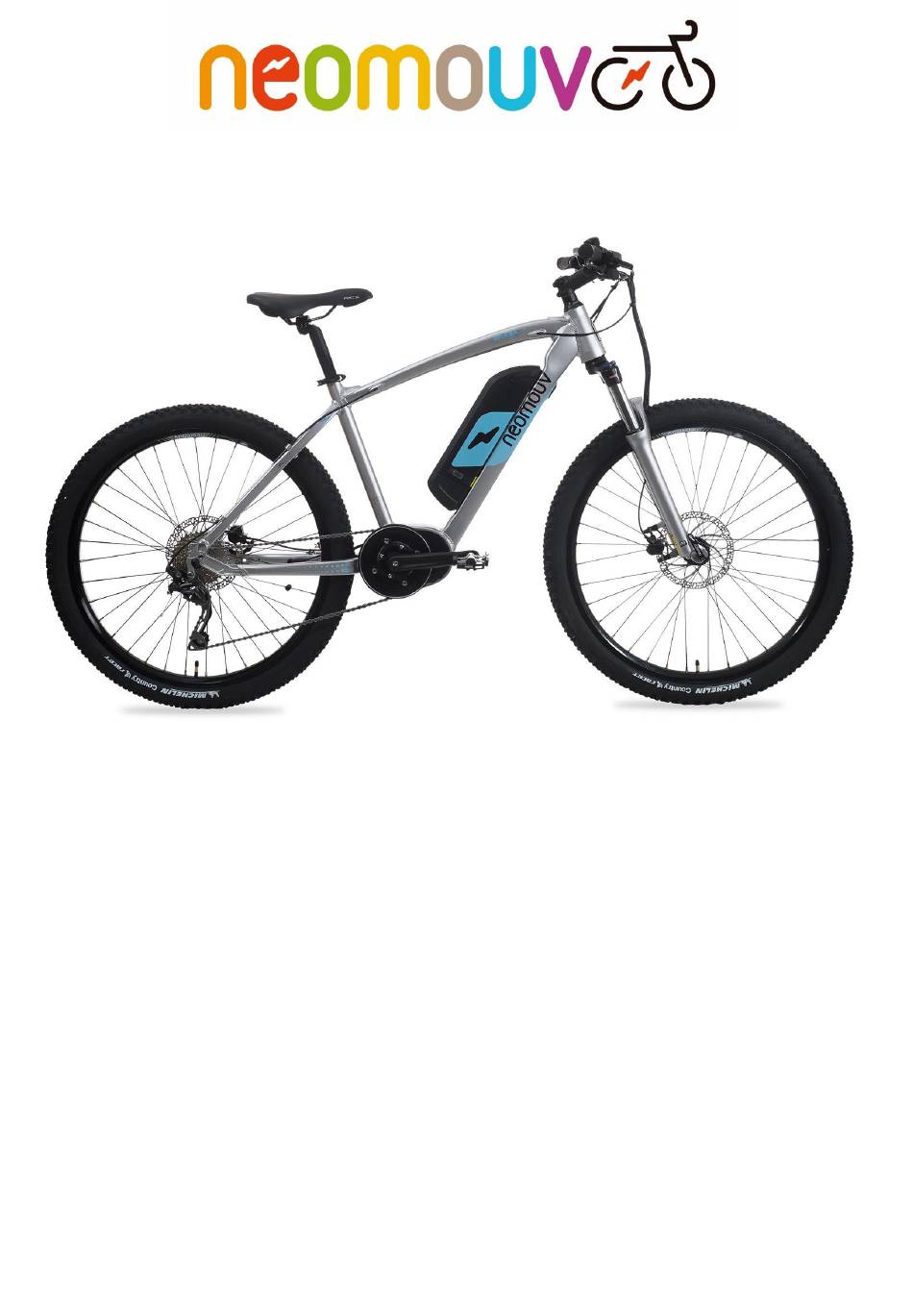

- Page 1 ENARA USER MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety requirements Product may differ from photos...
-
Page 2: Table Of Contents
The electric motor: ........................13 3.5.4 Starting up the battery: ......................... 13 4 – CHARGING THE BATTERY: .................... 14 NEOMOUV Lithium Ion 48-volt charger .................... 14 4.1.1 Precautions (safety instructions): ..................... 15 4.1.2 Protecting the charger: ........................15 Battery ..............................16 Recommendations / precautions to take with your battery: ................. -
Page 3: 1- Presentation
1- PRESENTATION Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) E-Bike Presentation: Battery Display Electric motor Torque sensor Notes: • The symbol indicates important advice or essential safety measures. Follow the various instructions. • Some adjustment and assembly/disassembly operations require special tools and expertise; perform these only if you have the skills to do so, otherwise consult your authorised dealer or a specialist. -
Page 4: 2- Adjustments/Assembly
While pedalling backwards, you should not have to move your hips from side to side. Tighten the quick release clamp (seat clamp). T HE SEAT POST SHOULD NOT BE EXTENDED BEYOND THE ENGRAVED SAFETY MARK VERTICAL BARS Safety mark ENARA Manual... -
Page 5: Adjusting The Handlebars
Adjusting the handlebars: 6 mm Allen Key You can adjust the angle of your handlebars using the four bolts located at the centre of it. Max. tightening torque: 6 Nm. Handlebar angle adjusting screw Stem adjusting screw ENARA Manual... -
Page 6: Adjusting The Brakes
(They are porous and will absorb the greasy substance). S A GENERAL RULE ADJUSTING THE HYDRAULIC DISC BRAKING SYSTEM CANNOT BE IMPROVISED RECOMMEND THAT YOU CALL A SPECIALIST SHOULD YOU HAVE ANY DOUBTS ABOUT WHAT TO DO ENARA Manual... -
Page 7: Mounting And Dismounting The Wheels
Moving backwards, insert the wheel axle into the housing on the left and right of the frame. Check the centring and positioning in line with the front wheel, as well as the positioning of the chain. Screw in and close the quick release clamp. If the wheel is not centred, perform the operation again. ENARA Manual... -
Page 8: Lights
❖ A battery-operated rear red light (2 x LR03 batteries) which is activated by a switch on the bottom of the light. A LWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION L IGHTS ARE OBLIGATORY AT NIGHT ENARA Manual... -
Page 9: Using The E-Bike
Position 5 = maximum power. On this position, your e-bike provides you with the most assistance but also consumes the most energy. To scroll through the assistance levels, press the UP and DOWN buttons. The power selector is located close to the left handle on the handlebar. Assistance level ENARA Manual... -
Page 10: Display And Controls
Speed information: Pressing and holding the UP button allows you to select the desired speed information: instantaneous, average (avg) or maximum (max). Night mode: Pressing and holding the UP and MODE buttons simultaneously will switch the backlighting on the display on and off. ENARA Manual... -
Page 11: Electric Assistance
3.4.1 Operation: Your Enara is an electrically-assisted bike: it is equipped with an electric motor, which is located in the crankset. This motor starts automatically (if the ignition is on and the battery is charged) when and only when you are pedalling (with the exception of the 6 km/h button). -
Page 12: Performance
Battery life per charge: 70 to 80 km for a 500 Wh battery 80 to 100 km for a 680 Wh battery (for a user weighing 75 kg at a speed of 18 km/h on a journey in Eco mode). ENARA Manual... -
Page 13: The Electric Motor
Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. 3.5.4 Starting up the battery: Your e-bike’s battery does not require any ignition and shuts down automatically in case of prolonged non- usage. ENARA Manual... -
Page 14: Charging The Battery
4 – CHARGING THE BATTERY: NEOMOUV Lithium Ion 48-volt charger CHARGER FEATURES 48-volt model JCLC109V55 Smart charger for a Lithium Ion battery Voltage AC100V-240V Frequency 47-63 Hz Charging voltage (load) 54.6 V Output current 2.0 A LED power indicator: red... -
Page 15: Precautions (Safety Instructions)
ONTACT YOUR DEALER SHOULD ANY FAULTS OCCUR WITH YOUR CHARGER F OR YOUR SAFETY ALSO LOOK AT THE PICTOGRAMS ON THE BACK OF THE CHARGER 1) Compliance with CR standards 2) Double insulation 3) Do not throw out with household waste 4) Comply with the polarity ENARA Manual... -
Page 16: Battery
For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). Check that the charger is working correctly (see section 4.1). ENARA Manual... -
Page 17: Recommendations / Precautions To Take With Your Battery
Your battery is recyclable after use. Return it to your dealer. Also read carefully the indications listed on the battery's sticker: The battery provided with your e-bike conforms with: • Standards EN61000-6-1 et EN61000-6-3; • Directive UN38.3 on the transport of dangerous goods; • Directive 2006/66/EC. ENARA Manual... -
Page 18: Advice For Increasing Battery Life Per Charge
• To prolong battery power: start up in position 1. Once your bike has started, set your assistance level and set the derailleur to the large development. Maintain a constant speed. Your battery charge will last longer. ENARA Manual... -
Page 19: Upkeep And Maintenance
D O NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES C ., BULBS, HECK THE CONDITION AND CORRECT FUNCTIONING OF THE SIGNALLING DEVICES CLEAN THEM IF NECESSARY WITH A DRY CLOTH ENARA Manual... -
Page 20: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is mandatory when riding in traffic at night, or on days when the visibility is poor. ENARA Manual... -
Page 21: Technical Data
Neoassist Nominal yield 250 watts Charger voltage 42 V Tyre dimensions 27,5’ Tyre pressure between 2 and 3 bars SHIMANO derailleur (indexed control) Development 11-32T (number of teeth on the sprockets) Transmission Shimano DEORE Chainring (number of teeth) ENARA Manual... -
Page 22: Declaration Of Ce Conformity
9 - DECLARATION OF CE CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 10 - CERTIFICATE OF CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 11- TERMS OF WARRANTY For any further information about warranty, please contact your store. ENARA Manual... - Page 23 SAS NEOMOUV ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000- RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183...
