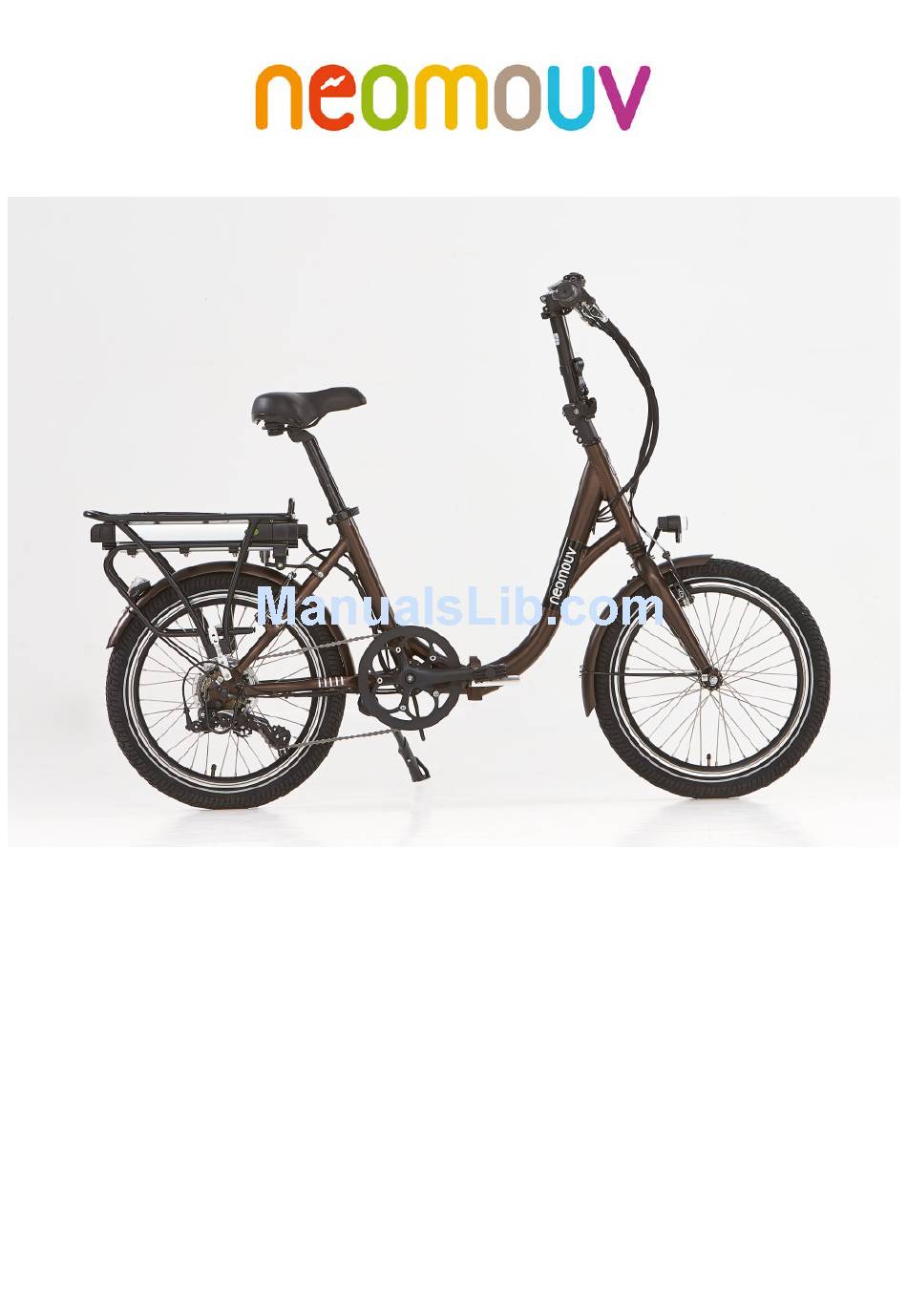

- Page 1 USER MANUAL PLIMOA THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS FOR SAFETY AND OPERATION. At the end of this manual: YOUR WARRANTY CERTIFICATE «Model complies with safety requirements»...
-
Page 2: Table Of Contents
2.4.5 The electric motor ........................18 3 - CHARGING THE BATTERY ........................19 Charger ..............................19 3.1.1 Precautions for use (safety instructions)................... 20 3.1.2 Protecting the charger ........................20 Battery ..............................21 Recommendations for your battery ...................... 22 Manual PLIMOA... - Page 3 4 - TIPS FOR INCREASED AUTONOMY ....................23 5 - SERVICING AND MAINTENANCE OF YOUR PLIMOA ..............24 Servicing ............................... 24 Lubrification ............................24 Maintenance ............................24 6 - SAFETY – RECOMMENDATIONS ......................25 7 - TECHNICAL DATA ............................ 26 8 - EC CONFORMITY STATEMENT ......................
- Page 4 • Your e-bike has a serial number engraved on the frame at the top of the fork. Serial number M : 100 . FOR YOUR SAFETY, DO NOT EXCEED THE MAXIMUM LOAD WHEN USING AXIMUM LOAD YOUR BICYCLE. Manual PLIMOA...
-
Page 5: 1- Adjustments / Assembly
Raise or lower the saddle to achieve the optimal saddle height. When pedalling, you should not have to swing your hips from side to side. Lock the quick release clamp. Manual PLIMOA... -
Page 6: Adjusting The Handlebars
Be careful to tighten the quick hitch tie fully before using your bike. To adjust the tilt, use an Allen wrench to loosen the 4 screws on the stem. Handlebar inclination adjustment screw After adjusting, firmly re-tighten the screw, with tightening torque max: 19.6Nm. Manual PLIMOA... -
Page 7: Brake Adjustment
The pads are properly adjusted when they are equidistant from the rim. The final adjustment is to tighten the screws mounted on brake holders with a screwdriver (distance of approximately 0.1 to 0.5 mm from the rim). Your setting is correct when the wheel freely rotates and stops smoothly. Manual PLIMOA... -
Page 8: Rear Brake Type V-Brake
The pads are properly adjusted when they are equidistant from the rim. The final adjustment is to tighten the screws mounted on the brake holder with a screwdriver (distance of approximately 0.1 to 0.5 mm from the rim). W ARNING WHEN RAINING OR ON WET SURFACES THE STOPPING DISTANCE INCREASES Manual PLIMOA... -
Page 9: Carrier
When loading soft luggage, the user must always carry out a safety check (e.g.: ensure no straps are hanging down, no danger of items catching in spokes, no chance of falling). The front signal light must not be hidden by any baggage, soft luggage, etc. contained in the front carrier. Manual PLIMOA... -
Page 10: Assembly And Disassembly Wheels (Rear Wheel By Specialist)
Loosen the brake cable V-Brake clamp to release the pads in order to remove the wheel. Release the chain sprocket wheel with special attention to the tilting of the chain. Remove the wheel from the frame by pulling it forwards, and remove the chain from the axle. Manual PLIMOA... - Page 11 NB The motor cable connector is fitted with coded pin. Place the two ends of the connector facing one another in order to correctly reconnect the motor. Position the two arrows one in front of the other to reconnect the motor plug. Régler les patins de freins (Cf 1.3.2). Manual PLIMOA...
-
Page 12: Lights
Undo the screw on the front face, then you have access to the batteries. Respect the polarity when inserting the new batteries Screw back on the front faceplate A LWAYS KEEP YOUR LIGHTING CLEAN AND IN GOOD CONDITION LIGHTING EQUIPMENT IS MANDATORY AT NIGHTFALL Manual PLIMOA... -
Page 13: Folding The E-Bike
4. Folding of the frame. Swivel the complete To the lowest position mechanism to clear the by using the quick frame The fixation is then undone Push the fixation upward to and the frame can be folded push away the safety clip Manual PLIMOA... - Page 14 Or accident to the user, or other 3rd party, because of a defective assembly made by the user arisen on the people physical appearance. Manual PLIMOA...
-
Page 15: Use Of An Ebicycle
Positions 5 = maximum setting. In this setting, your e-bike affords you the maximum level of assistance – but also consumes the most energy. To select assistance, press the «Mode» button boutons up or down. The assistance level selector is located to by the left handle. Assistance level Manual PLIMOA... -
Page 16: The Display
Set the time using the UP and DOWN buttons. Briefly press the MODE button to switch to the minutes setting. Set the minutes using the UP and DOWN buttons. Press and hold the MODE button to accept these changes and return to normal mode. Manual PLIMOA... -
Page 17: The Electric Assistance
(10 to 20% of the total). If your route is flat and includes a portion of declines (even gentle declines), your battery’s run life will increase. If you climb inclines steeper than 5% (the motor “struggles” on inclines of above 8%), your battery life may decrease proportionally. Manual PLIMOA... -
Page 18: Technical Specifications Of The Assistance System
After three years or 25,000 kilometers, we recommend that you have the motor serviced by an authorized dealer or a specialist. Although the motor is designed to be water-resistant, it must never be washed with a high-pressure water jet. This risks damaging the motor. This also invalidates the warranty. Manual PLIMOA... -
Page 19: Charging The Battery
According to the version of your battery, charger can have one or two diodes. In case your charger has only one diode, on top of the charger the diodes indicates when charging the battery. Manual PLIMOA... -
Page 20: Precautions For Use (Safety Instructions)
SEE ALSO FOR YOUR SAFETY SYMBOLS ON BACK OF CHARGER. 1) Indoor Use Only 2) Hazard Warning 3) Double insulation (use without earthing) 4) Read leaflet 5) Compliance with CE standards 6) Do not discard with household waste. Manual PLIMOA... -
Page 21: Battery
For a safe charging, you must first connect the charger to the battery and then connect the charger plug to the sector (220V / 50Hz). Check the operation of the charger (See: paragraph 3.1). Manual PLIMOA... -
Page 22: Recommendations For Your Battery
1) Do not open 2) Do not expose to heat 3) Recyclable product The battery supplied with your e-bike conforms to: • Test standards EN61000-6-1 and EN61000-6-3; • Testing standard UN38.3 concerning the transport of hazardous materials. • Testing standard 2006/66/EC Manual PLIMOA... -
Page 23: Tips For Increased Autonomy
4 - TIPS FOR INCREASED AUTONOMY Depending on the battery version with which your PLIMOA is equipped, the autonomy is 55 km (9Ah battery) or 70 km (12Ah battery) for a user to 75 kg at an average speed of 18km / h on a course in Eco mode. -
Page 24: Servicing And Maintenance Of Your Plimoa
5 - SERVICING AND MAINTENANCE OF YOUR PLIMOA 5.1 Servicing: In order to preserve your bike, maintain it regularly: - Change the brake pads when they are damaged. - Clean regularly your bike with water and soap. - Neither use detergent or gasoline nor high pressure squirt. -
Page 25: Safety - Recommendations
For your safety, it is advised that you systematically switch on the e-bike’s lights. We strongly recommend that you wear a helmet. Wearing a reflective jacket is obligatory when riding in non-urban areas at night, or during the day if visibility levels are insufficient. Manual PLIMOA... -
Page 26: Technical Data
Brushless Motor power (w) 250 watts Charger voltage 36 V Dimension of the tire 20’x210 Pressure of the tire 2.8 à 4.5 bars Derailleur SHIMANO indexed control Developpement 14, 16, 18, 21, 24, 28 Chainring (number of teeth) Manual PLIMOA... -
Page 27: Ec Conformity Statement
Certify that: The Néomouv product PLIMOA E-BIKE conforms to the following safety standards: EN 14764 - EN 15194 – CRITT CERTIFICATE N° These conformities are valid on the condition that the product to which they apply is assembled and used in line with the instructions provided in the user manual. -
Page 28: Warranty Conditions
WARNING! Do not confuse servicing and warranty. Maintenance overhauls and adjustments may not be made for free in the name of the warranty. Return one photocopy of the warranty certificate, completed, to the address at the bottom of this certificate. Manual PLIMOA... -
Page 29: Warranty Certificate
-------------------------------------------------------------------------------------------------------------------------------------- Postal code : City :------------------- Country :----------------- Email : --------------------------------------------- Model PLIMOA Serial number of your electric bike:-------------------------------------------------------------------------------------------- Serial number of the battery:--------------------------------------------------------------------------------------------------- Date of purchase:----------------------------------------------------------------------------------------------------------------- Signature of the buyer:-------------------------------------------------------------------------------------------------------- «This certificate is an annex to the document entitled «warranty conditions» chapter 10 of user manual PLIMOA electric bike’s;... - Page 30 Manual PLIMOA...
-
Page 31: Conformity Certificate
72200 La Flèche Atteste que le modèle de vélo à assistance électrique PLIMOA Répond aux exigences des directives 2006/42/EC et 2004//108/EC et est conforme aux tests des normes EN 14764 et EN 15194. La Flèche le 26.02.2015 Le directeur général Manual PLIMOA... - Page 32 ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE FRANCE contact@neomouv.fr LLC with capital of 360 000€ - RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183 Manual PLIMOA...
