- Page 1 USER MANUAL CRONOS THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety requirements Product may differ from photos...
-
Page 2: Table Of Contents
Battery: ..............................16 Recommendations / precautions to take with your battery: ................. 17 5 - ADVICE FOR INCREASING BATTERY LIFE PER CHARGE: ..........18 6 – UPKEEP AND MAINTENANCE OF YOUR CRONOS: ............19 Upkeep: ..............................19 Lubrication: ............................19 Maintenance: ............................ -
Page 3: 1-Presentation

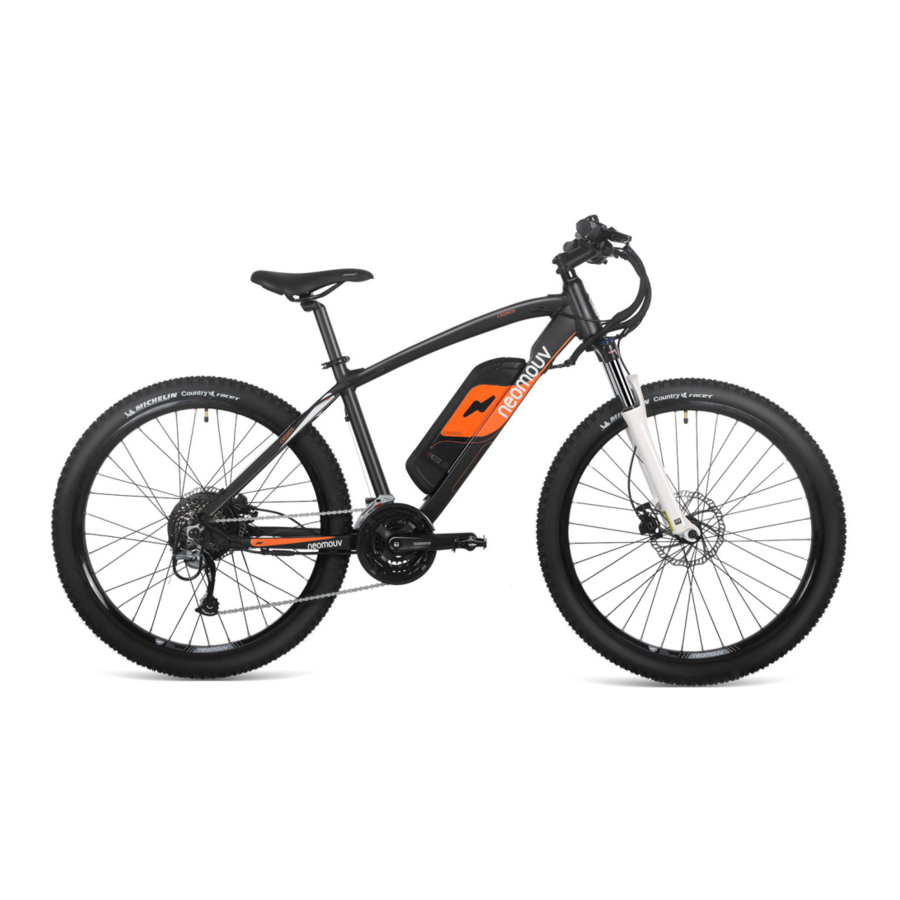

1-PRESENTATION: Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) E-Bike Presentation: Battery Display Electric motor Rotation sensor Notes: The symbol indicates important advice or essential safety measures. Follow the various instructions. • Some adjustment and assembly/disassembly operations require special tools and expertise; perform •... -
Page 4: 2- Adjustments/Assembly
The required user (cyclist) height for optimal utilisation of the bike ranges from 1.65 to 1.90 m. Adjust your saddle height to the optimal sitting position as follows: Loosen the quick release clamp: Quick release clamp CRONOS Manual... -
Page 5: Fork Adjustment
Fork adjustment: The Cronos’s fork is adjustable and lockable. Locking is carried out by using the red thumbwheel at the top of the fork. The firmness of the suspension is adjusted by using the thumbwheel on the other shoulder of the fork. -
Page 6: Adjusting The Hydraulic Disc Brakes
14 mm open-ended spanner Dismounting the front wheel: First, you must loosen the wheel’s fastenings. Once this has been done, slide the wheel forward to remove it. Insert a piece of plastic in the calliper (between the two pads). CRONOS Manual... -
Page 7: Rear Wheel
Check the centring and positioning in line with the front wheel, as well as the positioning of the chain. Screw on the wheel nuts on both sides without tightening them. Check the positioning, centring, and position of the chain again. CRONOS Manual... -
Page 8: Lights
A battery-operated rear red light (2 x LR03 batteries) which is activated by a switch on the bottom of the light. A LWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION L IGHTS ARE OBLIGATORY AT NIGHT CRONOS Manual... -
Page 9: Using The E-Bike
Position 5 = maximum power. On this position, your e-bike provides you with the most assistance but also consumes the most energy. To scroll through the assistance levels, press the UP and DOWN buttons. The assistance selector is located close to the left handle on the handlebar. Assistance level CRONOS Manual... -
Page 10: Display And Controls
Speed information: Pressing and holding the UP button allows you to select the desired speed information: instantaneous, average (avg) or maximum (max). Night mode: Pressing and holding the UP and MODE buttons simultaneously will switch the backlighting on the display on and off. CRONOS Manual... -
Page 11: Electric Assistance
3.3.1 Operation: Your Cronos is an electric-assisted bike: it is equipped with an electric motor located on the rear wheel. This motor starts automatically (if the ignition is on and the battery is charged) when and only when you are pedalling (with the exception of the 6 km/h button). -
Page 12: Performance
(10 to 20% slopes). If your travel is on flat ground and includes a number of descents (even if slight), your battery life is increased. If you are ascending inclines of more than 5% (the motor “struggles" above a grade of 8%), your battery life will diminish proportionally. CRONOS Manual... -
Page 13: Technical Specifications Of The Power-Assistance System
After 3 years or 25,000 kilometres, we advise you to get it checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. Electric motor CRONOS Manual... -
Page 14: Charging The Battery
4 – CHARGING THE BATTERY: NEOMOUV Lithium Ion 48-volt charger CHARGER FEATURES 48-volt model JCLC109V55 Smart charger for a Lithium Ion battery Voltage AC100V-240V Frequency 47-63 Hz Charging voltage (load) 54.6 V Output current 2.0 A LED power indicator: red... -
Page 15: Precautions (Safety Instructions)
ONTACT YOUR DEALER SHOULD ANY FAULTS OCCUR WITH YOUR CHARGER F OR YOUR SAFETY ALSO LOOK AT THE PICTOGRAMS ON THE BACK OF THE CHARGER 1) Compliance with CR standards 2) Double insulation 3) Do not throw out with household waste 4) Comply with the polarity CRONOS Manual... -
Page 16: Battery
For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). Check that the charger is working correctly (see section 4.1). CRONOS Manual... -
Page 17: Recommendations / Precautions To Take With Your Battery
Return it to your dealer. Also read carefully the indications listed on the battery: The battery provided with your e-bike conforms with: Standards EN61000-6-1 et EN61000-6-3; • Directive UN38.3 on the transport of dangerous goods; • Directive 2006/66/EC. • CRONOS Manual... -
Page 18: Advice For Increasing Battery Life Per Charge
5 - ADVICE FOR INCREASING BATTERY LIFE PER CHARGE: Depending on the battery in your Cronos, the charged battery range is 70 to 80 km (500-Wh battery) or 100 to 120 km (680-Wh battery) for a user weighing 75 kg at a an average speed of 18 km/h on a journey in Eco mode. -
Page 19: Upkeep And Maintenance Of Your Cronos
6 – UPKEEP AND MAINTENANCE OF YOUR CRONOS: Upkeep: To keep your bike in good working order, maintain it regularly: Replace the brake pads as soon as they become worn. Clean your bike regularly with a sponge and soapy water. -
Page 20: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is mandatory when riding in traffic at night, or on days when the visibility is poor. CRONOS Manual... -
Page 21: Technical Data
+ 3 front chainrings (number of teeth) 22, 32, and 42 9 - DECLARATION OF CE CONFORMITY Available on our website, under the heading “Downloads” 10 - CERTIFICATE OF CONFORMITY Available on our website, under the heading “Downloads” CRONOS Manual... -
Page 22: Terms Of Warranty
The warranty does not cover parts that are cracked or broken or show traces of visible impact. WARNING! Do not confuse maintenance and warranty. Maintenance overhauls and adjustments cannot be carried out for free under the warranty. Fill out your CERTIFICATE OF WARRANTY ON OUR WEBSITE www.neomouv.fr CRONOS Manual... - Page 24 SAS NEOMOUV ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000- RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183...
