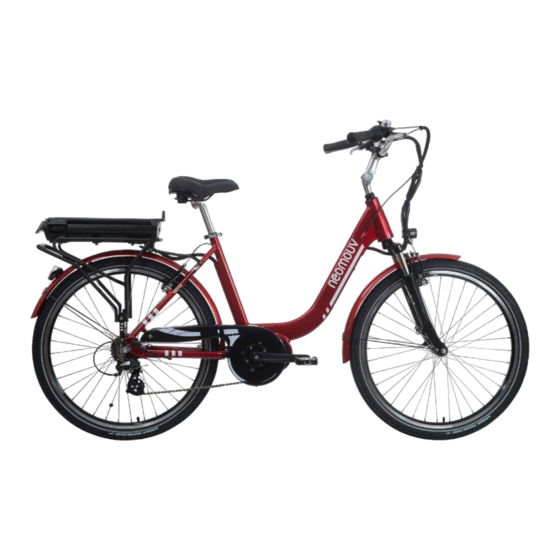

- Page 1 KALYSO KALYSO HY KALYSO NUVINCI USER MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety standards Product may differ from photos...
-
Page 2: Table Of Contents
Front V-Brake (modèle Kalyso): ....................7 2.3.2 Rear V-Brake (modèle Kalyso): ..................... 8 2.3.3 Hydraulic brakes (Kalyso Hydraulique and Kalyso Nuvinci models): ..........8 Rack: ................................ 9 Mounting and dismounting the wheels....................9 2.5.1 Front wheel (Kalyso and Kalyso Hydraulique model): ..............9 2.5.2... - Page 3 7 - SAFETY – RECOMMENDATIONS: ................... 23 8 – TECHNICAL DATA ......................24 9 - DECLARATION OF CE CONFORMITY ................25 10 - CERTIFICATE OF CONFORMITY .................. 25 11 – TERMS OF WARRANTY ....................25 KALYSO – KALYSO HY – KALYSO NV manual...
-
Page 4: 1- Presentation
1- PRESENTATION Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) E-Bike Presentation: Controller Display Rack (max load 25 kg) Battery Electric motor Torque sensor Notes: • The symbol indicates important advice or essential safety measures. Follow the various instructions. -
Page 5: 2- Adjustments/Assembly
While pedalling backwards, you should not have to move your hips from side to side. Loosen the quick release clamp (seat clamp). T HE SEAT POST SHOULD NOT BE EXTENDED BEYOND THE ENGRAVED SAFETY MARK VERTICAL BARS Safety mark KALYSO – KALYSO HY – KALYSO NV manual... -
Page 6: Adjusting The Handlebars
HE STEM MUST NOT COME OUT OF THE HEAD TUBE BEYOND THE ENGRAVED MARKINGS VERTICAL BARS AND MINIMUM INSERTION). THE INSCRIPTION After adjusting the angle, tighten the screw by turning it clockwise (max. tightening torque: 10 Nm). KALYSO – KALYSO HY – KALYSO NV manual... -
Page 7: Adjusting The Brakes
(a distance of about 0.1 to 0.5 mm from the wheel rim). The result of your adjustment is correct when the wheel turns freely and stops smoothly. KALYSO – KALYSO HY – KALYSO NV manual... -
Page 8: Rear V-Brake (Modèle Kalyso)
S A GENERAL RULE THE HYDRAULIC DISC BRAKING SYSTEM SHOULD NOT BE ADJUSTED BY NON EXPERTS RECOMMEND THAT YOU CALL A SPECIALIST SHOULD YOU HAVE ANY DOUBTS ABOUT WHAT TO DO KALYSO – KALYSO HY – KALYSO NV manual... -
Page 9: Rack
If the wheel is not centred, loosen the nuts and perform the operation again. Do not adjust the locknuts, you may damage the bearings. Adjust your brake again (for the Kalyso model: see section 2.3.2) KALYSO – KALYSO HY – KALYSO NV manual... -
Page 10: Rear Wheel (Kalyso And Kalyso Hydraulique Model)
NB: the connector is equipped with a keyed connection. Place the two pins so that they are facing each other (follow the arrows). Position the two pins correctly to reconnect the motor plug Adjust the brake pads (see Chapter 2.3). KALYSO – KALYSO HY – KALYSO NV manual... -
Page 11: Front Wheel (Kalyso Nuvinci Model)
❖ Fixed front and rear lighting. The front and rear lights are powered by the battery. The lights are switched on by pressing the button on the controls for 1 second. A LWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION L IGHTS ARE OBLIGATORY AT NIGHT KALYSO – KALYSO HY – KALYSO NV manual... -
Page 12: Using The E-Bike
The twist-shifter is on the right-hand side of the handlebars; twist it up and down to choose your position. Flat terrain Steep incline Change your position with the help of the pictogram on the handle, which shows the type of terrain you are riding on. KALYSO – KALYSO HY – KALYSO NV manual... -
Page 13: Electronic Gear Shifting
6 km/h. Assistance level: Press briefly and simultaneously on the buttons to change the assistance level, with 5 being the highest level. KALYSO – KALYSO HY – KALYSO NV manual... -
Page 14: Electric Assistance
“controller”. W E WOULD LIKE YOU TO NOTE THAT ACTIVATION OR DEACTIVATION OF POWER ASSISTANCE MAY LEAD TO ABRUPT ACCELERATION OR DECELERATION KALYSO – KALYSO HY – KALYSO NV manual... -
Page 15: Performance
80 to 100 km for a 580 Wh battery 100 to 110 km for a 630 Wh battery (for a user weighing 75 kg at a speed of 18 km/h on a journey in Eco mode). KALYSO – KALYSO HY – KALYSO NV manual... -
Page 16: Starting Up The Battery
After 3 years or 25,000 kilometres, we advise you to get it checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. Electric motor KALYSO – KALYSO HY – KALYSO NV manual... -
Page 17: Charging The Battery
It is easy to operate: plug the charger’s output jack into your battery’s socket, then plug it into the mains. Connect the charger plug to the battery first and then to the mains. KALYSO – KALYSO HY – KALYSO NV manual... -
Page 18: Precautions (Safety Instructions)
OR YOUR SAFETY ALSO LOOK AT THE PICTOGRAMS ON THE BACK OF THE CHARGER 1) Compliance with CR standards 2) Double insulation 3) Do not throw out with household waste Comply with the polarity KALYSO – KALYSO HY – KALYSO NV manual... -
Page 19: Battery
For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). Check that the charger is working correctly (see section 4.1). KALYSO – KALYSO HY – KALYSO NV manual... -
Page 20: Recommendations / Precautions To Take With Your Battery
Also read carefully the indications listed on the battery's sticker: The battery provided with your e-bike conforms with: • The standards EN61000-6-1 et EN61000-6-3; • The UN38.3 directive on the transport of dangerous goods; • Directive 2006/66/EC; • KALYSO – KALYSO HY – KALYSO NV manual... -
Page 21: Tips For Increasing The Battery Life Per Charge
To prolong battery power: start up in position 1. Once your bike has started, set your assistance level and set the Nexus hub to the large development. Maintain a constant speed. Your battery charge will last longer. KALYSO – KALYSO HY – KALYSO NV manual... -
Page 22: Upkeep And Maintenance
O NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES OR ON THE FRONT AND REAR BRAKE SHOES C HECK THE CONDITION AND CORRECT FUNCTIONING OF THE SIGNALLING DEVICES BULBS AND CLEAN THEM IF NECESSARY WITH A DRY CLOTH KALYSO – KALYSO HY – KALYSO NV manual... -
Page 23: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is mandatory when riding in traffic at night, or on days when the visibility is poor. KALYSO – KALYSO HY – KALYSO NV manual... -
Page 24: Technical Data
26’ or 28’ Tyre pressure 3.5 bars SHIMANO derailleur (indexed control) Development 14, 16, 18, 20, 22, 24, 28 (number of teeth on the sprockets) Transmission Nuvinci infinity 330 Chainring (number of teeth) KALYSO – KALYSO HY – KALYSO NV manual... -
Page 25: Declaration Of Ce Conformity
9 - DECLARATION OF CE CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 10 - CERTIFICATE OF CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 11 - TERMS OF WARRANTY For any further information about warranty, please contact your store. KALYSO – KALYSO HY – KALYSO NV manual... - Page 26 SAS NEOMOUV ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000- RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183...
