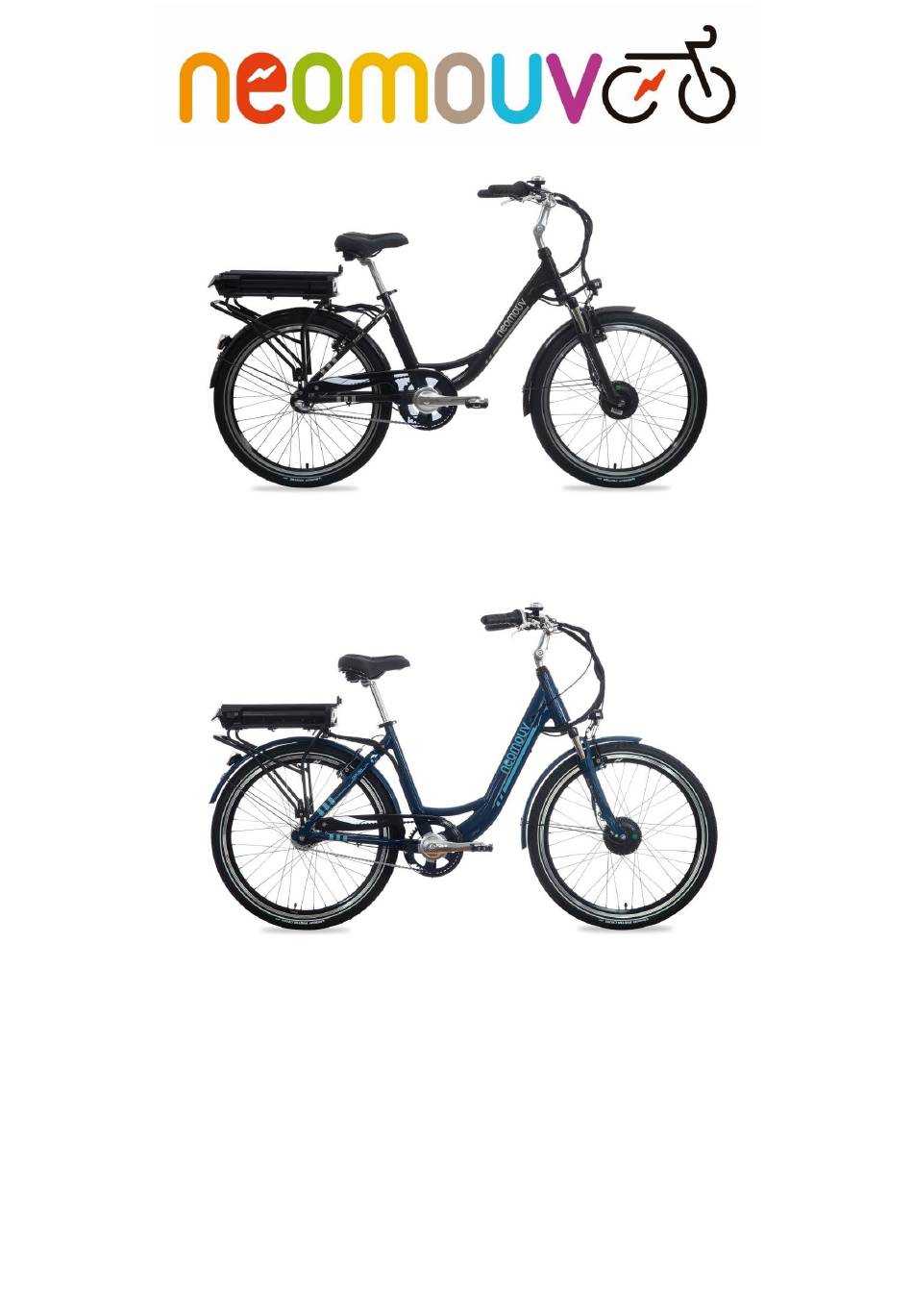

- Page 1 FACELIA N3 CARLINA N7 USER MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety standards Product may differ from photos...
-
Page 2: Table Of Contents
Technical specifications of the power-assistance system:.............. 14 3.4.4 Starting up the battery: ........................14 Electric motor: ............................14 CHARGING THE BATTERY: ......................15 NEOMOUV Lithium Ion 36-volt charger ..................... 15 4.1.1 Precautions (safety instructions): ....................16 4.1.2 Protecting the charger: ........................16 Battery .............................. -
Page 3: Presentation
PRESENTATION Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) Gauge E-Bike Presentation: Controller Battery Rack (25kg max) Electric motor Pedalling sensor Notes: • The symbol indicates important advice or essential safety measures. Follow the various instructions. • Some adjustment and assembly/disassembly operations require special tools and expertise; perform these only if you have the skills to do so, otherwise consult your authorised dealer or a specialist. -
Page 4: Adjustments/Assembly
This will give you the IL (inside leg) measurement. Tighten the quick-release clamp. FACELIA N3/ CARLINA N7 Manual... -
Page 5: Adjusting The Handlebars And The Stem
HE STEM MUST NOT COME OUT OF THE STEERING TUBE BEYOND THE ENGRAVED MARKINGS VERTICAL BARS AND MINIMUM INSERTION). THE INSCRIPTION After adjusting the angle, tighten the bolt by turning it clockwise (max. tightening torque: 10 Nm). FACELIA N3/ CARLINA N7 Manual... -
Page 6: Adjusting The Brakes
The result of your adjustment is correct when the wheel turns freely and stops smoothly. NB: the action on the brake handle is also applied progressively thanks to the SHIMANO compensator, which ensures effective ABS-type braking. FACELIA N3/ CARLINA N7 Manual... -
Page 7: Rear V-Type Brake
2.4 Adjusting the 3- or 7-speed Nexus: The Nexus should be adjusted by a specialist. In theory, the Nexus does not require any maintenance, but the cable may gradually slacken. Nexus 3 for your FACELIA Nexus 7 for your CARLINA FACELIA N3/ CARLINA N7 Manual... -
Page 8: Rack
First loosen the V-Brake’s cable clamp to release the pads and enable the removal of the wheel. Then, unscrew the cap nuts on each side and remove the washers. Raise the bike and tap lightly on the top of the tyre to remove the wheel. FACELIA N3/ CARLINA N7 Manual... -
Page 9: Rear Wheel
Screw on the wheel nuts on both sides without tightening them. Check the positioning, centring and position of the chain again. Alternately and progressively tighten the wheel nuts on each side (max. tightening torque 25 Nm). Replace the nut covers. Adjust the brake pads (see section 2.3.1). FACELIA N3/ CARLINA N7 Manual... -
Page 10: Lights
❖ Fixed front and rear lighting. The front and rear lights are powered by the battery. The lights are activated by pressing the UP and MODE buttons on the control pad simultaneously. ❖ Always keep your lights clean and in good condition. Lights are obligatory at night. FACELIA N3/ CARLINA N7 Manual... -
Page 11: Using The E-Bike
Position 5 = maximum power. On this position, your e-bike provides you with the most assistance but also consumes the most energy. To scroll through the assistance levels, press the UP and DOWN buttons. The power-assistance selector is located close to the left handle on the handlebar. Assistance level FACELIA N3/ CARLINA N7 Manual... -
Page 12: Display And Controls
Press and hold the MODE button to accept your changes and return to normal mode. Reset trip information (km travelled, average speed, maximum speed): After selecting the TRIP mode, press and hold Down and MODE simultaneously to reset the trip data to zero. FACELIA N3/ CARLINA N7 Manual... -
Page 13: Electric Assistance
(even if slight), your battery life is increased and may extend to 55 km. If you are ascending inclines of more than 5% (the motor “struggles" above a grade of 8%), your battery life will diminish proportionally. FACELIA N3/ CARLINA N7 Manual... -
Page 14: Technical Specifications Of The Power-Assistance System
After 3 years or 25,000 kilometres, we advise you to get it checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. Electric motor FACELIA N3/ CARLINA N7 Manual... -
Page 15: Charging The Battery
This charging time, referred to as “slow”, is deliberate in order to preserve the life of your battery. It is easy to operate: plug the charger’s output jack into your battery’s socket, then plug it into the mains. Connect the charger plug to the battery first and then to the mains. FACELIA N3/ CARLINA N7 Manual... -
Page 16: Precautions (Safety Instructions)
OR YOUR SAFETY ALSO LOOK AT THE PICTOGRAMS ON THE BACK OF THE CHARGER 1) Compliance with CR standards 2) Double insulation 3) Do not throw out with household waste 4) Comply with the polarity FACELIA N3/ CARLINA N7 Manual... -
Page 17: Battery
For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). Check that the charger is working correctly (see section 4.1). FACELIA N3/ CARLINA N7 Manual... -
Page 18: Recommendations / Precautions To Take With Your Battery
ETURN IT TO YOUR DEALER Also read carefully the indications listed on the battery: The battery provided with your e-bike conforms with: • Standards EN61000-6-1 et EN61000-6-3; • Directive UN38.3 on the transport of dangerous goods; • Directive 2006/66/EC. FACELIA N3/ CARLINA N7 Manual... -
Page 19: Tips For Increasing The Battery Life Per Charge
To prolong battery power: start up in position 1. Once your bike has started, set your assistance level and set the Nexus hub to the large development. Maintain a constant speed. Your battery charge will last longer. FACELIA N3/ CARLINA N7 Manual... -
Page 20: Upkeep And Maintenance
O NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES OR ON THE FRONT AND REAR BRAKE SHOES C HECK THE CONDITION AND CORRECT FUNCTIONING OF THE SIGNALLING DEVICES BULBS CLEAN THEM IF NECESSARY WITH A DRY CLOTH FACELIA N3/ CARLINA N7 Manual... -
Page 21: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is mandatory when riding in rural areas, in traffic at night, or on days when the visibility is poor. FACELIA N3/ CARLINA N7 Manual... -
Page 22: Technical Data
Voltage (v) Motor: Brushless Nominal yield (w) 250 watts Charger Charger voltage 42 V Tyre dimensions 24’x185 Tyre pressure 3.5 bars SHIMANO derailleur (indexed control) Transmission Shimano Nexus hub with 3 speeds Chainring (number of teeth) FACELIA N3/ CARLINA N7 Manual... -
Page 23: Declaration Of Ce Conformity
DECLARATION OF CE CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 10 - CERTIFICATE OF CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 11 - TERMS OF WARRANTY For any further information about warranty, please contact your store. FACELIA N3/ CARLINA N7 Manual... - Page 24 SAS NEOMOUV ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000- RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183...
