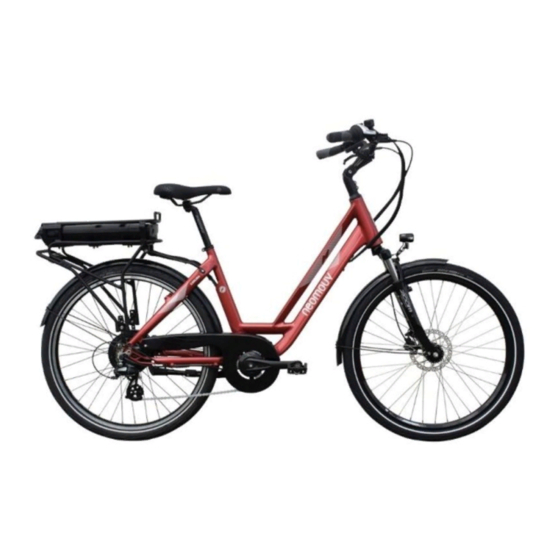

- Page 1 CARLINA LINARIA FACELIA USER MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS « Model conforms to safety standards » Product may differ from photos 11-2019...
-
Page 2: Table Of Contents
Indexed gearshift: ..........................13 Electronic gear shifting: ........................13 Display ..............................14 3.3.1 Operation of the display (LINARIA): ....................14 3.3.2 Operation of the display (CARLINA et FACELIA): ............... 15 Electric assistance:..........................17 3.4.1 Operation: ............................17 3.4.2 Performance :............................ 17 3.4.3 Technical specifications of the power-assistance system :............... -
Page 3: Introduction
INTRODUCTION Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) Your E-Bike: Display Controller Battery Rack (25kg max) Electric motor Pedal sensor Notes : • The symbol indicates important advice or essential safety measures. Follow the various instructions. •... -
Page 4: Adjustements / Assembly
Raise or lower the saddle to get the correct height. While pedalling backwards, you should not have to move your hips from side to side. Loosen the quick-release seat clamp. Quick-release Clamp Tighten the quick-release clamp: 8Nm. Manuel CARLINA – FACELIA – LINARIA... -
Page 5: Adjusting The Handlebars And The Stem
6 Nm. T HE STEM MUST NOT COME OUT OF THE HEAD TUBE BEYOND THE ENGRAVED MARKINGS VERTICAL BARS AND THE “MINIMUM INSERTION”). INSCRIPTION Manuel CARLINA – FACELIA – LINARIA... -
Page 6: Adjusting The Handlebars And The Stem
To adjust the inclination of your handlebar, loosen one of the 2 nuts using a 5mm Allen key. Once you have adjusted the angle, tighten the bolts vigorously, maximum tightening torque: 11 - 12 Nm. Manuel CARLINA – FACELIA – LINARIA... -
Page 7: Adjusting The Brakes
The pads are in the right position when they are an equal distance from the wheel rim. The final adjustment is made by tightening the screws on the brake shoes with a screw driver (a distance of about 0.1 to 0.5 mm from the wheel rim). Manuel CARLINA – FACELIA – LINARIA... -
Page 8: Rear V-Type Brake
The pads are properly adjusted when they are at equal distance from the rim. The control of your adjustment is correct, when the wheel, turning freely, stops smoothly. W ARNING N WET WEATHER OR ON DAMP GROUND THE BRAKING DISTANCE INCREASES Manuel CARLINA – FACELIA – LINARIA... -
Page 9: Hydraulic Brakes (Only For Carlina)
(They are porous and will absorb the greasy substance). S A GENERAL RULE THE HYDRAULIC DISC BRAKING SYSTEM SHOULD NOT BE ADJUSTED BY NON EXPERTS E RECOMMEND THAT YOU CALL A SPECIALIST SHOULD YOU HAVE ANY DOUBTS ABOUT WHAT TO DO Manuel CARLINA – FACELIA – LINARIA... -
Page 10: Rack
(max. tightening torque 25 Nm). If the wheel is not centred, loosen the nuts and perform the operation again. D O NOT ADJUST THE LOCKNUTS YOU MAY DAMAGE THE BEARINGS Adjust your brake again (see Chapter 2.3.1). Manuel CARLINA – FACELIA – LINARIA... -
Page 11: Rear Wheel
NB: the connector is equipped with a keyed connection. Place the two pins so that they are facing each other (follow the arrows). Position the two pins correctly to reconnect the motor plug Adjust the brake pads (see Chapter 2.3.1). Manuel CARLINA – FACELIA – LINARIA... -
Page 12: Lights
Controlling the display of Controlling the display of the CARLINA et FACELIA the LINARIA A LWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION L IGHTS ARE OBLIGATORY AT NIGHT Manuel CARLINA – FACELIA – LINARIA... -
Page 13: Using The E-Bike
Positions 5 = maximum power. On this position, your e-bike provides you with the most assistance but also consumes the most energy. To scroll through the assistance levels, press the + and - buttons. The power-assistance selector is on the display. Manuel CARLINA – FACELIA – LINARIA... -
Page 14: Display
Resetting the route information (km travelled, average speed, max speed): When TRIP mode is selected. A long press on DOWN and MODE simultaneously resets the trip data. Manuel CARLINA – FACELIA – LINARIA... -
Page 15: Operation Of The Display (Carlina Et Facelia)
Data : TRIP or ODO or RANGE or TIME or POWER Button ON/OFF Turns system on and off (Press for 3 secs) Increases the level of support Button « M » Decrease the level of (MODE) assistance Manuel CARLINA – FACELIA – LINARIA... - Page 16 Travel time: A short press on the " M " (MODE) button allows you to select the data to be displayed: TRIP/ ODO/ RANGE/ TIME/ POWER. Press the "Time" button to display your current travel time. Manuel CARLINA – FACELIA – LINARIA...
-
Page 17: Electric Assistance
(even if slight), your battery life is increased. If you are ascending inclines of more than 5% (the motor “struggles" above a grade of 8%), your battery life will diminish proportionally. Manuel CARLINA – FACELIA – LINARIA... -
Page 18: Technical Specifications Of The Power-Assistance System
25,000 kilometres, we advise you to get it checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. Electric Motor Manuel CARLINA – FACELIA – LINARIA... -
Page 19: Charging The Battery
This charging time, referred to as “slow”, is deliberate in order to preserve the life of your battery. It is easy to operate: plug the charger’s output jack into your battery’s socket, then plug it into the mains. Connect the charger plug to the battery first and then to the mains. Manuel CARLINA – FACELIA – LINARIA... -
Page 20: Precautions (Safety Instructions)
OR YOUR SAFETY ALSO LOOK AT THE PICTOGRAMS ON THE BACK OF THE CHARGER 1) Compliance with CR standards 2) Double insulation 3) Do not throw out with household waste 4) Comply with the polarity Manuel CARLINA – FACELIA – LINARIA... -
Page 21: Battery
For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). Check that the charger is working correctly (see section 4.1). Manuel CARLINA – FACELIA – LINARIA... -
Page 22: Battery Performance For Electric Bikes
A normal battery is designed to retain at least 70% of its original capacity after 2 years of use or 500 full charge cycles under normal conditions of use and approximately 50% after 5 years (follow the recommendations given in the manual). Manuel CARLINA – FACELIA – LINARIA... -
Page 23: Recommendations / Precautions To Take With Your Battery
Also read carefully the indications listed on the battery's sticker: The battery provided with your e-bike conforms with: • The standards EN61000-6-1 et EN61000-6-3; • The UN38.3 directive on the transport of dangerous goods; • Directive 2006/66/EC; Manuel CARLINA – FACELIA – LINARIA... -
Page 24: Tips For Increasing The Battery Life Per Charge
• To prolong battery power: start up in position 1. Once your bike has started, set your assistance level and select a high gear. Maintain a constant speed. Your battery charge will last longer. Manuel CARLINA – FACELIA – LINARIA... -
Page 25: Upkeep And Maintenance
O NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES OR ON THE FRONT AND REAR BRAKE SHOES C HECK THE CONDITION AND CORRECT FUNCTIONING OF THE LIGHTS BULBS AND CLEAN THEM IF NECCESSARY WITH A DRY CLOTH Manuel CARLINA – FACELIA – LINARIA... -
Page 26: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is advisable when riding in rural areas, in traffic at night, or on days when the visibility is poor. Manuel CARLINA – FACELIA – LINARIA... -
Page 27: Technical Data
(number of teeth on sprockets) (Norton: 14,16,18,21,24,28) DECLARATION OF CE CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ CERTIFICATE OF CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ TERMS OF WARRANTY For any further information about warranty, please contact your store Manuel CARLINA – FACELIA – LINARIA... - Page 28 ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.com SAS au capital de 1 200 000 € - RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183 Manuel CARLINA – FACELIA – LINARIA...
