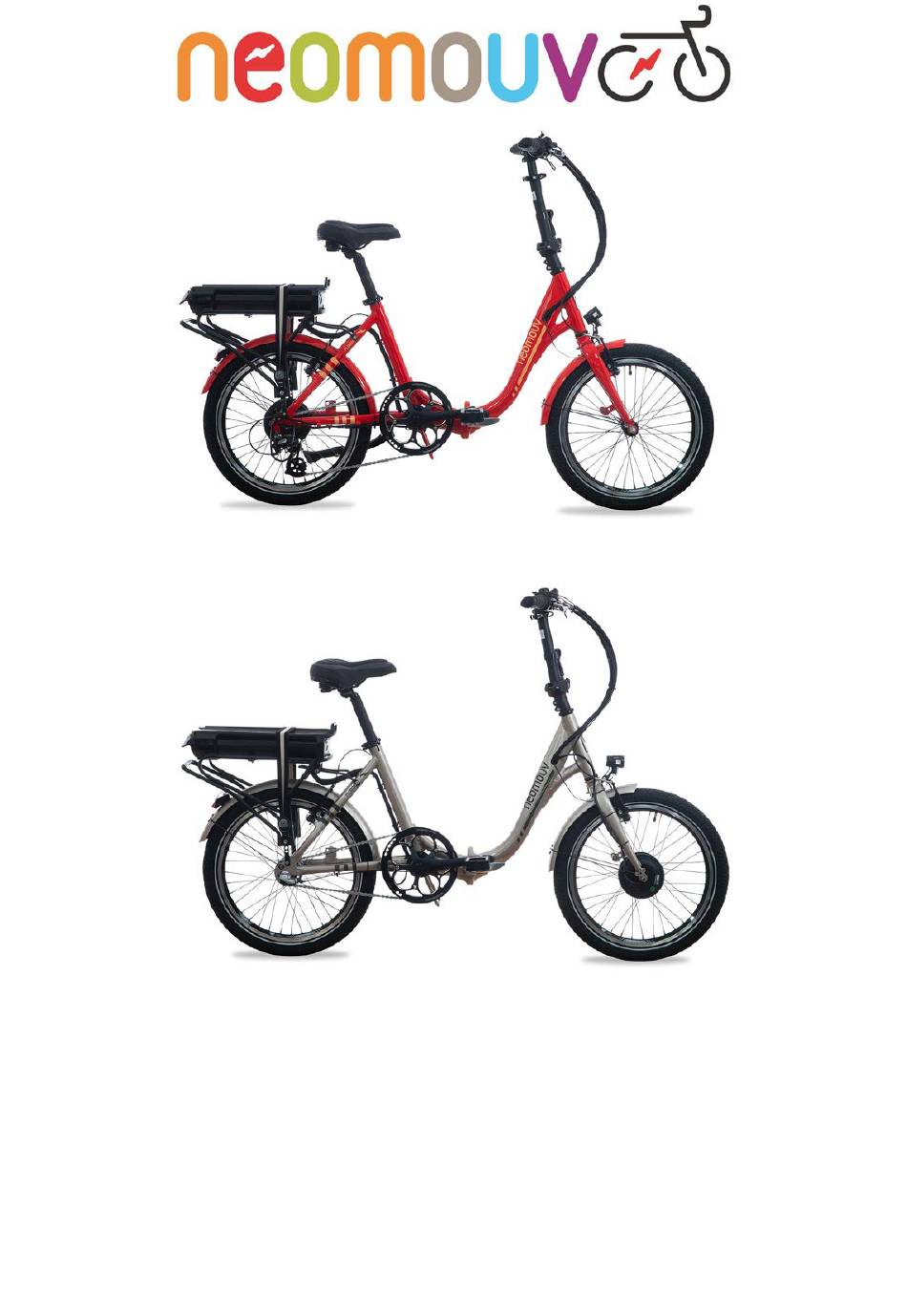

- Page 1 PLIMOA PLIMOA N3 USER MANUAL THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety requirements Product may differ from photos...
-
Page 2: Table Of Contents
V-type front brake: ......................... 6 2.3.2 Rear v-type brake: .......................... 7 2.4 Adjusting the Nexus 3 (Plimoa N3) speed settings: .................. 7 Rack: ............................... 8 Mounting and dismounting the wheels (rear wheels to be handled by a specialist): ....8 2.6.1... -
Page 3: 1- Presentation
1- PRESENTATION: Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) E-Bike Presentation: Gauge Controller Battery Rack (max. load 25 kg) Electric motor (or front hub for the N3) Pedal sensor Notes: The symbol indicates important advice or essential safety measures. Follow the various instructions. -
Page 4: 2- Adjustments/Assembly
Raise or lower the saddle to get the correct height. While pedalling backwards, you should not have to move your hips from side to side. Tighten the quick-release clamp. PLIMOA - PLIMOA N3 Manual... -
Page 5: Adjusting The Handlebars
To adjust the angle, use an Allen key to loosen the 4 bolts on the stem. Bolts for adjusting the angle of the handlebars After adjusting the angle, tighten the bolts by turning them clockwise (max. tightening torque: 6 Nm). PLIMOA - PLIMOA N3 Manual... -
Page 6: Adjusting The Brakes
(a distance of about 0.1 to 0.5 mm from the wheel rim). The adjustment has been performed correctly when the wheel turns freely and stops smoothly. PLIMOA - PLIMOA N3 Manual... -
Page 7: Rear V-Type Brake
IN WET WEATHER OR ON DAMP GROUND THE BRAKING DISTANCE INCREASES Adjusting the 3-speed Nexus (Plimoa N3): The Nexus should be adjusted by a specialist. In theory, the Nexus does not require any maintenance, but the cable may gradually slacken. PLIMOA - PLIMOA N3 Manual... -
Page 8: Rack
(max. tightening torque 25 Nm). If the wheel is not centred, loosen the nuts and repeat the operation. D O NOT DISPLACE THE LOCKNUTS YOU MAY DAMAGE THE BEARINGS Adjust your brake again (see section 2.3.1). PLIMOA - PLIMOA N3 Manual... -
Page 9: Rear Wheel (Plimoa)
NB: the connector is equipped with a keyed connection. Place the two pins so that they are facing each other to reconnect the motor correctly (follow the arrows). Position the two pins correctly to reconnect the motor plug Adjust the brake pads (see section2.3.1). PLIMOA - PLIMOA N3 Manual... -
Page 10: Front Wheel (Plimoa N3)
Screw on the wheel nuts on both sides without tightening them. Check the positioning, centring, and position of the chain again. Alternately and progressively tighten the wheel nuts on each side (max. tightening torque 25 Nm). PLIMOA - PLIMOA N3 Manual... -
Page 11: Lights
Fixed front and rear lighting: The front and rear lights are powered by the battery. The lights are activated by pressing the UP and MODE buttons on the control pad simultaneously. A LWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION L IGHTS ARE OBLIGATORY AT NIGHT PLIMOA - PLIMOA N3 Manual... -
Page 12: Folding The E-Bike
2. Fold the pedals (by pushing them up). 3. Fold your stand. You must first deactivate the safety catch. 4. Folding the frame: The frame is now unlocked and First turn the safety catch Then turn the quick-release can be folded clamp PLIMOA - PLIMOA N3 Manual... - Page 13 Under no circumstances can the manufacturer be held responsible for any incident or accident incurred by people as a result of faulty assembly on the part of the user (whether owner or not of the e-bike). PLIMOA - PLIMOA N3 Manual...
-
Page 14: Using The E-Bike
Position 5 = maximum power. On this position, your e-bike provides you with the most power assistance but also consumes the most energy. To scroll through the assistance levels, press the UP and DOWN buttons. The power selector is located close to the left handle on the handlebar. Assistance level PLIMOA - PLIMOA N3 Manual... -
Page 15: Display And Controls
Speed information: Pressing and holding the UP button allows you to select the desired speed information: instantaneous, average (avg) or maximum (max). Night mode: Pressing and holding the UP and MODE buttons simultaneously will switch the backlighting on the display on and off. PLIMOA - PLIMOA N3 Manual... - Page 16 Press and hold the MODE button to accept your changes and return to normal mode. Reset trip information (km travelled, average speed, maximum speed): After selecting the TRIP mode, press and hold DOWN and MODE simultaneously to reset the trip data to zero. PLIMOA - PLIMOA N3 Manual...
-
Page 17: Electric Assistance
(10 to 20% slopes). If your travel is on flat ground and includes a number of descents (even if slight), your battery life is increased. If you are ascending inclines of more than 5% (the motor “struggles" above a grade of 8%), your battery life will diminish proportionally. PLIMOA - PLIMOA N3 Manual... -
Page 18: Technical Specifications Of The Power-Assistance System
3.4.5 The electric motor: Located in the hub of the rear wheel (PLIMOA) or the front wheel (PLIMOA N3) is a 250-watt BRUSHLESS electric motor. It requires no maintenance on your part and has the benefit of a two-year manufacturer's warranty. -
Page 19: Charging The Battery
This charging time, referred to as “slow”, is deliberate in order to preserve the life of your battery. It is easy to operate: plug the charger’s output jack into your battery’s socket, then plug it into the mains. Connect the charger’s plug to the battery first and then to the mains PLIMOA - PLIMOA N3 Manual... -
Page 20: Precautions (Safety Instructions)
OR YOUR SAFETY ALSO LOOK AT THE PICTOGRAMS ON THE BACK OF THE CHARGER 1) Compliance with CE standards 2) Double insulation 3) Do not throw out with household waste 4) Comply with the polarity PLIMOA - PLIMOA N3 Manual... -
Page 21: Battery
For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). Check that the charger is working correctly (see section 4.1). PLIMOA - PLIMOA N3 Manual... -
Page 22: Recommendations / Precautions To Take With Your Battery
Your battery is recyclable after use. Return it to your dealer. Also read carefully the indications listed on the battery: The battery provided with your e-bike conforms with: • Standards EN61000-6-1 et EN61000-6-3; • Directive UN38.3 on the transport of dangerous goods; Directive 2006/66/EC. • PLIMOA - PLIMOA N3 Manual... -
Page 23: Advice For Increasing Battery Life Per Charge
5 – ADVICE FOR INCREASING BATTERY LIFE PER CHARGE: Depending on the battery in your Plimoa or Plimoa N3, the charged battery range is 70 to 80 km (480 Wh battery) or 80 to 100 km (580 Wh battery), 100 to 110 km (630 Wh battery) or 110 to 130 km (700 Wh battery) for a user weighing 75 kg at a an average speed of 18 km/h on a journey in Eco mode. -
Page 24: Upkeep And Maintenance
O NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES OR ON THE FRONT AND REAR BRAKE SHOES C HECK THE CONDITION AND CORRECT FUNCTIONING OF THE SIGNALLING DEVICES BULBS CLEAN THEM IF NECESSARY WITH A DRY CLOTH PLIMOA - PLIMOA N3 Manual... -
Page 25: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is mandatory when riding in traffic at night, or on days when the visibility is poor. PLIMOA - PLIMOA N3 Manual... -
Page 26: Technical Data
Shimano Nexus hub with 3 speeds Chainring (number of teeth) 9 - DECLARATION OF CE CONFORMITY Available on our website, under the heading “Downloads” 10 - CERTIFICATE OF CONFORMITY Available on our website, under the heading “Downloads” PLIMOA - PLIMOA N3 Manual... -
Page 27: Terms Of Warranty
The warranty does not cover parts that are cracked or broken or show traces of visible impact WARNING! Do not confuse maintenance and warranty. Maintenance overhauls and adjustments cannot be carried out for free under warranty. Fill out your CERTIFICATE OF WARRANTY ON OUR WEBSITE www.neomouv.fr PLIMOA - PLIMOA N3 Manual... - Page 28 SAS NEOMOUV ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000- RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183...
