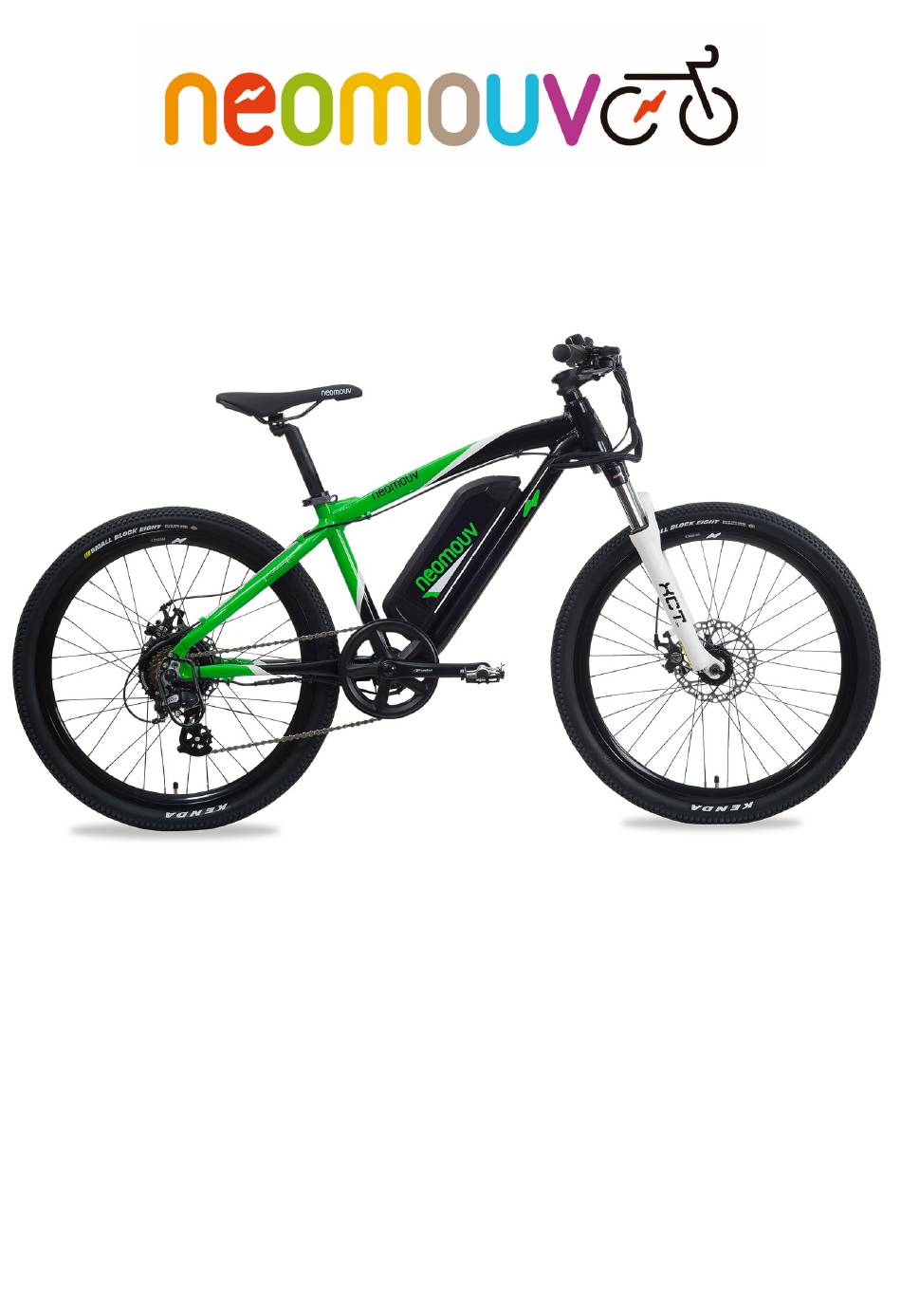

USER MANUAL
CROONY
THIS MANUAL CONTAINS IMPORTANT
SAFETY AND OPERATING INSTRUCTIONS
Model conforms to safety requirements
Product may differ from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CROONY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for neomouv CROONY

  • Page 1 USER MANUAL CROONY THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety requirements Product may differ from photos...
  • Page 2: Table Of Contents

    Performance:........................... 13 3.4.3 Technical specifications of the power-assistance system:.............. 14 The electric motor: ..........................14 CHARGING THE BATTERY: ......................15 NEOMOUV Lithium Ion 36-volt charger ................... 15 4.1.1 Precautions (safety instructions): ....................16 4.1.2 Protecting the charger: ........................16 Battery ..............................17 4.2.1...
  • Page 3: Presentation

    PRESENTATION Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) E-Bike Presentation: Display Battery Controller Electric motor Rotation sensor Notes: The symbol  indicates important advice or essential safety measures. Follow the various instructions. • • Some adjustment and assembly/disassembly operations require special tools and expertise; perform these only if you have the skills to do so, otherwise consult your authorised dealer or a specialist.
  • Page 4: Adjustments/Assembly

    The required user (cyclist) height for optimal utilisation of the bike ranges from 1.30 to 1.60 m. Adjust your saddle height to the optimal sitting position as follows: Loosen the quick-release seat clamp. Quick-release clamp CROONY Manual...
  • Page 5: Adjusting The Fork

    The minimum height between the highest point of the saddle and the ground is 85 cm. 2.2 Adjusting the fork The Croony’s fork is adjustable and lockable. Locking is done using the blue thumbwheel at the top of the fork. Suspension firmness is adjusted using the thumbwheel on the other shoulder of the fork.
  • Page 6: Adjusting The Brakes

    2.3 Adjusting the brakes: The Croony is equipped with front and rear mechanical disc brakes. The maintenance of this system must be carried out by a specialist. However, here are a few tips: Periodically check the condition of the lining on the brake pads. It is important to avoid leaving this until the last minute as if the lining is damaged, the disc rubs against the metal of the pads, which damages them.
  • Page 7: Mounting And Dismounting The Wheels

    Remove the right and left wheel nut covers. Loosen the nuts. Remove the nuts and the wheel axel washers. Move the wheel forward to remove it from the frame and remove the chain from the wheel axle. Insert a piece of plastic in the calliper (between the two pads). CROONY Manual...
  • Page 8 Reconnect the motor and replace the Colson cable tie on the frame (if necessary). NB: the connector is equipped with a keyed connection. Place the two pins so that they are facing each other (follow the arrows) to reconnect the motor correctly. CROONY Manual...
  • Page 9: Lights

     A battery-operated rear red light (2 x LR03 batteries) which is activated by a switch on the bottom of the light.  A LWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION  L IGHTS ARE OBLIGATORY AT NIGHT CROONY Manual...
  • Page 10: Using The E-Bike

    Position 5 = maximum power. On this position, your e-bike provides you with the most assistance but also consumes the most energy. To scroll through the assistance levels, press the UP and DOWN buttons. The power selector is located close to the left handle on the handlebar. Assistance level CROONY Manual...
  • Page 11: Display And Controls

    Speed information: Pressing and holding the UP button allows you to select the desired speed information: instantaneous, average (avg) or maximum (max). Night mode: Pressing and holding the UP and MODE buttons simultaneously will switch the backlighting on the display on and off. CROONY Manual...
  • Page 12 Press and hold the MODE button to accept your changes and return to normal mode. Reset trip information (km travelled, average speed, maximum speed): After selecting the TRIP mode, press and hold Down and MODE simultaneously to reset the trip data to zero. CROONY Manual...
  • Page 13: Electric Assistance

    (10 to 20% slopes). If your travel is on flat ground and includes a number of descents (even if slight), your battery life is increased. If you are ascending inclines of more than 5% (the motor “struggles" above a grade of 8%), your battery life will diminish proportionally. CROONY Manual...
  • Page 14: Technical Specifications Of The Power-Assistance System

    After 3 years or 25,000 kilometres, we advise you to get it checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. Electric motor CROONY Manual...
  • Page 15: Charging The Battery

    CHARGING THE BATTERY: 4.1 NEOMOUV Lithium Ion 36-volt charger CHARGER FEATURES 36-volt model STC-8127LC Smart charger for a Lithium Ion battery Voltage AC220 -240 V Frequency 50-60 Hz Charging voltage (load) 42 V Output current 2.0 A LED power indicator: red...
  • Page 16: Precautions (Safety Instructions)

    ONTACT YOUR DEALER SHOULD ANY FAULTS OCCUR WITH YOUR CHARGER  For your safety, also look at the pictograms on the back of the charger. 1) Compliance with CR standards 2) Double insulation 3) Do not throw out with household waste 4) Comply with the polarity CROONY Manual...
  • Page 17: Battery

    For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the mains (220V/50 Hz). Check that the charger is working correctly (see section 4.1). CROONY Manual...
  • Page 18: Recommendations / Precautions To Take With Your Battery

    SUBSTANCES THAT ARE HARMFUL TO THE ENVIRONMENT AND HUMAN HEALTH AND THEREFORE MUST BE RECYCLED Also read carefully the indications listed on the battery: The battery provided with your e-bike conforms with: • Standards EN61000-6-1 et EN61000-6-3; • Directive UN38.3 on the transport of dangerous goods; • Directive 2006/66/EC. CROONY Manual...
  • Page 19: Upkeep And Maintenance

     Do not use lubricants on the surface of the wheel rims or on the tyres, or on the front and rear brake shoes.  Check the condition and correct functioning of the signalling devices (e.g., bulbs, etc.), and clean them if necessary with a dry cloth. CROONY Manual...
  • Page 20: Tips For Increasing The Battery Life Per Charge

    TIPS FOR INCREASING THE BATTERY LIFE PER CHARGE: Depending on the battery in your Croony, the battery-life range is 60 to 70km (320Wh battery) or 70 to 80 km (480 Wh battery) for a user weighing 75 kg at an average speed of 18 km/h on a journey in Eco mode.
  • Page 21: Safety - Recommendations

    For your safety, it is recommended to routinely have the bike lights on. Wearing a helmet is obligatory for children under the age of twelve. Wearing a high-visibility vest is mandatory when riding in rural areas, in traffic at night, or on days when the visibility is poor. CROONY Manual...
  • Page 22: Technical Data

    36 V Motor: Brushless Nominal yield (w) 250 watts Charger voltage 42 V Tyre dimensions Tyre pressure 2 and 3 bars Chainring (number of teeth) Development 14, 16, 18, 20, 22, 24, 28 (number of teeth on the sprockets) CROONY Manual...
  • Page 23: Declaration Of Ce Conformity

    DECLARATION OF CE CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 10 - CERTIFICATE OF CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 11 - TERMS OF WARRANTY For any further information about warranty, please contact your store. CROONY Manual...
  • Page 24 ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000 € - RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183 CROONY Manual...
