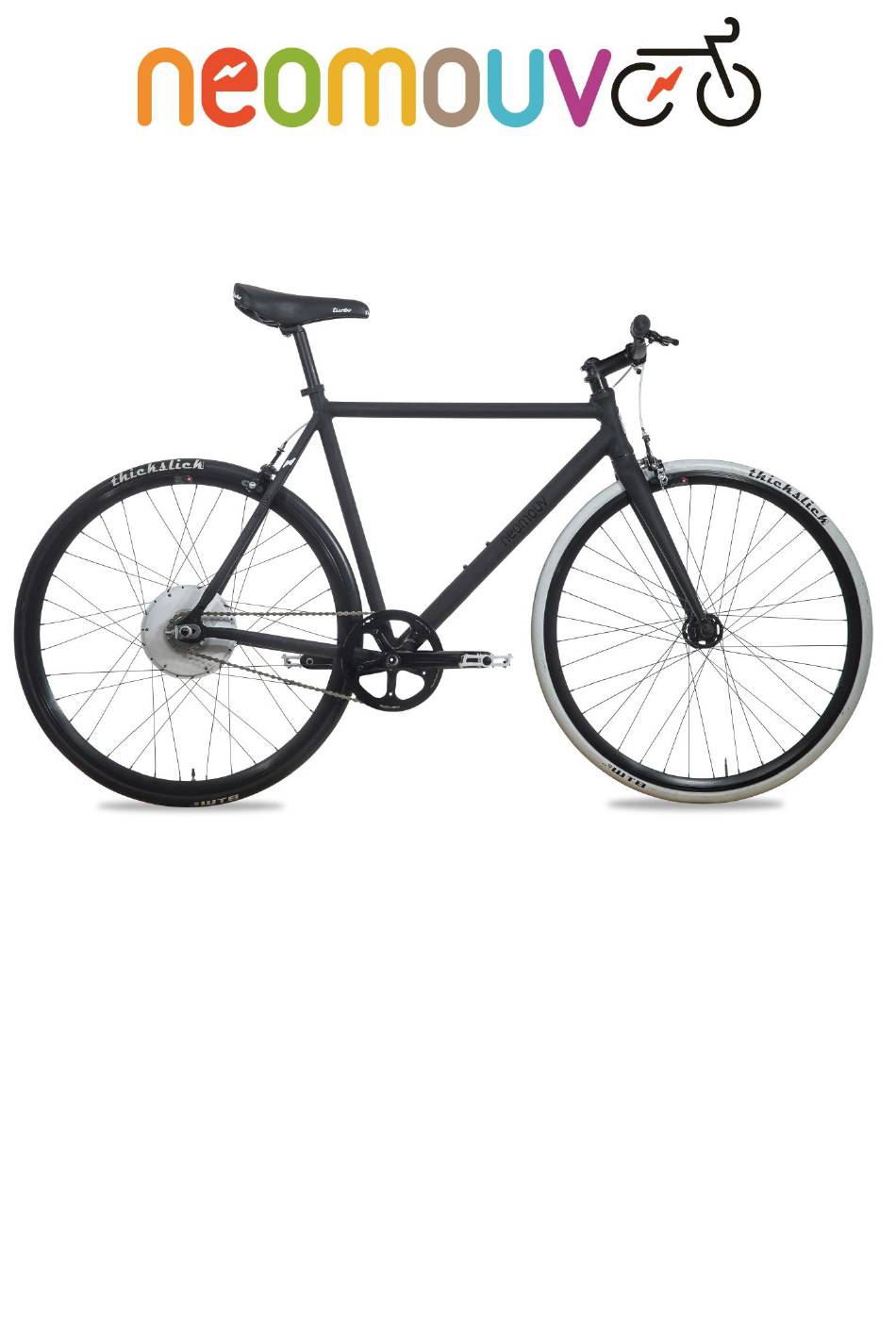

- Page 1 USER MANUAL FURTIVOO THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety requirements Product may differ from photos...
-
Page 2: Table Of Contents
Maintenance: ............................14 7 - SAFETY – RECOMMENDATIONS: ................... 15 8 – TECHNICAL DATA ......................16 9 - DECLARATION OF CE CONFORMITY ................17 10 - CERTIFICATE OF CONFORMITY .................. 17 11 – TERMS OF WARRANTY ....................17 FURTIVOO Manual... -
Page 3: 1-Presentation
1-PRESENTATION: Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) E-Bike Presentation: Battery integrated into electric motor with torque sensor Notes: • The symbol indicates important advice or essential safety measures. Follow the various instructions. • Some adjustment and assembly/disassembly operations require special tools and expertise; perform these only if you have the skills to do so, otherwise consult your authorised dealer or a specialist. -
Page 4: 2- Adjustments/Assembly
Without applying too much pressure, place a pole or stick at horizontally at groin height and then measure the height from the stick to the ground. This will give you the IL (inside leg) measurement. Tighten the seat clamp (6 Nm). FURTIVOO Manual... -
Page 5: Adjusting The Handlebars
You can adjust the angle of your handlebars using the four bolts located at the centre of them. Max. tightening torque: 6 Nm. Handlebars Stem Check the correct alignment of your handlebars with your wheel using the 2 nuts on the stem (6 Nm). FURTIVOO Manual... -
Page 6: Adjusting The Brake Cables
Insert the wheel into the fork, making sure that the washers are facing outwards. Tighten the right and left hub nuts. Once the wheel is in place, reposition the brake pads by swinging the lever downwards. Finally, check that the wheel brakes are working properly. FURTIVOO Manual... -
Page 7: Rear Wheel
Retighten the right and left hub nuts. Reposition the brake pads by swinging the lever downwards. 1 cm of play THE CHAIN MUST NOT BE TOO TAUT, LEAVE 1 COM OF VERTICAL PLAY WHEN ADJUSTING THE CHAIN TENSIONERS. FURTIVOO Manual... -
Page 8: Lights
❖ A battery-operated rear red light (2 x LR03 batteries) which is activated by a switch on the bottom of the light. A LWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION L IGHTS ARE OBLIGATORY AT NIGHT FURTIVOO Manual... -
Page 9: Using The E-Bike
Pedal until you reach the speed of 8 km/h, then backpedal 3 times to activate power assistance. The single-speed system makes using the Furtivoo intuitive (no gear shifting). In addition, your bike can be ultra-connected if you use the Bitride app. This allows you to manage your settings via Bluetooth using your smartphone as the display. -
Page 10: Performance
(10 to 20% slopes). If your travel is on flat ground and includes a number of descents (even if slight), your battery life is increased. If you are ascending inclines of more than 5% (the motor “struggles" above a grade of 8%), your battery life will diminish proportionally. FURTIVOO Manual... -
Page 11: Technical Specifications Of The Power-Assistance System
After 3 years or 25,000 kilometres, we advise you to get it checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. Electric motor FURTIVOO Manual... -
Page 12: Charging The Battery
Avoid leaving the charger connected to the mains for more than 24 hours. WARNING! F – OR YOUR SAFETY OPENING THE CHARGER IS PROHIBITED RISK OF ELECTRIC SHOCK HIGH ). C VOLTAGE ONTACT YOUR DEALER SHOULD ANY FAULTS OCCUR WITH YOUR CHARGER FURTIVOO Manual... -
Page 13: The Battery
COLLECTION SYSTEM FOR THIS TYPE OF PRODUCT HAS BEEN SET UP IN MOST TOWNS YOU CAN CONTACT YOUR LOCAL COUNCIL FOR FURTHER INFORMATION LECTRICAL AND ELECTRONIC PRODUCTS CONTAIN TOXIC SUBSTANCES THAT ARE HARMFUL TO THE ENVIRONMENT AND HUMAN HEALTH AND THEREFORE MUST BE RECYCLED FURTIVOO Manual... -
Page 14: Tips For Increasing The Battery Life Per Charge
O NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES OR ON THE FRONT AND REAR BRAKE SHOES C HECK THE CONDITION AND CORRECT FUNCTIONING OF THE SIGNALLING DEVICES BULBS CLEAN THEM IF NECESSARY WITH A DRY CLOTH FURTIVOO Manual... -
Page 15: Safety - Recommendations
For your safety, it is recommended to routinely have the bike lights on. We strongly recommend that you wear a helmet. Wearing a high-visibility vest is mandatory when riding in traffic at night, or on days when the visibility is poor. FURTIVOO Manual... -
Page 16: Technical Data
Lithium Ion 1000 cycles Voltage 29.6 V Motor: Zehus AIO Nominal yield 250 watts Charger voltage 31.2 V Tyre dimensions 700C Tyre pressure 7 to 8 bars Development (number of teeth on the sprockets) Chainring (number of teeth) FURTIVOO Manual... -
Page 17: Declaration Of Ce Conformity
9 - DECLARATION OF CE CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 10 - CERTIFICATE OF CONFORMITY Available on our website: www.neomouv.com/fr/telechargement/ 11 – TERMS OF WARRANTY For any further information about warranty, please contact your store. FURTIVOO Manual... - Page 18 SAS NEOMOUV ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000- RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183...
